Brother DCP-8150DN Service Manual

5-13
Confidential
1.3.8 Check control panel button operation (function code: 13)
<Function>
This function is used to check that the buttons on the control panel operate normally.
<Operation Procedure>
(1) Press the [1] and [3] buttons in this order in the initial state of maintenance mode. "00" is
displayed on the LCD.
(2)
Press the buttons on the control panel according to the numbers provided on the figure below.
Each time the button is pressed, the corresponding figure is displayed on the LCD in
decimal notation. Check that the number displayed on the LCD matches the number
assigned to the button that has been pressed.
If the buttons are pressed in the incorrect order, "INVALID OPERATE" is displayed on the
LCD. Press the [Stop/Exit] button, and then press the correct button.
(3) When button operation is normal, the machine returns to the initial state of maintenance
mode when the last button is pressed.
To cancel operation and return to the initial state of maintenance mode, press the
[Stop/Exit] button.

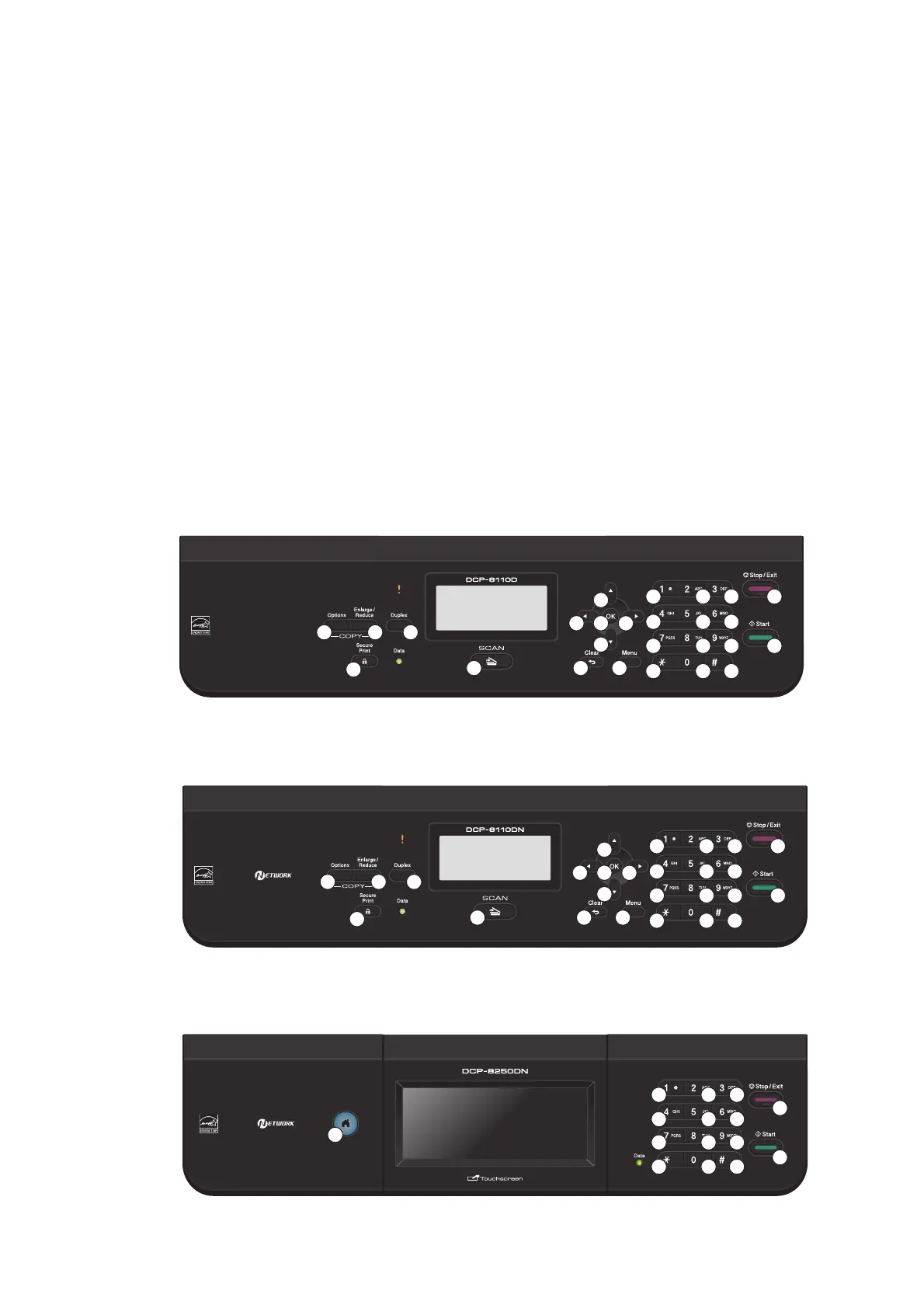

 DCP-8110D
Fig. 5-5
 DCP-8110DN/8150DN/8152DN/8155DN/8157
Fig. 5-6
 DCP-8250DN
Fig. 5-7
1 2
3
5
9
6 10
8
7
11 12
13
16
19
22
15
18
21
25
26
24
14
17
20
23
4
1 2
3
5
9
6 10
8
7
11 12
13
16
19
22
15
18
21
25
26
24
14
17
20
23
4
1
2
5
8
11
4
7
10
14
15
13
3
6
9
12

Brother DCP-8150DN Specifications

General

Duplex printing	Yes
Print technology	Laser
Maximum resolution	1200 x 1200 DPI
Time to first page (black, normal)	8.5 s
Print speed (black, normal quality, A4/US Letter)	40 ppm
Duplex print speed (black, normal quality, A4/US Letter)	9 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 600 DPI
Maximum number of copies	99 copies
Time to first copy (black, normal)	10.5 s
Scan to	E-mail, File, FTP, Image, OCR, USB
Scan drivers	ICA, TWAIN, WIA
Scanner type	Flatbed & ADF scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	Legal (216 x 356) mm
Output color depth	24 bit
Maximum scan resolution	19200 x 19200 DPI
Faxing	No
Printing colors	Black
Maximum duty cycle	50000 pages per month
Recommended duty cycle	500 - 3500 pages per month
Number of print cartridges	1
Page description languages	BR-Script 3, Epson FX, IBM ProPrinter, PCL 6
Total input capacity	250 sheets
Total output capacity	150 sheets
Multi-Purpose tray input capacity	50 sheets
Custom media width	76.2 - 215.9 mm
Maximum print size	216 x 356 mm
Custom media length	127 - 355.6 mm
Paper tray media types	Bond paper, Envelopes, Labels, Plain paper, Recycled paper, Thick paper, Thin paper
Paper tray media weight	60 - 105 g/m²
Non-ISO print media sizes	Executive (184 x 267mm), Folio (media size), Legal (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
ISO B-series sizes (B0...B9)	B5, B6
JIS B-series sizes (B0...B9)	B5
Duplex media weight (imperial)	16 - 28 lbs
Maximum ISO A-series paper size	A4
Multi-Purpose Tray media weight	60 - 163 g/m²
Paper tray media weight (imperial)	16 - 43 lbs
Display	LCD
Market positioning	Business
Display number of lines	5 lines
Display number of characters	22
Standard interfaces	USB 2.0
USB 2.0 ports quantity	USB 2.0 ports have a data transmission speed of 480 Mbps, and are backwards compatible with USB 1.1 ports. You can connect all kinds of peripheral devices to them.
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Maximum internal memory	320 MB
Sound power level (standby)	37 dB
Sound pressure level (printing)	59 dB
Sound pressure level (quiet mode)	54 dB
AC input voltage	100 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (standby)	1.4 W
Power consumption (PowerSave)	8.1 W
Power consumption (average operating)	702 W
Package depth	533.4 mm
Package width	594.36 mm
Package height	604.52 mm
Package weight	19800 g
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2003, Windows Server 2008
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Premium, Windows 7 Professional, Windows 7 Starter, Windows 7 Ultimate, Windows Vista Business, Windows Vista Enterprise, Windows Vista Home Basic, Windows Vista Home Premium, Windows Vista Ultimate, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	ENERGY STAR
Storage temperature (T-T)	0 - 40 °C
Operating temperature (T-T)	10 - 32.5 °C
Storage relative humidity (H-H)	10 - 90 %
Operating relative humidity (H-H)	20 - 80 %

Weight and Dimensions

Depth	414.02 mm
Width	490.22 mm
Height	447.04 mm
