Brother DCP-J152W Service Manual

3-56
Confidential

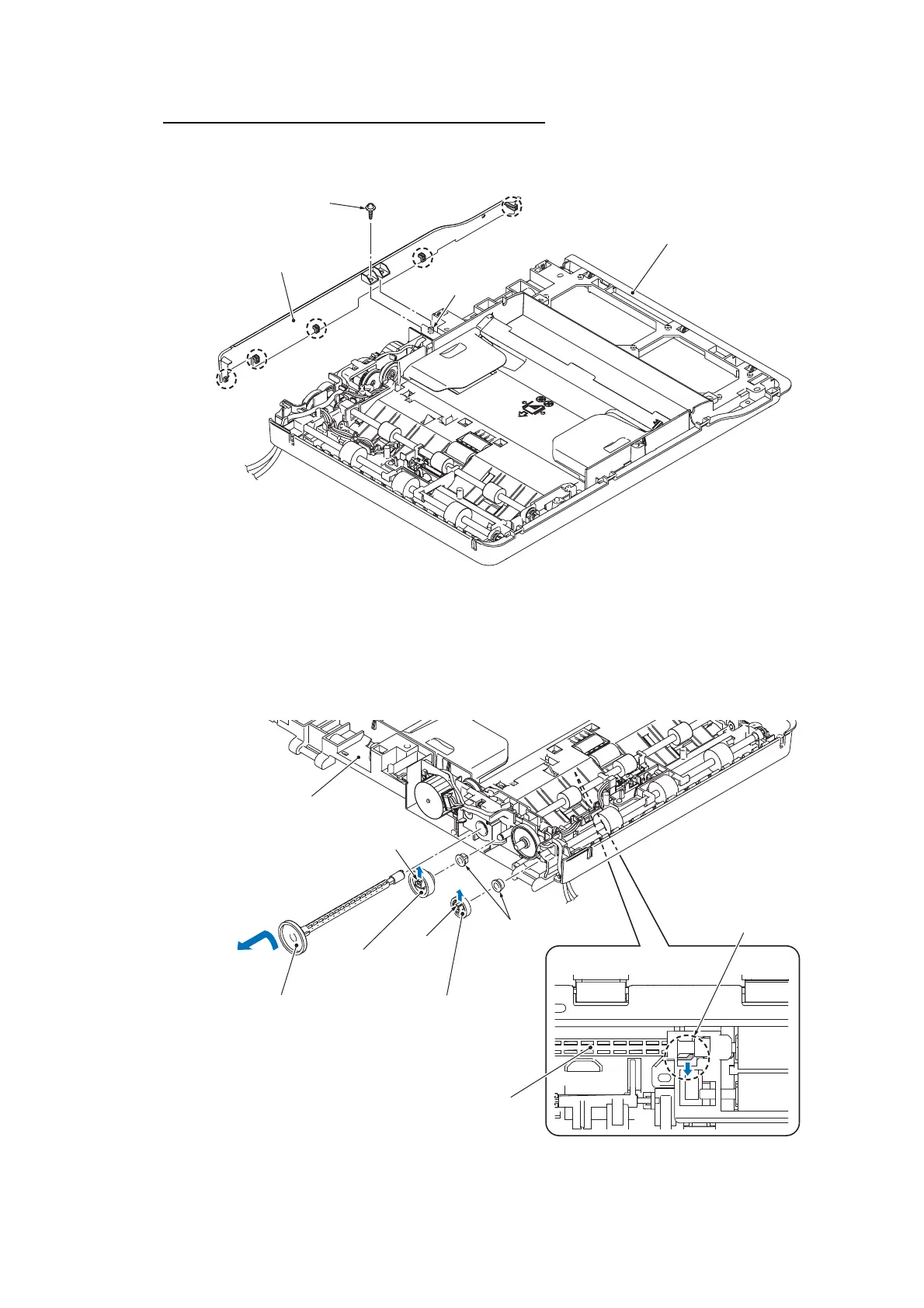

ADF back cover / Document separate roller ASSY
(16)Remove the screw from the TAPTITE CUP B M3x10, release the boss, and release
the five hooks to remove the ADF back cover.
(17)
Open the latch from the outside and remove the Document feed roller 1 gear. Release
the latch at the back of the ADF unit and pull out the Document separation roller gear
(outside) by turning it.
(18)Release the latch and Document feed roller 2 gear.
(19)Remove all bearings from Document feed roller 1 and 2.
Assembling Note Attach the gears as shown in Section 6 in this chapter.
(3_074)
ADF back cover
ADF unit
Boss
Hook
Hook
Hook
Hook
TAPTITE CUP B
M3x10
(Front)
(Left)
(3_075)
ADF unit
Latch
Latch
Document separation
roller gear (outside)
Bearing
Document feed
roller 2 gear
Document feed
roller 1 gear
(Rear)
(Left)
Latch
Document separation
roller gear (outside)

Brother DCP-J152W Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (ISO/IEC 24734) mono	11 ipm
Print speed (ISO/IEC 24734) color	6 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 1200 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	4.4 cpm
Copy speed (color, normal quality, A4)	2.7 cpm
Scan to	Cloud, E-mail, File, Image
Maximum scan area	A4 (210 x 297) mm
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15 cm
Maximum print size	210 x 297 mm
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, L, Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Borderless printing media sizes	10x15, 2L, A4, A6, Index card, L, Letter
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black
Built-in display	Yes
Market positioning	Home & office
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Online services supported	Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Processor family	RISC
Sound pressure level (printing)	50 dB
Power consumption (off)	0.2 W
Power consumption (standby)	3 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	16 W
Scan speed	3.37 sec/page
Package depth	229 mm
Package width	478 mm
Package height	456 mm
Package weight	8400 g
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	374 mm
Width	410 mm
Height	161 mm
