Brother DCP-J152W Service Manual

5-43
Confidential
1.4.22 Updating of Head Property Data (Maintenance mode 68)
<Function>
To maintain print quality, the machine optimizes the drive conditions of individual Head/
carriage units according to their property data.
Head property data is stored in the EEPROM on the main PCB and its property code is
printed on the head property labels attached to the Head/carriage unit.
If you replace the Head/carriage unit, you need to enter its property code printed on the
new head property label (pasted on the spare part), following the procedure below using
maintenance code 68.
<Operating Procedure>
(1) Enter [6] and [8] in the initial stage of the maintenance mode.
(2) Enter [2], [5], [8], and [0].
The current property data stored in the EEPROM appears on the LCD and the
machine is ready for entry.

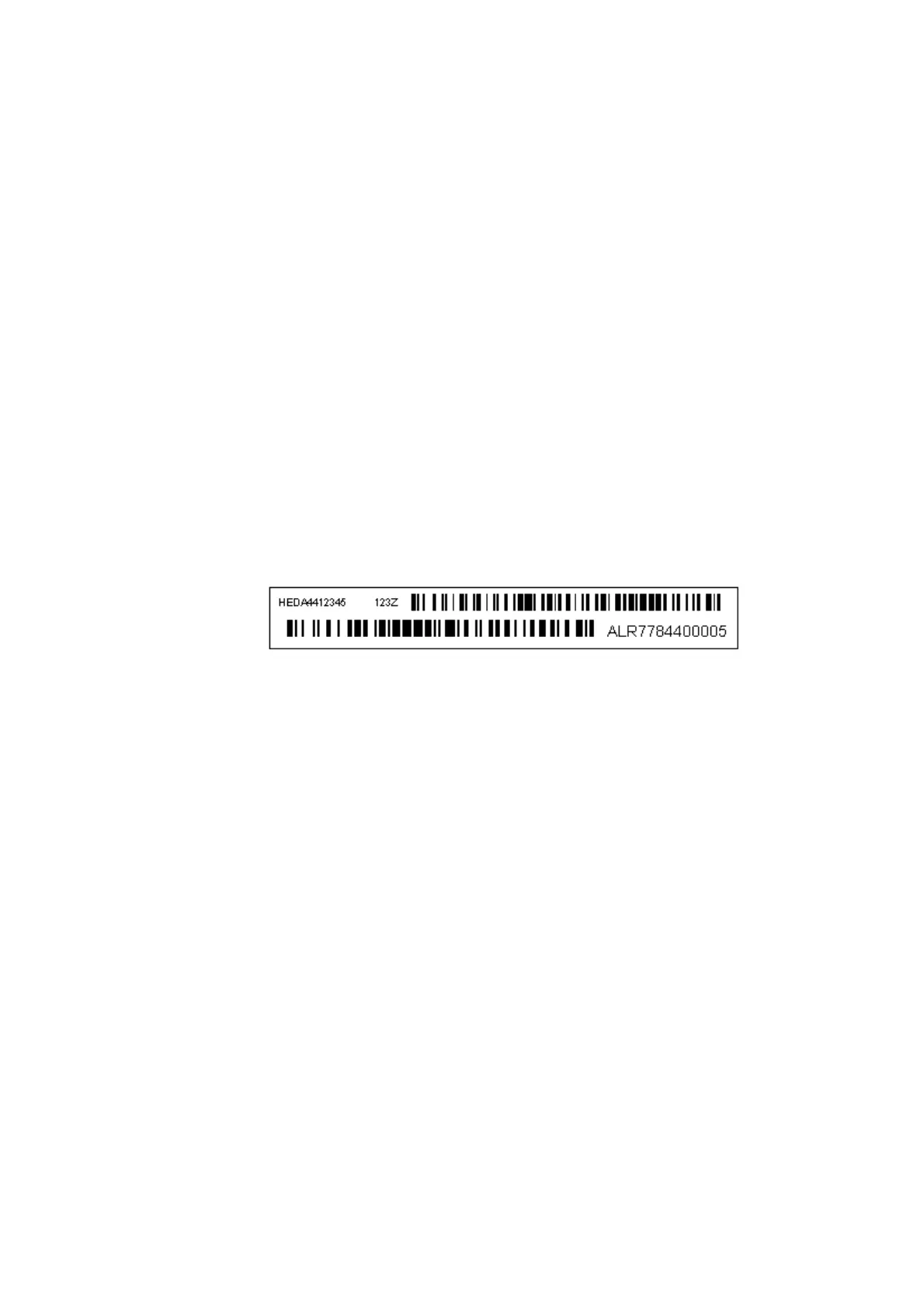

(3) Check the head property label pasted on the Head/carriage unit, and enter the
property code.
The code to be entered is 10 digits excluding the heading "ALR".
Tip In the standby state, open the scanner cover, and then hold down [Stop] or [X] five
seconds or longer; the Head/carriage unit moves to the center. Check the head
property label from the opening.
(4) After entering the 10 digits, press [SET] or [OK].
The machine displays "INPUT ACCEPTED" on the LCD and writes the entered head
property code into the EEPROM.
It then returns to the initial stage of the maintenance mode.
Note If the entered data contains any checksum error, the machine shows "Input
Error" and becomes ready to accept entry. Go back to step (3) and re-enter.

Brother DCP-J152W Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (ISO/IEC 24734) mono	11 ipm
Print speed (ISO/IEC 24734) color	6 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 1200 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	4.4 cpm
Copy speed (color, normal quality, A4)	2.7 cpm
Scan to	Cloud, E-mail, File, Image
Maximum scan area	A4 (210 x 297) mm
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15 cm
Maximum print size	210 x 297 mm
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, L, Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Borderless printing media sizes	10x15, 2L, A4, A6, Index card, L, Letter
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black
Built-in display	Yes
Market positioning	Home & office
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Online services supported	Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Processor family	RISC
Sound pressure level (printing)	50 dB
Power consumption (off)	0.2 W
Power consumption (standby)	3 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	16 W
Scan speed	3.37 sec/page
Package depth	229 mm
Package width	478 mm
Package height	456 mm
Package weight	8400 g
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	374 mm
Width	410 mm
Height	161 mm
