Brother DCP-J152W Service Manual

5-54
Confidential
1.4.28 Adjust the Touch Panel (Maintenance mode 78)
<Function>
This function adjusts the detection area on the touch panel.
<Operating Procedure>
(1) Enter [7] and [8] in the initial stage of the maintenance mode.

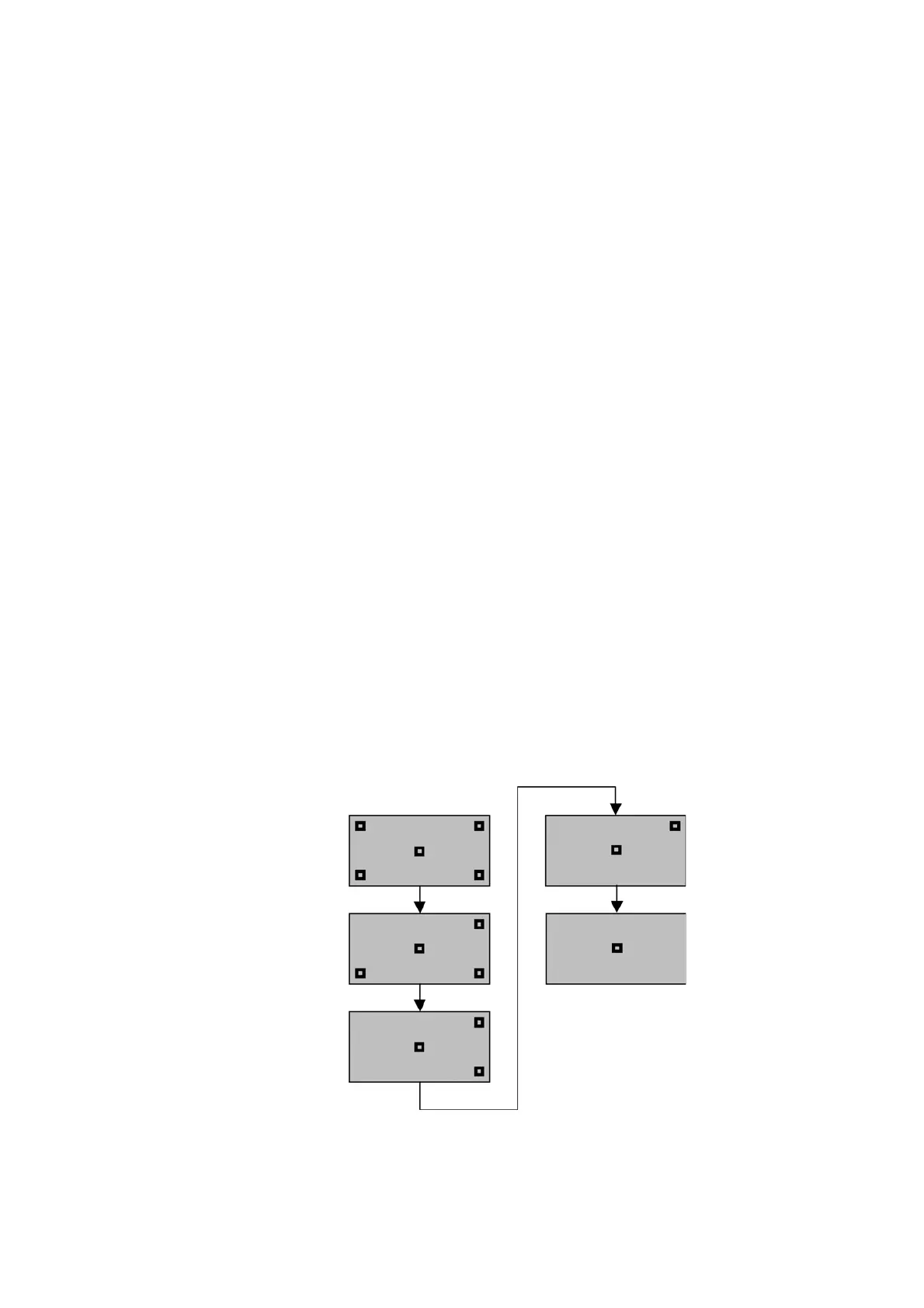

The adjustment screens shown below appear on the LCD.
(2) Touch the symbols on the touch panel with a stylus in the order of top-left, bottom-left,
bottom-right, top-right, and the center.
After a symbol touched disappears, touch the next one.
After the fifth symbol (center) is pressed, the "OK" appears on the LCD if the
adjustment is normally completed. After approx. three seconds, the machine returns to
the initial stage of the maintenance mode.
Note • Do not use tools other than a stylus designed for touch panels. Especially, never
use a pointed one, e.g., a screwdriver. Using such a tool damages the touch
panel.
• Do not touch the touch panel with fingers. The contact area of a finger is too large
to adjust the touch panel precisely.
• If no keys are pressed for one minute in the above procedure or you press [Stop]
or [X], the machine returns to the initial stage of the maintenance mode.
• If the touch panel is improperly pressed or a wrong point is pressed, "ERROR"
appears on the LCD. After approx. three seconds, the screen returns to the state
in step (2). Start pressing the five symbols again from the first one (top-left).
• If "ERROR" appears on the LCD, check the panel flat cable for a connection
failure, breakage, or short-circuit. If "ERROR" continues to be displayed without
any of such problems, replace the control panel ASSY.

Brother DCP-J152W Specifications

General

Duplex printing	No
Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Print speed (ISO/IEC 24734) mono	11 ipm
Print speed (ISO/IEC 24734) color	6 ipm
Print speed (black, normal quality, A4/US Letter)	27 ppm
Print speed (color, normal quality, A4/US Letter)	10 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 1200 DPI
Maximum number of copies	99 copies
Copy speed (black, normal quality, A4)	4.4 cpm
Copy speed (color, normal quality, A4)	2.7 cpm
Scan to	Cloud, E-mail, File, Image
Maximum scan area	A4 (210 x 297) mm
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Number of print cartridges	4
Total input capacity	100 sheets
Total output capacity	50 sheets
Envelopes sizes	10, C5, DL, Monarch
Photo paper sizes	10x15 cm
Maximum print size	210 x 297 mm
Paper tray media types	Glossy paper, Plain paper, Transparencies
Non-ISO print media sizes	2L, Executive (184 x 267mm), Index card, L, Letter (media size)
ISO A-series sizes (A0...A9)	A4, A5, A6
Borderless printing media sizes	10x15, 2L, A4, A6, Index card, L, Letter
Maximum ISO A-series paper size	A4
Display	LCD
Product color	Black
Built-in display	Yes
Market positioning	Home & office
Direct printing	-
Standard interfaces	USB 1.1, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Online services supported	Dropbox, Evernote, Facebook, Flickr, Google Drive, Picasa, Sky Drive
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print
Processor family	RISC
Sound pressure level (printing)	50 dB
Power consumption (off)	0.2 W
Power consumption (standby)	3 W
Power consumption (PowerSave)	0.7 W
Power consumption (average operating)	16 W
Scan speed	3.37 sec/page
Package depth	229 mm
Package width	478 mm
Package height	456 mm
Package weight	8400 g
Mac operating systems supported	Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion, Mac OS X 10.8 Mountain Lion
Server operating systems supported	Windows Server 2003, Windows Server 2003 x64, Windows Server 2008, Windows Server 2008 R2, Windows Server 2008 x64
Windows operating systems supported	Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64, Windows XP Home, Windows XP Professional, Windows XP Professional x64
Sustainability certificates	Blue Angel, ENERGY STAR

Weight and Dimensions

Depth	374 mm
Width	410 mm
Height	161 mm
