Brother DCP-J4110DW Service Manual

3-74
Confidential

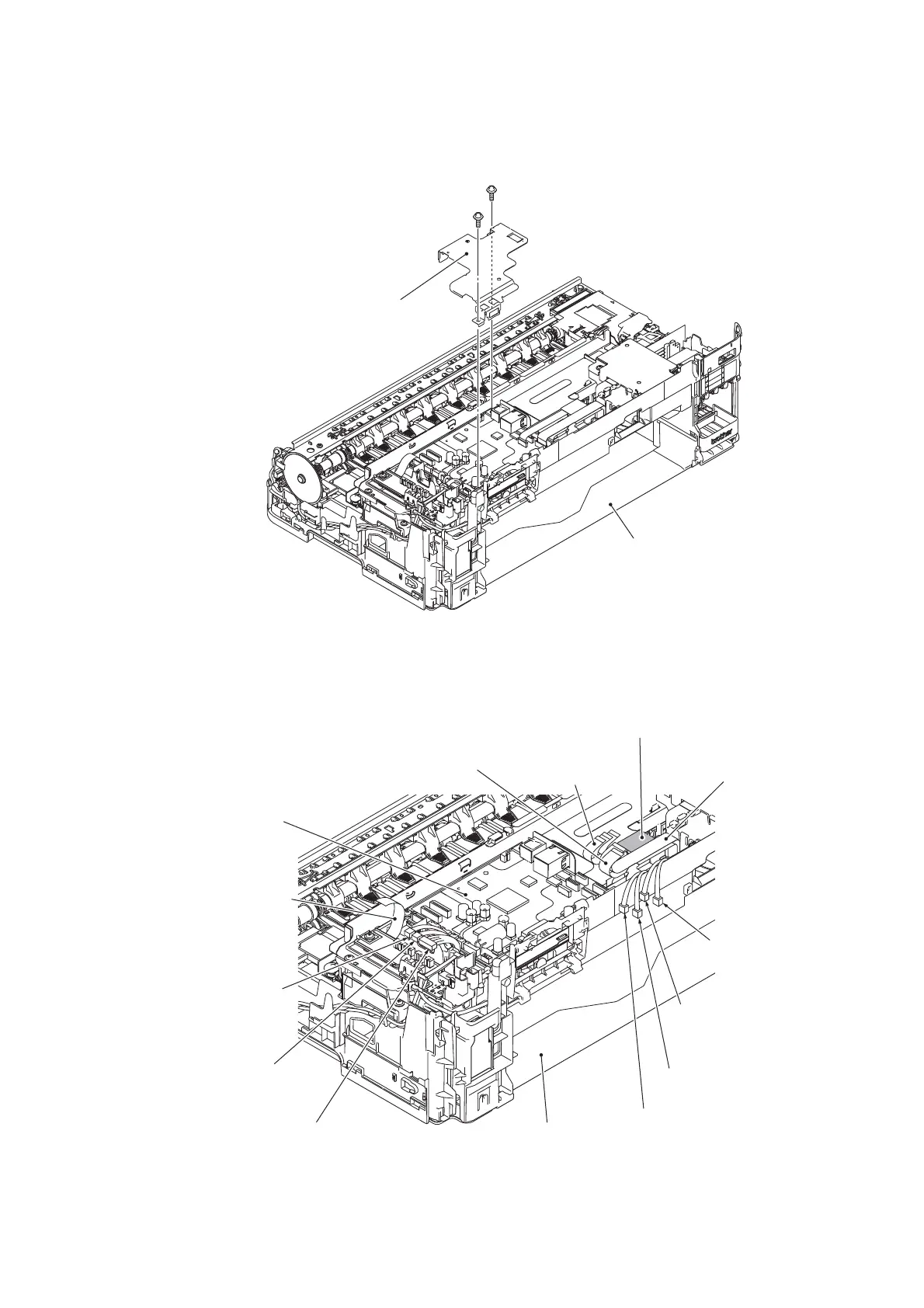

9.17 Main PCB ASSY
(1) Remove the two screws (TAPTITE CUP S M3x6) and lift up the main PCB shield.
(2) Release the harness fixing section of the main PCB frame film.
(3) Disconnect all harnesses connected to the main PCB ASSY.
TAPTITE CUP S
M3x6
(Rear)
Main PCB shield
(Front)
Lower cover
(3_052_E)
(Rear)
(Front)
Lower cover
Speaker harness
Power supply PCB harness
Carriage motor
harness
Paper feed motor
harness
Registration
sensor harness
Purge cam sensor
harness
Ink cartridge cover
sensor harness
Main PCB ASSY
MJ PCB
flat cable
Main PCB frame film
Head flat cables
Ink sensor flat cable
Sensor relay PCB
flat cable
(3_053_E)

Brother DCP-J4110DW Specifications

General

Print technology	Inkjet
Maximum resolution	6000 x 1200 DPI
Economical printing	Yes
Duplex printing mode	Auto
Print speed (ISO/IEC 24734) mono	18 ipm
Print speed (ISO/IEC 24734) color	16 ipm
Duplex print speed (ISO/IEC 24734) mono	6 ipm
Print speed (black, normal quality, A4/US Letter)	33 ppm
Print speed (color, normal quality, A4/US Letter)	25 ppm
All-in-one functions	Copy, Print, Scan
Color all-in-one functions	copy, print, scan
Digital sender	No
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	- pages per month
Recommended duty cycle	250 - 1000 pages per month
Number of print cartridges	4
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 1200 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Time to first copy (black, normal)	18 s
Copy speed (black, normal quality, A4)	15 cpm
Copy speed (color, normal quality, A4)	10 cpm
Scan to	E-mail, FTP, Image, OCR, USB
Scan drivers	TWAIN, WIA
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	215.9 x 297 mm
Output color depth	24 bit
Image formats supported	BMP, JPG, PNG, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	2400 x 2400 DPI
Paper input type	Paper tray
Total input capacity	150 sheets
Total output capacity	50 sheets
Photo paper sizes	9x13, 10x15, 13x18 cm
Custom media width	148 - 297 mm
Maximum print size	297 x 432 mm
Custom media length	148 - 432 mm
Paper tray media types	Envelopes, Glossy paper, Photo paper, Plain paper, Transparencies
Paper tray media weight	64 - 220 g/m²
Non-ISO print media sizes	Legal
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
Photo paper sizes (imperial)	4x6, 5x7, 5x8, 3.5x5 \
Borderless printing media sizes	4x6, 5x7, A3, A4, A6
Maximum ISO A-series paper size	A3
Display	LCD
Control type	Touch
Product color	Black, Ivory
Display diagonal	1.8 \
Market positioning	Home & office
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	128-bit WEP, 64-bit WEP, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK, WPS
Mobile printing technologies	Apple AirPrint
Compatible memory cards	MMC, MMC+, MS Duo, MS PRO Duo, SD, SDHC, SDXC
Sound pressure level (printing)	50 dB
AC input voltage	220 - 240 V
AC input frequency	50 - 60 Hz
Power consumption (off)	0.04 W
Power consumption (standby)	5.5 W
Power consumption (PowerSave)	1 W
Power consumption (average operating)	21 W
Package depth	247 mm
Package width	564 mm
Package height	416 mm
Package weight	10100 g
Mac operating systems supported	Mac OS X 10.5 Leopard, Mac OS X 10.6 Snow Leopard, Mac OS X 10.7 Lion
Server operating systems supported	Windows Server 2003, Windows Server 2008, Windows Server 2008 R2
Sustainability certificates	Blue Angel, ENERGY STAR
Bundled software	Brother MFL-Pro Suite\\r Brother ControlCentre 4 (Win)\\r Brother ControlCentre 2 (Mac)

Weight and Dimensions

Depth	290 mm
Width	480 mm
Height	163 mm
