3-8

Confidential

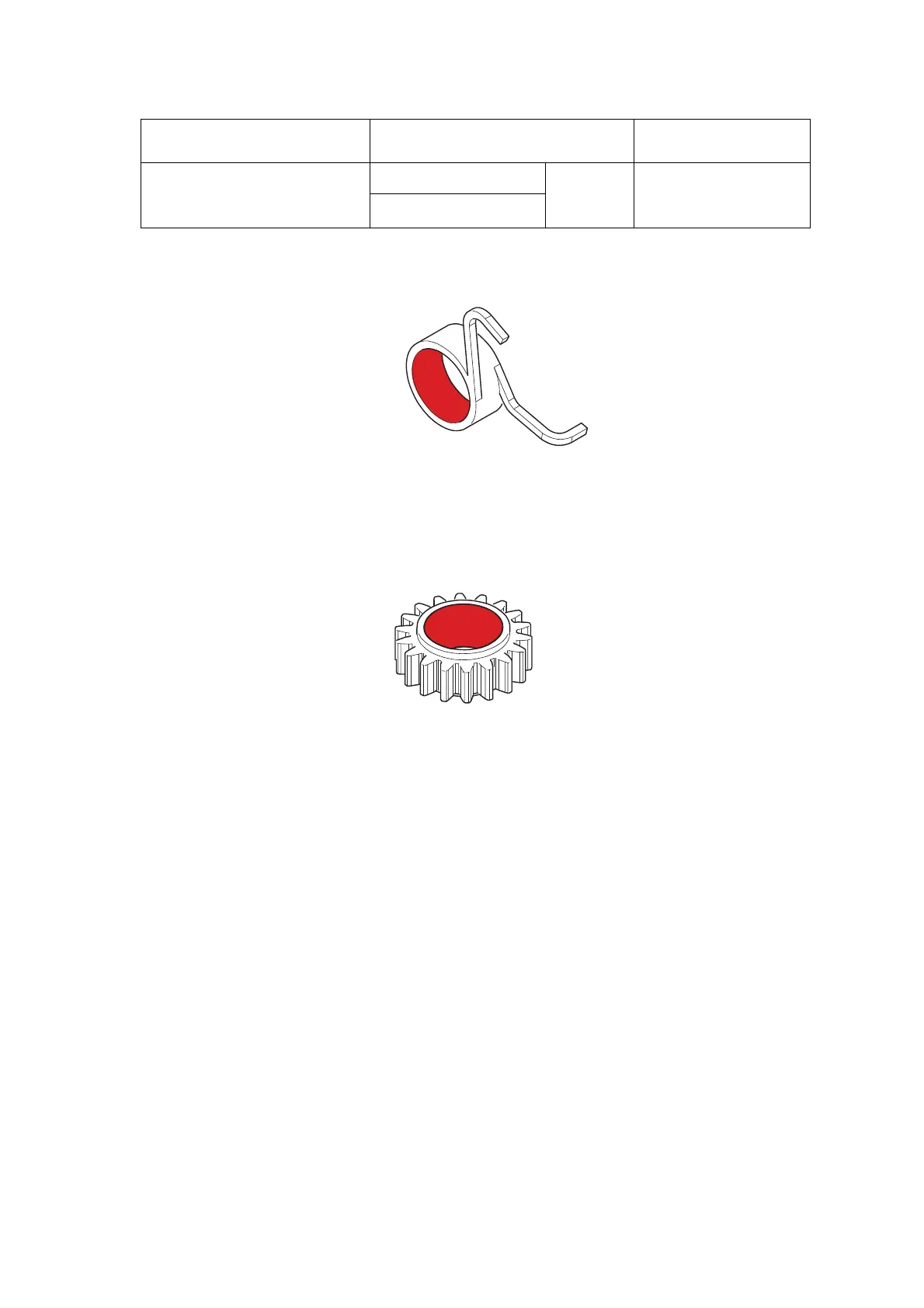

 MP damper spring

Fig. 3-6

 Idle gear 50 Z18M10 (Models with 520-sheet only)

Fig. 3-7

Lubricating oil type

(Maker name)

Lubrication point Quantity of lubrication

HANARL BDX-313A

(Kanto Kasei)

MP damper spring Apply to

the internal

diameter.

Apply with brush more

than once.

Idle gear 50 Z18M10
