3-50

Confidential

9.11.6ADF separation holder ASSY

(1) Remove the taptite cup B M3x10 screw to remove the ADF separation holder ASSY

from the ADF unit.

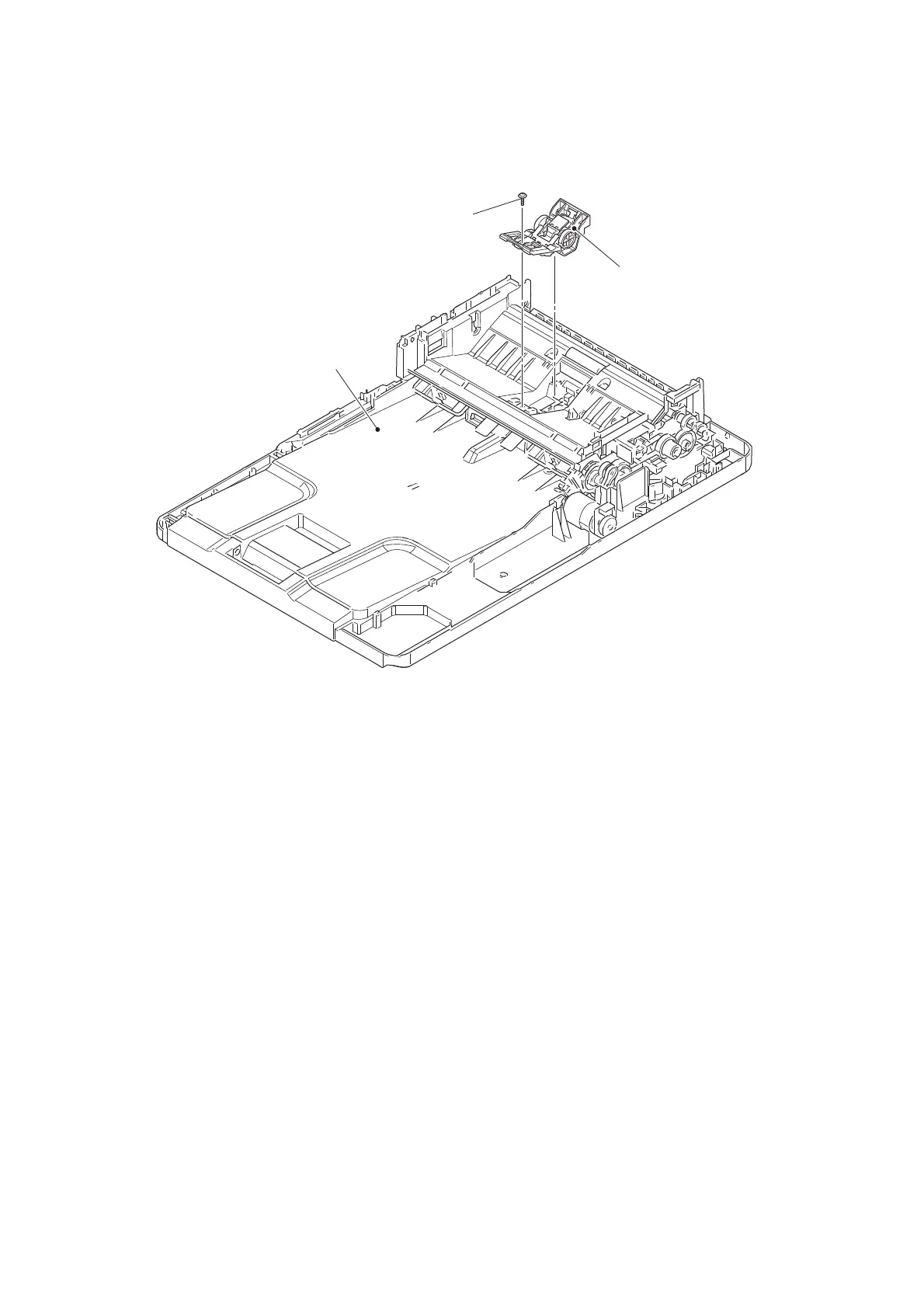

Fig. 3-41

ADF separation holder ASSY

ADF unit

Taptite cup B M3x10
