3-124
Confidential

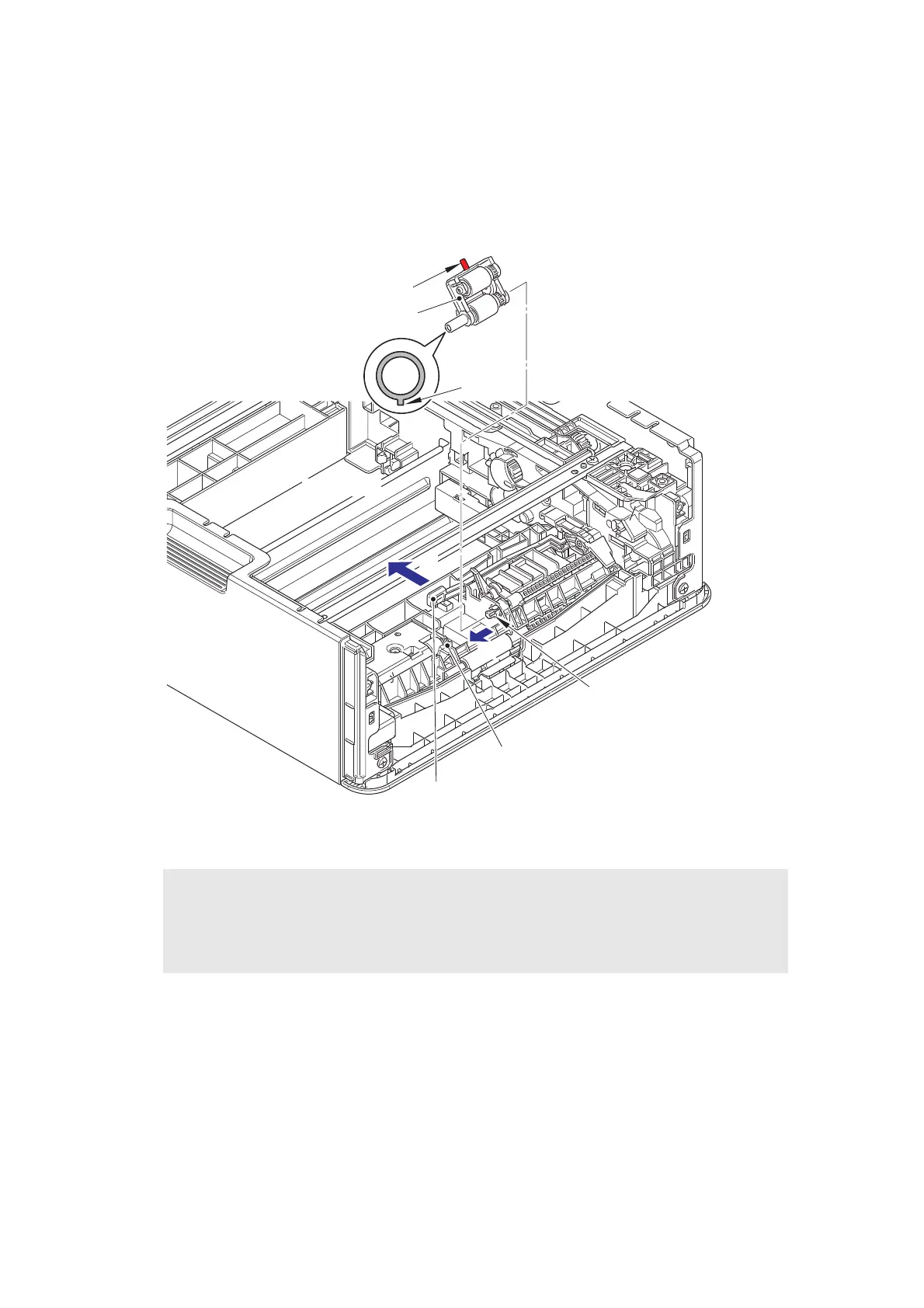

10.2 LT roller holder ASSY
(1) Push the link arm in the direction of the arrow A, and turn the LT roller holder ASSY to
remove the boss.
(2) Slide the LT roller holder ASSY in the direction of the arrow B to remove it from the shaft,
and remove the LT roller holder ASSY.
Fig. 3-125
Assembling Note:
• When attaching the LT roller holder ASSY, engage "A" on the shaft of the LT roller
holder ASSY with the hole on the LT paper feed frame ASSY, and insert the shaft into
the hole.
LT roller holder ASSY
Boss
Shaft
Link arm
A
B
<Front side>
<Back side>
"A"
LT paper feed frame ASSY
