3-49

Confidential

9.11.5Document separate roller ASSY

(1) Release the lock of the conductive bushing to remove the document separate roller

ASSY from the ADF unit.

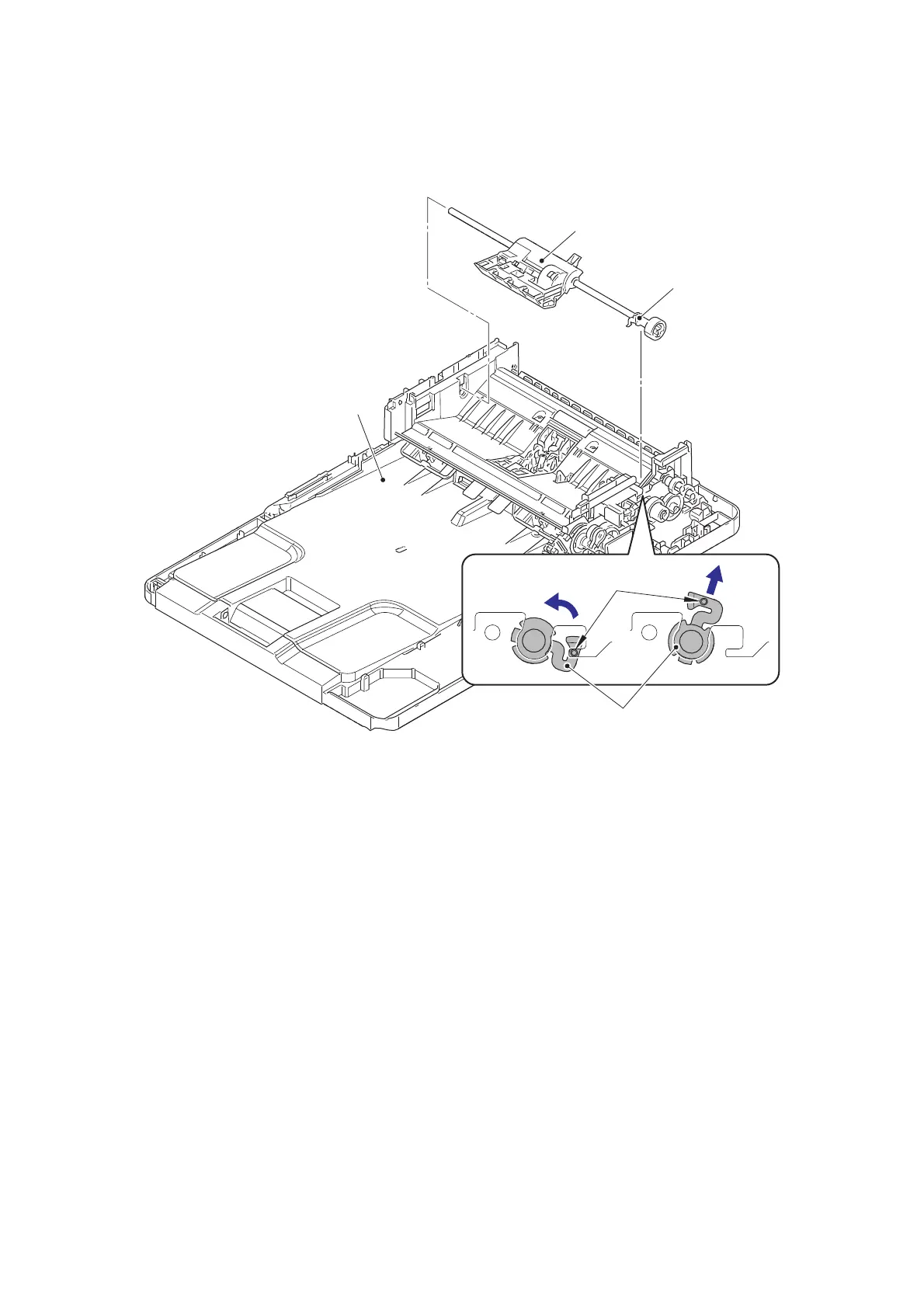

Fig. 3-40

Document separate roller ASSY

ADF unit

Conductive bushing

Lock

Conductive bushing
