3-101

Confidential

9.33 Develop clutch 51R

(1) Remove the develop idle gear 53 from the main frame L ASSY.

(2) Remove the develop shaft gear 22 from the main frame L ASSY.

(3) Release the develop clutch harness from the securing fixtures, and remove the develop

clutch 51R from the main frame L ASSY.

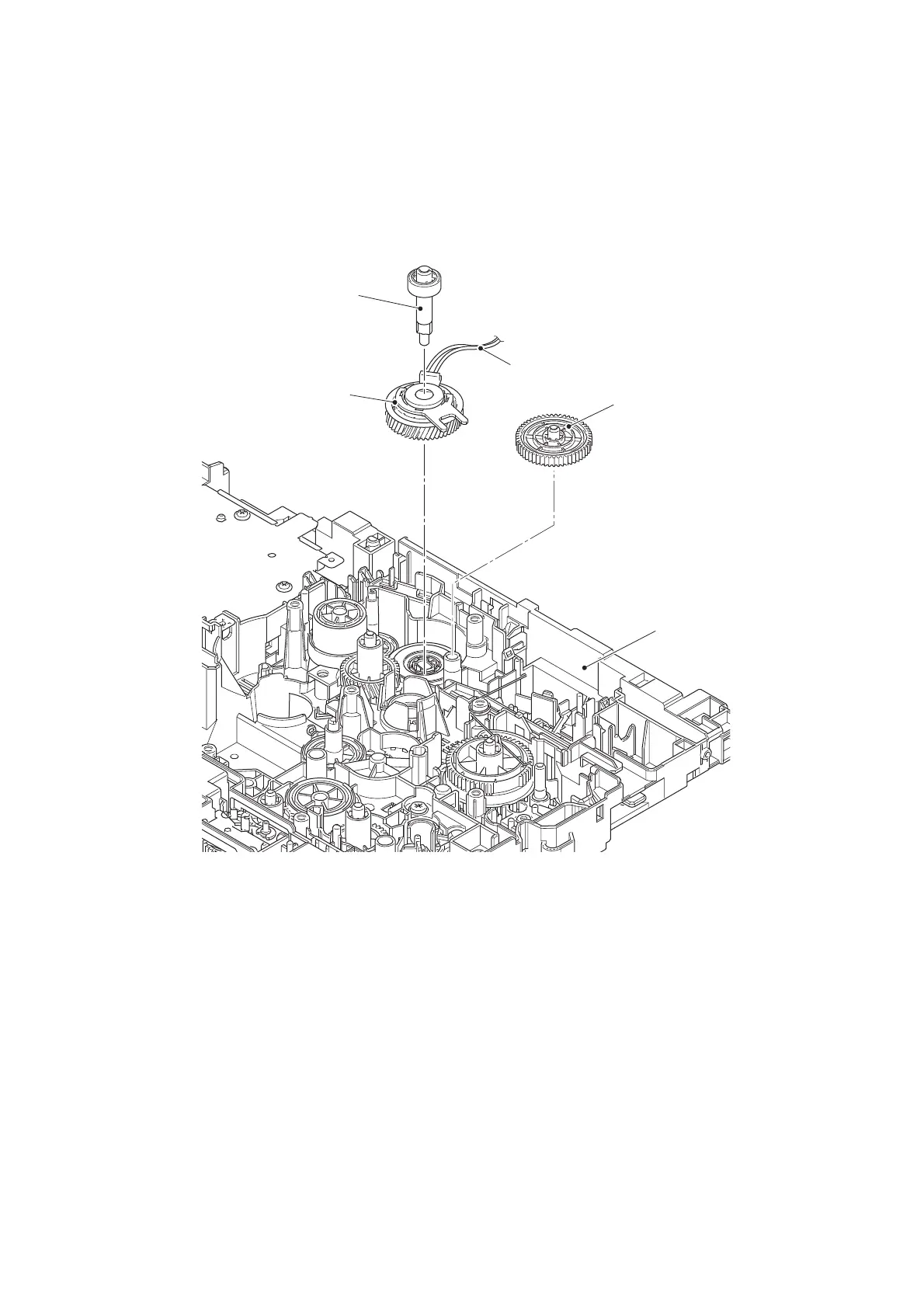

Fig. 3-101

Harness routing: Refer to “10. Left side of the machine”.

Develop clutch harness

Develop idle gear 53

Main frame L ASSY

Develop shaft gear 22

Develop clutch 51R
