3-12

Confidential

2

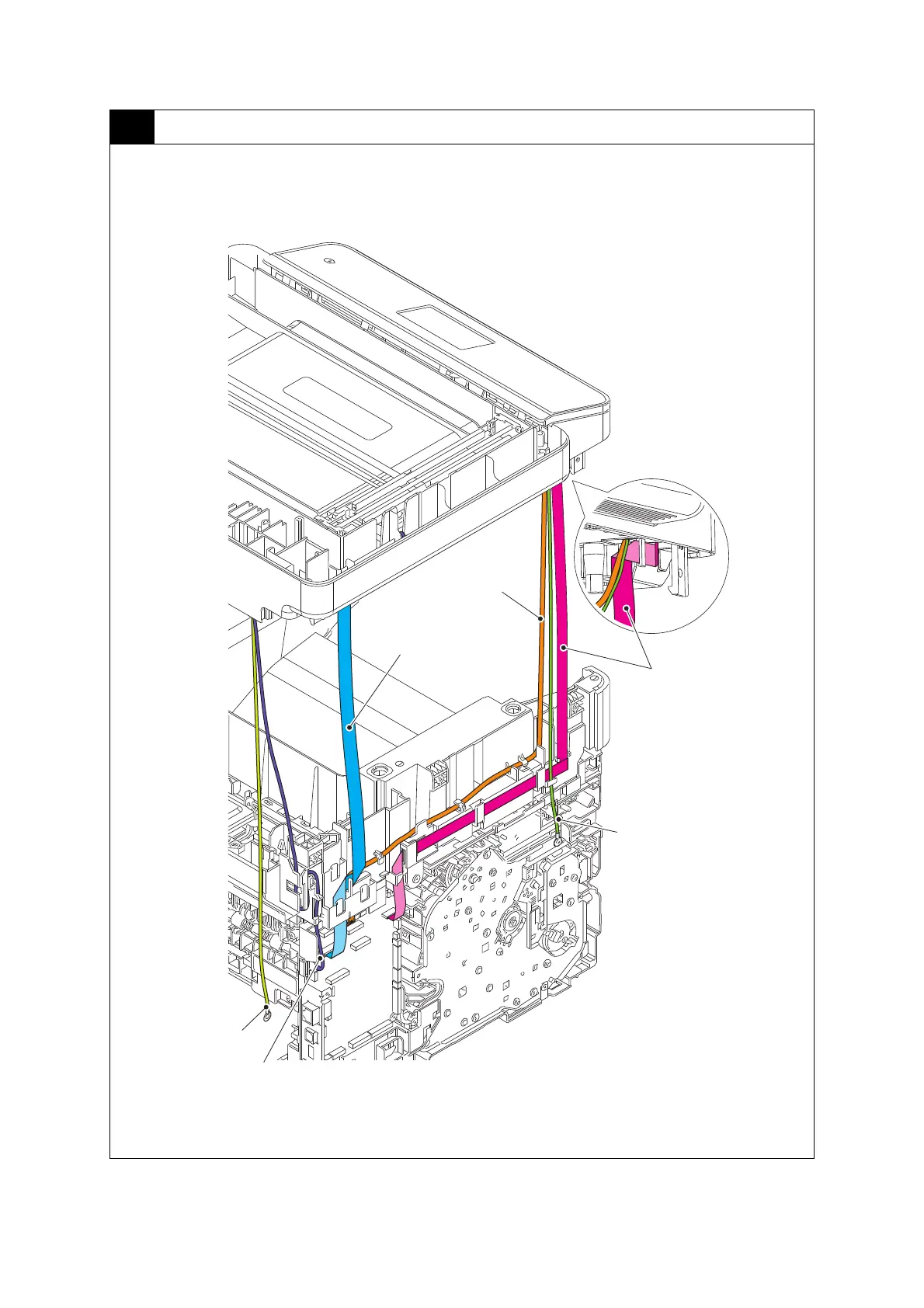

Document scanner unit - Main PCB ASSY

Harness colors are subject to change for some reason.

Panel flat cable

Panel FG harness (WH)

FB FG harness (YW)

FB motor harness (YW)

First side CIS flat cable

USB host harness

(GY)
