3-114

Confidential

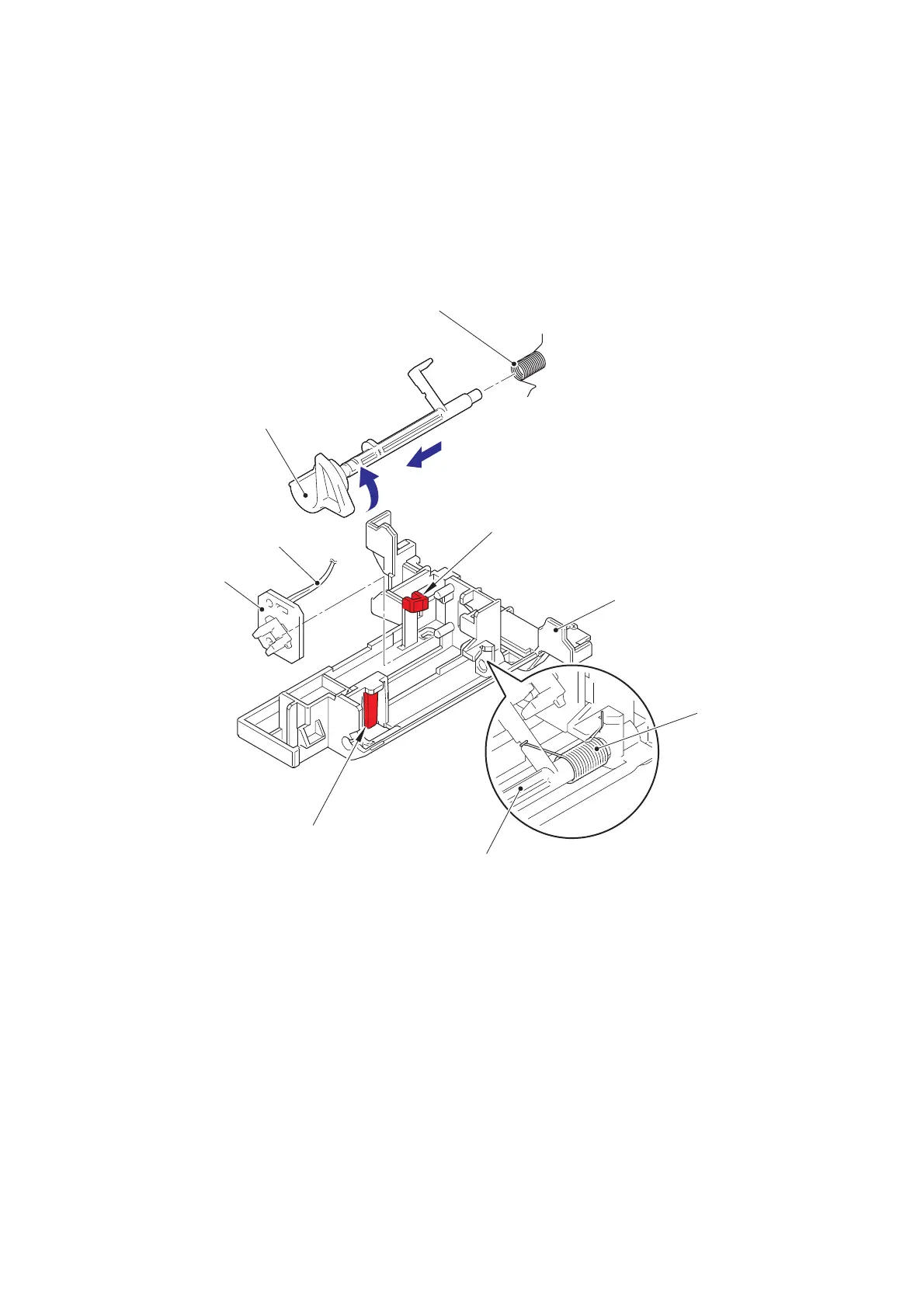

(4) Turn the T1 paper feed actuator in the direction of the arrow 4a, and push the hook on

the T1 paper feed actuator holder to slide the T1 paper feed actuator in the direction of

the arrow 4b to remove it from the T1 paper feed actuator holder.

(5) Remove the T1 paper feed actuator spring from the T1 paper feed actuator.

(6) Remove the securing fixtures of the T1 paper feed sensor harness from the T1 paper

feed actuator holder. Release the hook, and remove the T1 paper feed sensor PCB

ASSY from the T1 paper feed actuator holder.

Fig. 3-115

Harness routing: Refer to “13. Bottom side of the machine (High-voltage power supply PCB

ASSY)”.

T1 paper feed actuator

T1 paper feed

actuator holder

T1 paper feed actuator spring

T1 paper feed sensor harness

Hook

T1 paper feed sensor

PCB ASSY

Hook

T1 paper feed actuator

T1 paper feed

actuator spring
