3-131
Confidential
(5) Remove the two taptite cup S M3x8 SR screws (5a) (5b), and remove the center FG
plate L from the LT frame L unit.
(6) Remove the two taptite cup S M3x8 SR screws, and remove the under bar ground plate
L (250) from the LT frame L unit.
(7) Remove the four taptite bind B M4x12 screws and six taptite cup S M3x8 SR screws (7a)
(7b). Remove the LT frame L unit, and disconnect the two harnesses from the LT frame
L unit.

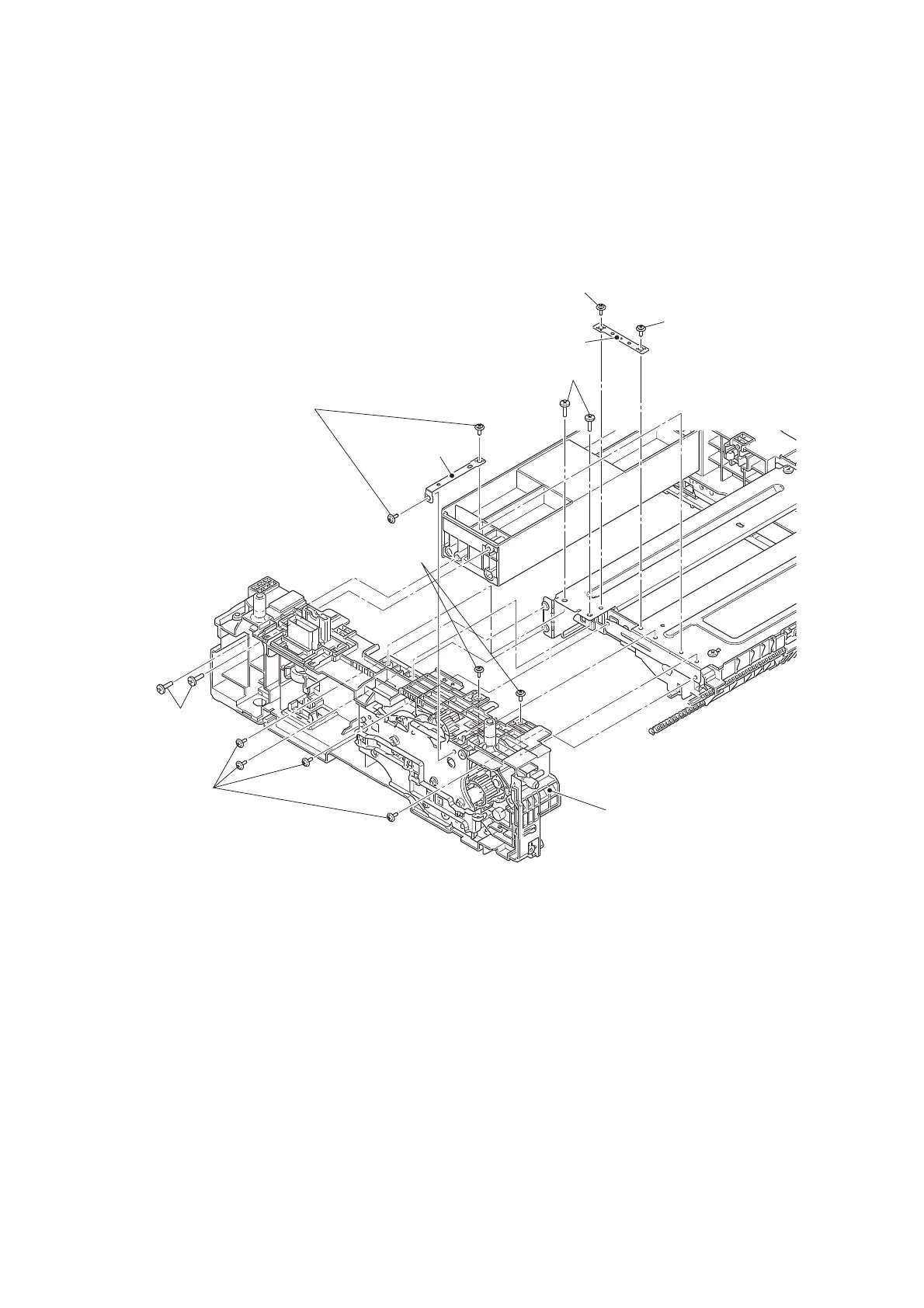

Fig. 3-133
LT frame L unit
Under bar ground
plate L (250)
Center FG plate L
Taptite cup S M3x8 SR (7b)
Taptite cup S M3x8 SR
Taptite bind B M4x12
Taptite cup S M3x8 SR
(5b)
Taptite cup S
M3×8 SR (7a)
Taptite bind
B M4x12
Taptite cup S M3x8 SR (5a)
To Next Page
