5-10

Confidential

[2] Print worker switch (WSW) setting data (function code: 11)

This function is used to print the worker switch settings and details.

(1) Press the [1] key twice in the initial state of maintenance mode. "PRINTING" is displayed

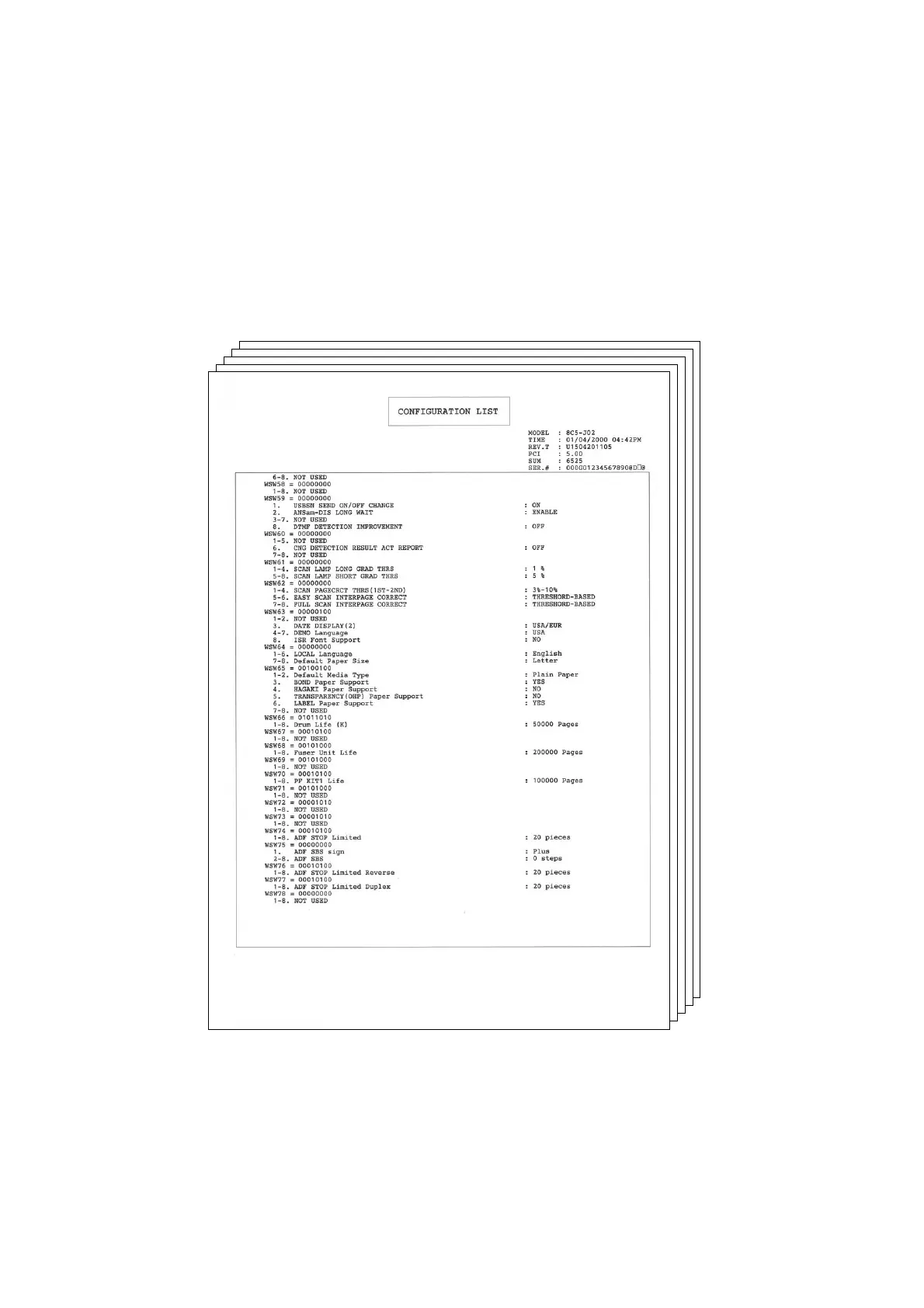

on the LCD, and printing the CONFIGURATION LIST (refer to the figure below) starts.

(2) When printing is completed, the machine returns to the initial state of maintenance

mode.

Fig. 5-2
