(16) Disconnect the modem flat cable, speaker harness, and stack sensor harness* from the

main PCB ASSY.

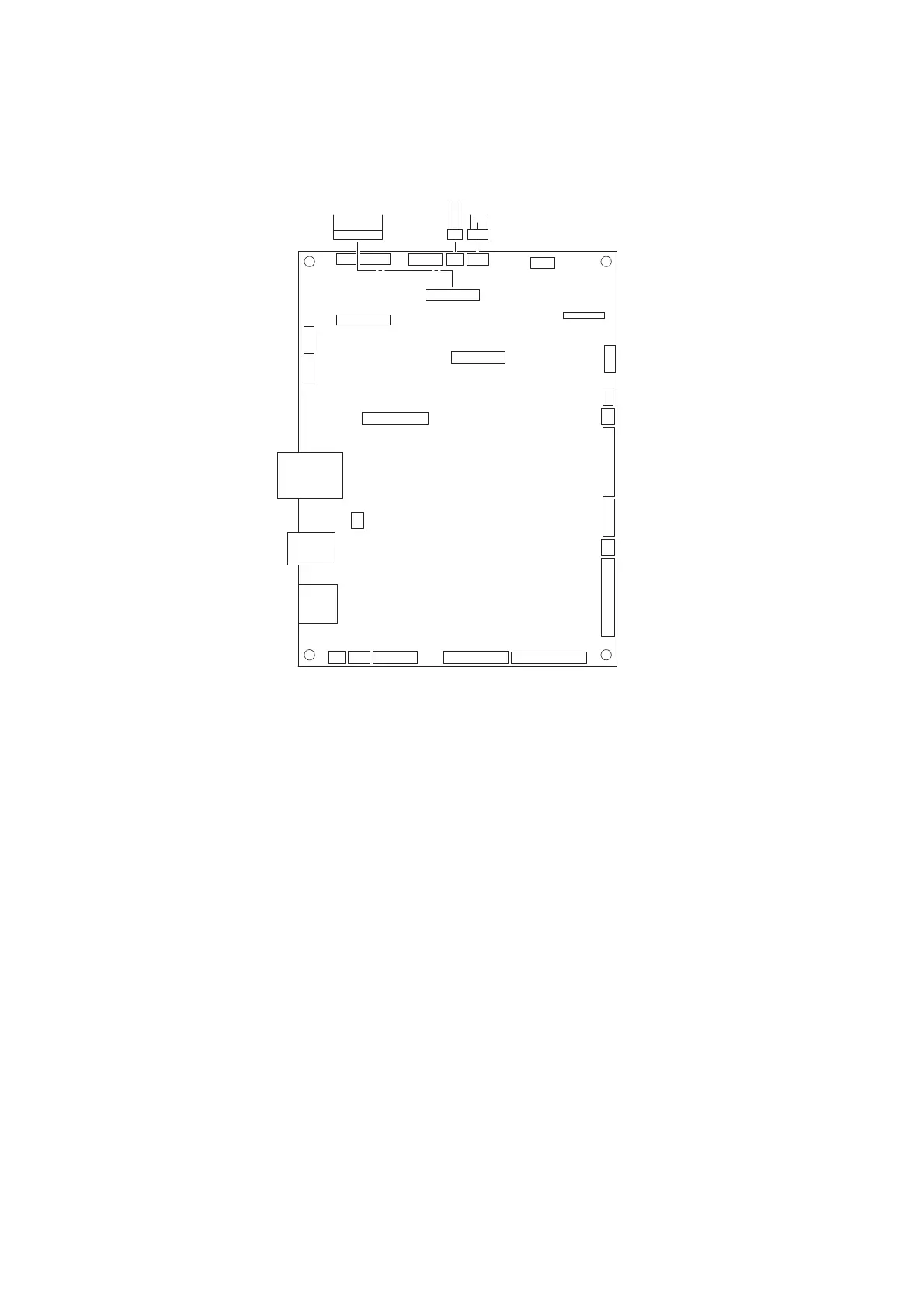

Fig. 7-16

Harness routing: Refer to “3. Left side of the machine”, “10. Left side of the machine”.

Modem flat cable

Speaker harness

Stack sensor harness*

Main PCB ASSY

* Models with USB host on the rear side only
