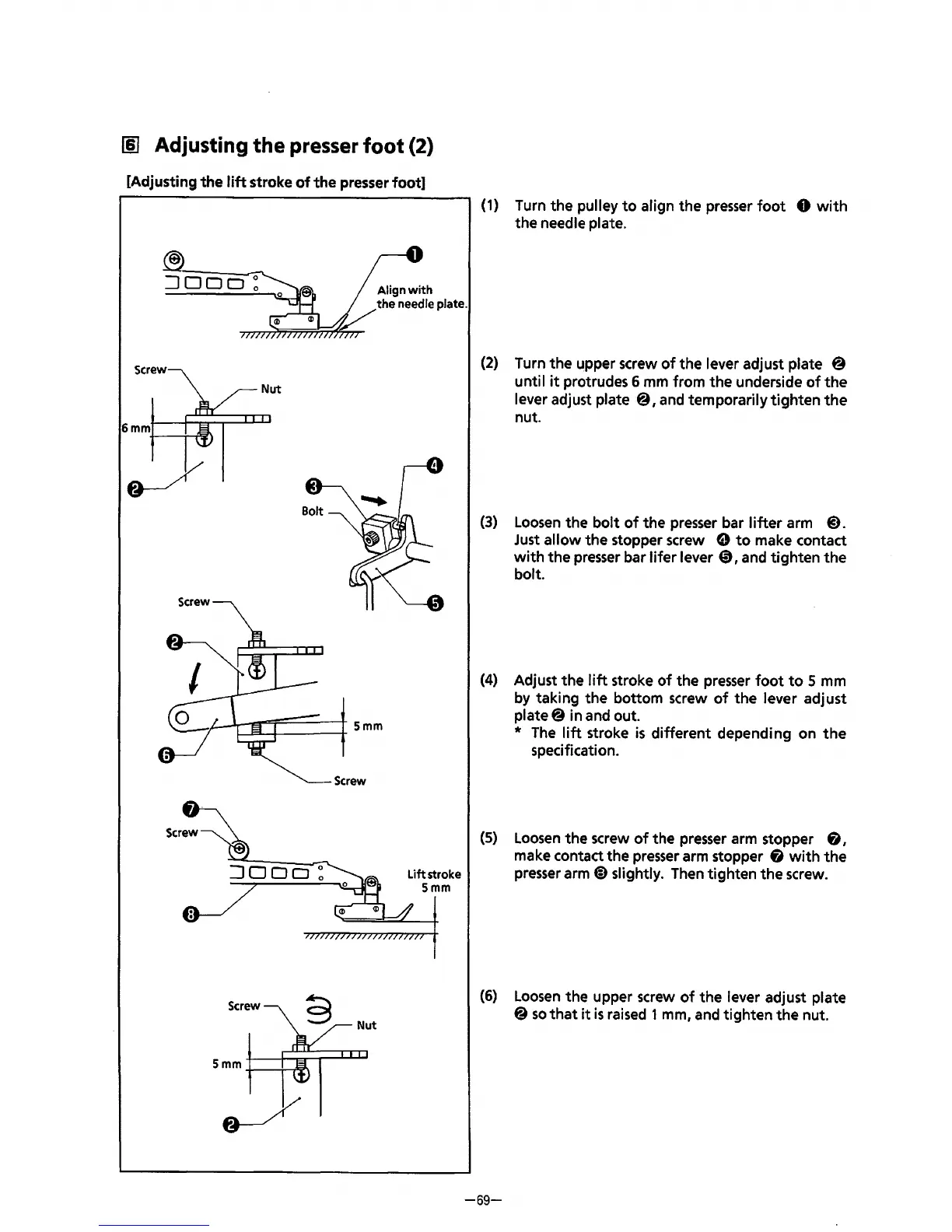

[§] Adjusting the presser foot (2)
[Adjusting the lift stroke of the presser foot]
®.
---~
:JDOD~
Align with
(1) Turn the pulley to align the presser foot 0 with
the needle plate.
v
the needle plate.
Nut
Lift stroke
Smm
(2) Turn the upper screw of the lever adjust plate @
until it protrudes 6 mm from the underside of the
lever adjust plate @
1
and temporarily tighten the
nut.
(3) Loosen the bolt of the presser bar lifter arm @).
Just allow the stopper screw e to make contact
with the presser bar lifer lever 0 I and tighten the
bolt.
(4) Adjust the lift stroke of the presser foot to 5 mm
by taking the bottom screw
of the lever adjust
plate@ in and out.
* The lift stroke is different depending on the
specification.
(5) Loosen the screw of the presser arm stopper & I
make contact the presser arm stopper & with the
presser arm@) slightly. Then tighten the screw.
(6) Loosen the upper screw of the lever adjust plate
8 so that it is raised 1 mml and tighten the nut.
-69-
