Brother FS-40WT User Manual

3 - 38
Needle-presser module
Application of Disassembly

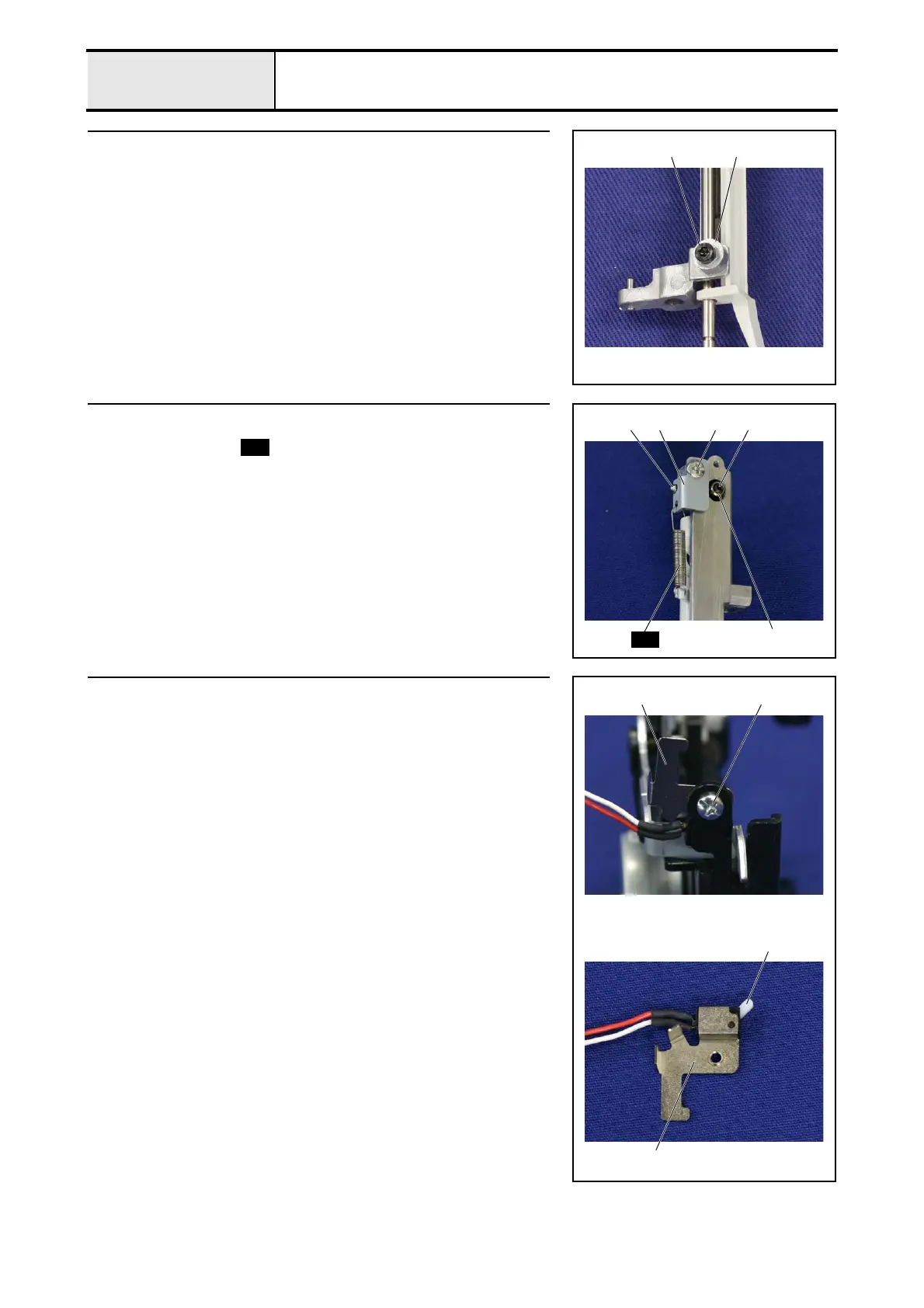

11 Removal of Zigzag adjusting nut
1. Remove the screw 1, and then remove the zigzag adjusting nut 1 from
the needle bar supporter assy..
1 1
12 Removal of Needle holder shaft A
1. Remove the spring .
2. Remove the screw 1, and then remove the plate 1 from the needle bar
supporter assy..
3. Remove the screw 2, and then pull the shaft 2, and then remove the
needle holder shaft A 3 from the needle bar supporter assy.
1 1
3
S09
2 2
S09
13 Removal of PF switch assy
1. Remove the screw 1, and then remove the presser switch holder 1 from
the base holder assy..
2. Remove the PF switch assy. 2 from the presser switch holder 1.
1 1
2
1
