Brother FS-40WT User Manual

3 - 82

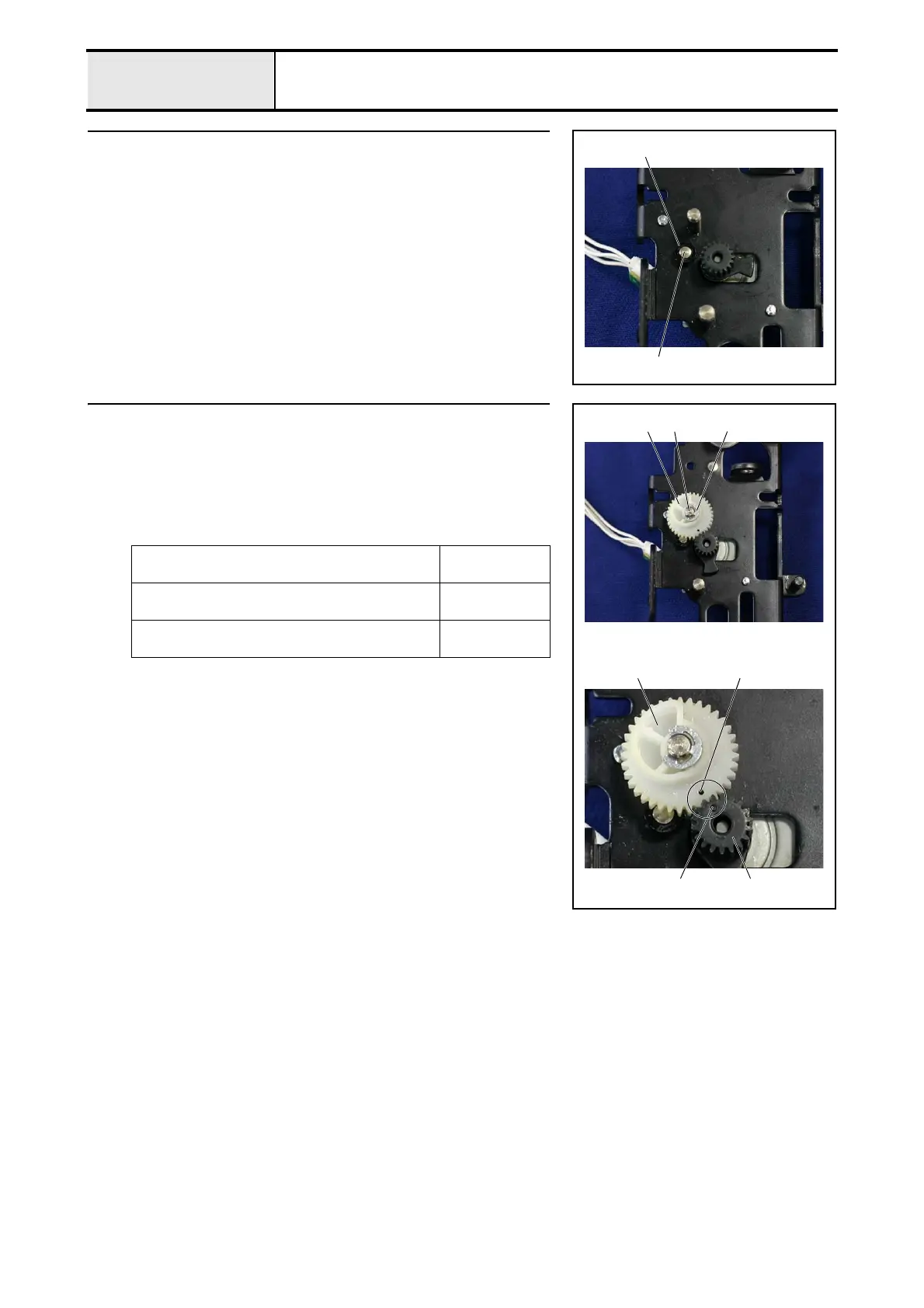

Needle-presser module
Application of Assembly
4 Attachment of Rubber
1. Attach the rubber 1 to the shaft 2 of the base holder assy..
1
2
5 Attachment of Z zigzag cam
1. Set the Z zigzag cam 1 to the shaft 2 of the base holder assy..
*Key point
• Check that the match mark 3 on the Z zigzag cam 1 Align
the match mark 5 on the Z pulse motor gear 4.
2. Attach the retaining ring E3 to the shaft 2 of the base holder assy..
Apply EPNOC AP (N) 0 to all of the sliding part of
the Z zigzag cam pin.
Bead
XC8387***
Apply EPNOC AP (N) 0 to all of the Z zigzag cam.
Bead
XC8387***
Apply EPNOC AP (N) 0 to the teeth around the Z
zigzag cam gear.
Bead
XC8387***
Retaining ring E3
1 2
3
5
1
4
