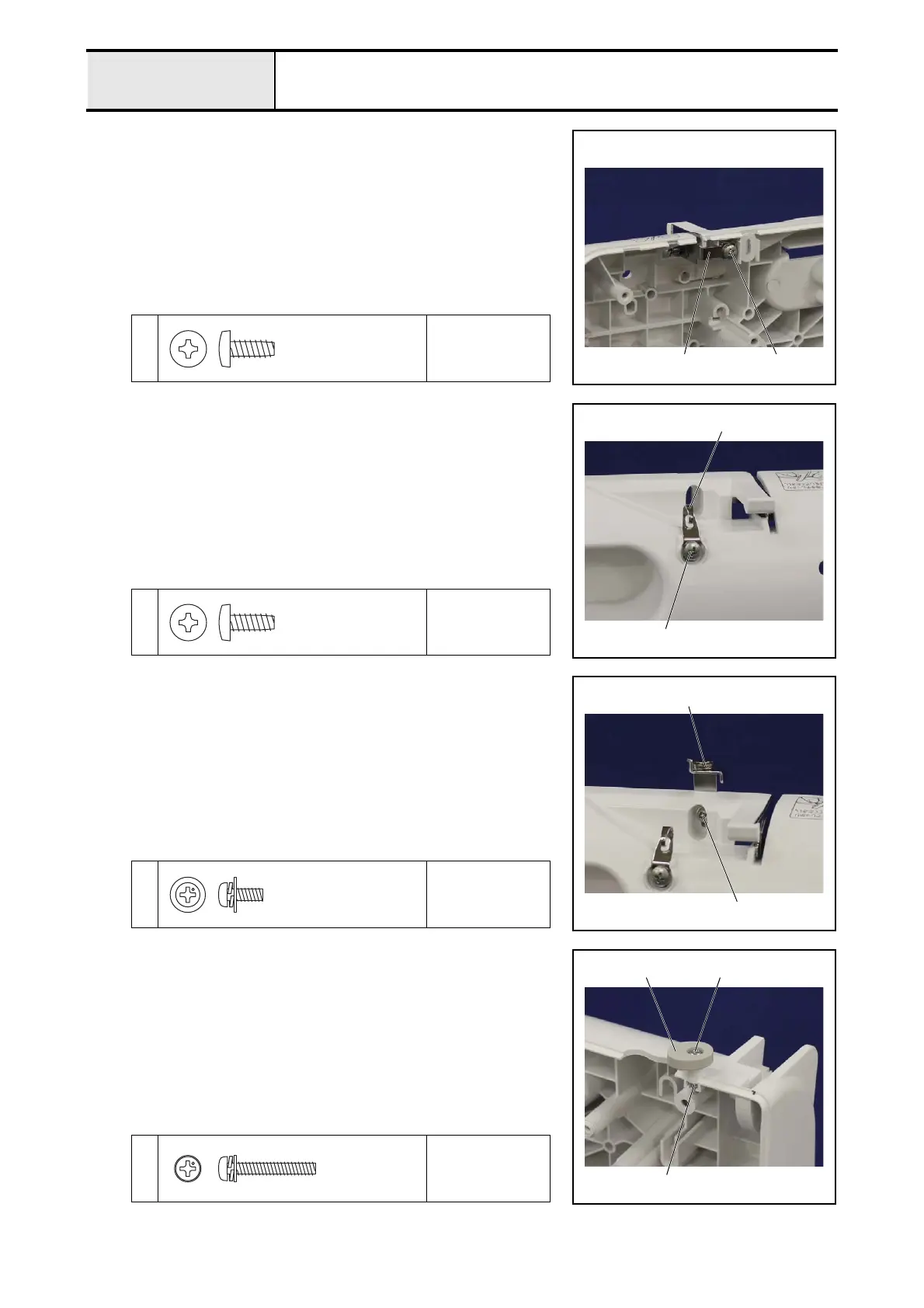

3 - 44
Main parts
Application of Assembly
1-3 Attachment of Thread guide plate assy
1. Set the thread guide plate assy. 1 to the rear cover assy. with the screw 1.
*Key point
Check that the align the notch part of the thread guide plate
assy. 1 with the rib of the rear cover assy..
1
Torque
0.78 – 1.18 N·m
111
Taptite, Bind B
M4X10
1-4 Attachment of Thread guide supporting plate assy
1. Set the thread guide supporting plate assy. 1 to the rear cover assy. with
the screw 1.
1
Torque
0.78 – 1.18 N·m
1
1
Taptite, Bind B
M4X10
1-5 Attachment of Bobbin winder guide assy
1. Set the bobbin winder guide assy. 1 to the rear cover assy. and then
temporarily tighten the screws 1.
*Key point
Fully tighten the screw 1 after performing "4-16 Adjustment :
Bobbin winder".
1
Torque
Hand start
1
1
Screw, Pan (S/P washer)
M3X8DB
1-6 Attachment of Bobbin presser
1. Set the Nut 1 M3 1 to the rear cover assy..
2. Set the bobbin presser 2 to the rear cover assy., and then temporarily
tighten the screws 1.
*Key point
Place the bobbin presser 2 with the smaller end facing the
rear.
Fully tighten the screw 1 after performing "4-16 Adjustment :
Bobbin winder".
1
Torque
Hand start
1
1
2
Screw, Pan (S/P washer)
M3X20
