Brother MFC-7365DN User Manual

82

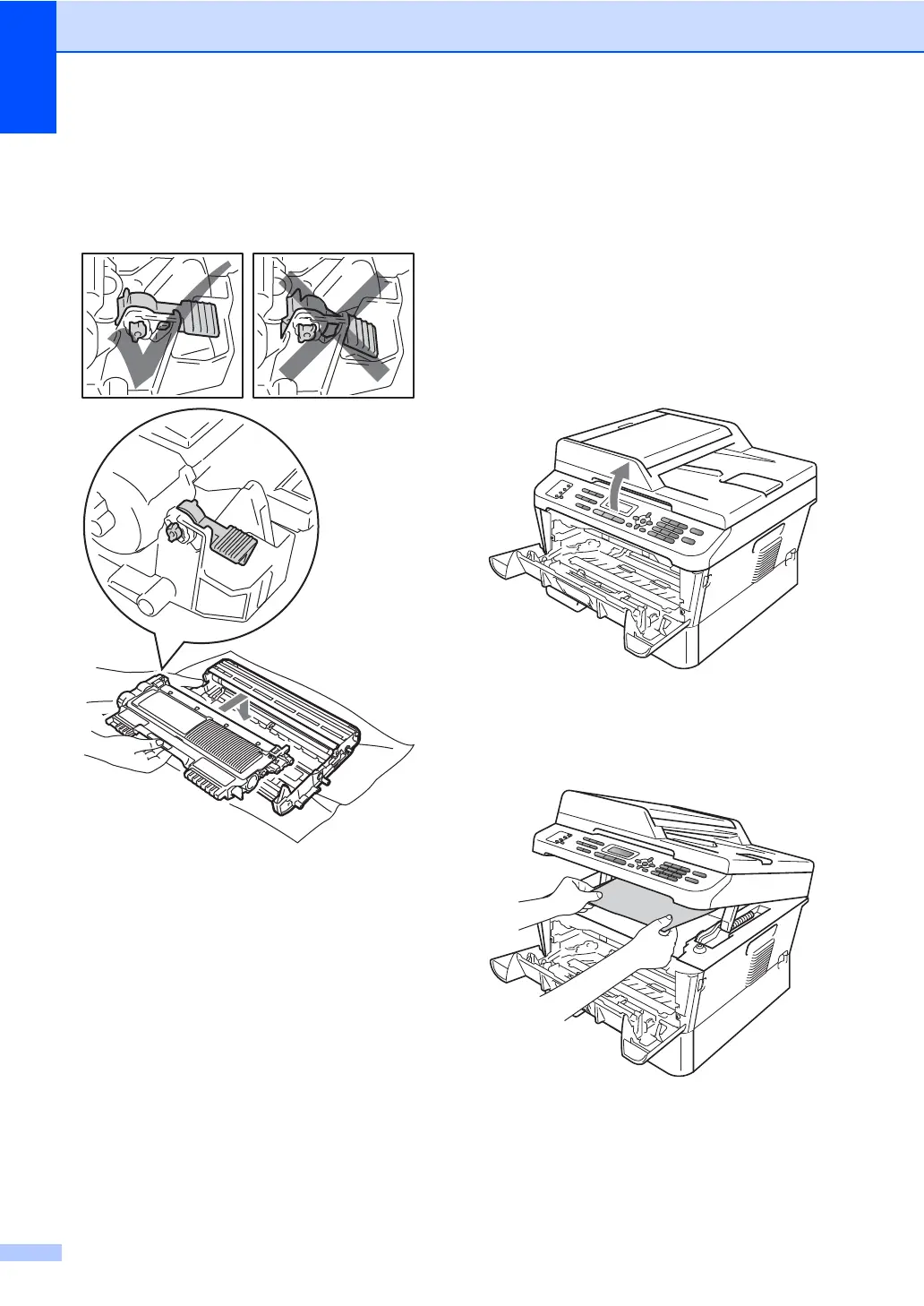

d Put the toner cartridge back into the
drum unit until you hear it lock into place.
If you put the cartridge properly, the
green lock lever will lift automatically.
e Do one of the following:
 If you were able to remove the drum
unit and toner cartridge assembly
and the jammed paper, then go to
step j.
 If you can not remove the drum unit
and toner cartridge assembly easily,
do not use extra force. Instead, lift
the scanner cover.
Use both hands to carefully pull the
jammed paper up and out of the output
tray opening.
f Close the scanner cover.

Brother MFC-7365DN Specifications

Printing Specifications

print technology	Electrophotographic Laser
print speed	Up to 24ppm
print resolution	Up to 1200 x 600 dpi

Copying Specifications

copy speed	Up to 24cpm
copy resolution	600 x 600 dpi
copy reduction/enlargement	25% - 400% in 1% increments

Scanning Specifications

scanner type	Color Flatbed with ADF
document glass size	8.5” x 11” (letter)
scan resolution	Optical: Up to 600 x 2400 dpi

Paper Handling

paper size maximum	Up to 8.5” x 14” (legal size)
paper input capacity maximum	250-sheet capacity paper tray, single-sheet manual feed slot
output capacity maximum	100 sheets (face down), 1 sheet (face up)

Weight and Dimensions

unit dimensions	15.9” W x 15.7” D x 12.4” H
unit weight	25.6 lbs.
carton weight	32.6 lbs.
carton dimensions	20.7” W x 20.1” D x 19.4” H
