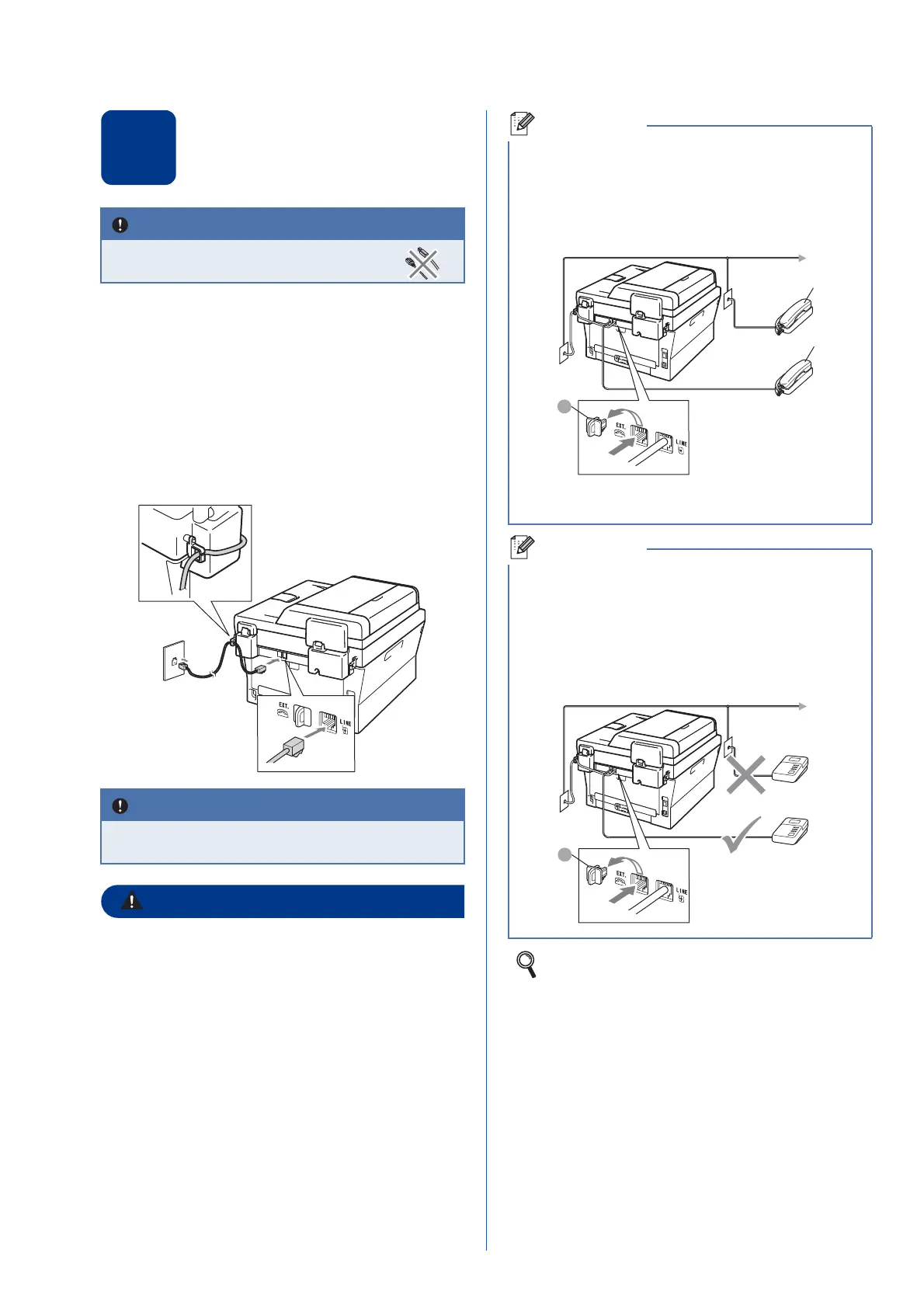

Connect the power cord
and telephone line
a Connect the AC power cord to the machine,
and then plug it into an AC power outlet.
b Turn on the machine’s power switch.
c Connect the telephone line cord. Connect one
end of the telephone line cord to the jack on the
machine marked LINE and the other end to a
modular wall jack.
The machine must be grounded using a
3-prong plug.
Since the machine is grounded through the
power outlet, you can protect yourself from
potentially hazardous electrical conditions on
the telephone network by keeping the power
cord connected to your machine when you
connect it to a telephone line. Similarly, you
can protect yourself when you want to move
your machine by disconnecting the telephone
line first and then the power cord.
DO NOT connect the interface
cable yet.
The telephone line cord MUST be connected
to the jack on the machine marked LINE.
If you are sharing one telephone line with an
external telephone, connect it as shown below.
Before you connect the external telephone,
remove the protective cap a from the EXT. jack
on the machine.
1 Extension telephone
2 External telephone
If you are sharing one telephone line with an
external telephone answering machine, connect it
as shown below.
Before you connect the external telephone
answering machine, remove the protective cap a
from the EXT. jack on the machine.
Set the receive mode to External TAD if
you have an external answering machine.
See Choose the correct Receive
Mode on page 8. For additional details, see
Connecting an external TAD (telephone
answering device) in the Basic User’s Guide.
