Brother MFC-J5335DW Service Manual

5-26
Confidential
(3) Enter the telephone number of the receiver machine and press the SET key again.
(4) The machine displays the "ACCEPTED" for approx. two seconds and starts dialing
to transfer data.
Notes: - Be sure to type the telephone number with the numerical keys. No auto-dial
numbers stored in memory can be used in this procedure.
- No station ID will be attached. A cover page and end page as shown below
will be automatically attached, instead.

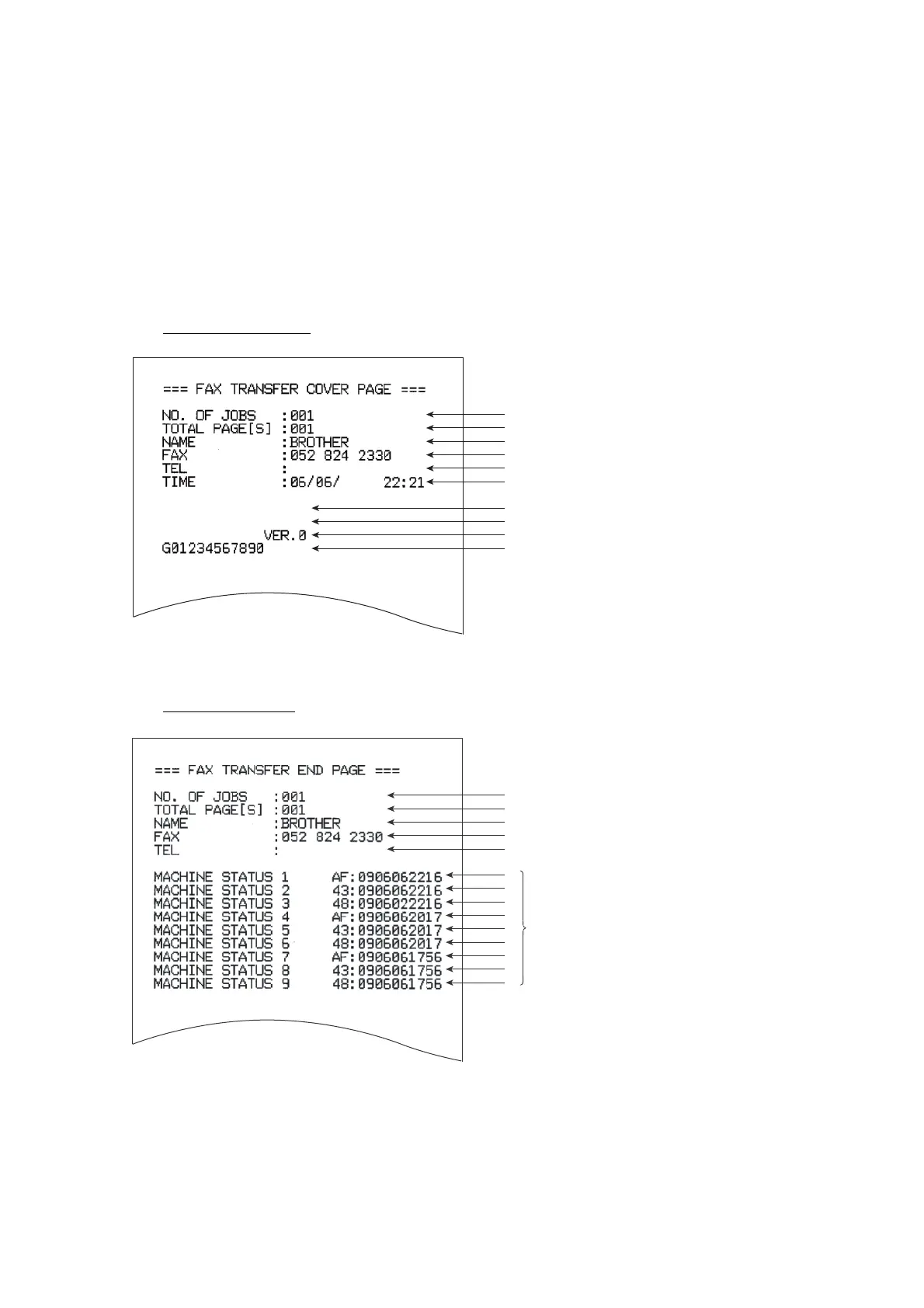

Cover page sample
End page sample
Job number for identification
Total number of pages to be transferred
Station ID registered in the sender equipment
FAX number of the sender equipment
Telephone number of the sender equipment
Transfer start date
Model code
Boot ROM info
ROM info
Serial number
8CH-221
B1603261602
U1604221449
2016
Error codes
Job number for identification
Total number of pages to be transferred
Station ID registered in the sender equipment
FAX number of the sender equipment
Telephone number of the sender equipment

Brother MFC-J5335DW Specifications

General

Digital sender	-
Printing colors	Black, Cyan, Magenta, Yellow
Maximum duty cycle	30000 pages per month
Recommended duty cycle	250 - 2000 pages per month
Number of print cartridges	4
Print technology	Inkjet
Maximum resolution	4800 x 1200 DPI
Poster printing function	Yes
Print speed (ISO/IEC 24734) mono	22 ipm
Print speed (ISO/IEC 24734) color	20 ipm
Time to first page (black, normal)	5.5 s
Time to first page (color, normal)	6 s
Print speed (black, normal quality, A4/US Letter)	35 ppm
Print speed (color, normal quality, A4/US Letter)	28 ppm
Copier resize	25 - 400 %
Maximum copy resolution	1200 x 4800 DPI
Maximum number of copies	99 copies
N-in-1 copy function (N=)	2, 4
Copy speed (black, normal quality, A4)	12 cpm
Copy speed (color, normal quality, A4)	9 cpm
Scan to	E-mail, E-mail Server, FTP, File, Image, OCR, USB
Scanner type	Flatbed scanner
Grayscale levels	256
Input color depth	48 bit
Maximum scan area	215.9 x 297 mm
Output color depth	24 bit
Scan speed (black)	14 inch/min
Image formats supported	JPEG XR, TIF
Maximum scan resolution	19200 x 19200 DPI
Document formats supported	PDF
Optical scanning resolution	1200 x 2400 DPI
Fax memory	200 pages
Modem speed	14.4 Kbit/s
Fax speed dialing (max numbers)	100
Photo paper sizes	9x13, 10x15, 13x18 cm
Paper tray media types	Coated paper, Glossy paper, Plain paper, Recycled paper
Paper tray media weight	64 - 220 g/m²
ISO A-series sizes (A0...A9)	A3, A4, A5, A6
ISO C-series sizes (C0...C9)	C5
Photo paper sizes (imperial)	3.5x5, 4x6, 5x7 \
Multi-purpose tray media types	Glossy paper, Plain paper, Recycled paper
Borderless printing media sizes	A3, A4, Ledger
Maximum ISO A-series paper size	A3
Auto Document Feeder (ADF) media weight	64 - 120 g/m²
Email protocols	APOP, IMAP4, POP3, SMTP
Wi-Fi standards	802.11b, 802.11g, Wi-Fi 4 (802.11n)
Security algorithms	64-bit WEP, 128-bit WEP, APOP, EAP-FAST, EAP-MD5, EAP-TLS, EAP-TTLS, FTPES, HTTPS, IPPS, PEAP, SMTP-AUTH, SNMP, SSID, SSL/TLS, WPA-AES, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-PSK
Mobile printing technologies	Apple AirPrint, Brother iPrint & Scan, Google Cloud Print, Mopria Print Service
Supported network protocols (IPv4)	ARP, RARP, BOOTP, DHCP, APIPA (Auto IP), WINS/NetBIOS Name Resolution, DNS Resolver, mDNS, LLMNR Responder, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client and Server, SNMPv1/v2c, TFTP server, SMTP Client, ICMP, Web Services (Print/Scan), CIFS Client, SNTP Client, POP3, IMAP4, HTTP Server
Supported network protocols (IPv6)	(Turned off as defalut) NDP, RA, mDNS, LLMNR Responder, DNS Resolver, LPR/LPD, Custom Raw Port/Port9100, IPP, FTP Client/Server, SNMPv1/v2, TFTP server, Web Services (Print/Scan), SMTP Client, POP3, CIFS Client, SNTP Client, IMAP4, ICMPv6, HTTP Server
Display	LCD
Control type	Touch
Product color	Black
Display diagonal	2.7 \
Market positioning	Business
Standard interfaces	Ethernet, USB 2.0, Wireless LAN
USB 2.0 ports quantity	1
Card reader integrated	No
Sound power level (standby)	50 dB
Power consumption (off)	0.04 W
Power consumption (ready)	5 W
Power consumption (sleep)	1.6 W
Power consumption (copying)	31 W
Power consumption (standby)	6.5 W
Power consumption (average operating)	29 W
Sustainability certificates	Blue Angel, ENERGY STAR
Package depth	467.36 mm
Package width	637.54 mm
Package height	436.88 mm
Package weight	20500 g
Operating temperature (T-T)	10 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Paper input type	Paper tray
Total input capacity	250 sheets
Multi-Purpose tray input capacity	100 sheets
Auto document feeder (ADF) input capacity	50 sheets
Mac operating systems supported	Mac OS X 10.10 Yosemite, Mac OS X 10.11 El Capitan, Mac OS X 10.9 Mavericks
Server operating systems supported	Windows Server 2008, Windows Server 2008 R2, Windows Server 2012, Windows Server 2012 R2
Windows operating systems supported	Windows 10 Education, Windows 10 Education x64, Windows 10 Enterprise, Windows 10 Enterprise x64, Windows 10 Home, Windows 10 Home x64, Windows 10 Pro, Windows 10 Pro x64, Windows 7 Enterprise, Windows 7 Enterprise x64, Windows 7 Home Basic, Windows 7 Home Basic x64, Windows 7 Home Premium, Windows 7 Home Premium x64, Windows 7 Professional, Windows 7 Professional x64, Windows 7 Starter, Windows 7 Starter x64, Windows 7 Ultimate, Windows 7 Ultimate x64, Windows 8, Windows 8 Enterprise, Windows 8 Enterprise x64, Windows 8 Pro, Windows 8 Pro x64, Windows 8 x64, Windows 8.1, Windows 8.1 Enterprise, Windows 8.1 Enterprise x64, Windows 8.1 Pro, Windows 8.1 Pro x64, Windows 8.1 x64, Windows Vista Business, Windows Vista Business x64, Windows Vista Enterprise, Windows Vista Enterprise x64, Windows Vista Home Basic, Windows Vista Home Basic x64, Windows Vista Home Premium, Windows Vista Home Premium x64, Windows Vista Ultimate, Windows Vista Ultimate x64
Harmonized System (HS) code	84433100

Weight and Dimensions

Depth	398 mm
Width	530 mm
Height	304 mm
