Initial Settings
Language
Settings
Set your text entry language.
[Settings] /
[Language] /
Select a language
/
Unit
Settings
Set the unit for various types of
adjustments.
[Settings] /
[Unit] /
[inch] / [mm]
/
Display
Brightness
Adjust the Display Brightness to make the
LCD easier to read.
[Settings] /
[Adjustment] /
[Display Brightness]
/
[-2] to [+2] /
Label View
Mode
Show the label preview while editing a
label.
[Settings] /
[Input Mode] /
[Label View]
/
Print
Preview
Mode
Preview the label before printing.
[Settings] /
[Input Mode] /
[Print Preview] /
Enter Text
Character
Setting Key
Switch the input method to Arabic,
English upper-case and lower-case.
New Line
Press to start a new line.
Maximum number of lines for each
tape width:
24 mm: seven lines
18 mm: ve lines
12 mm: three lines
9 mm, 6 mm: two lines
3.5 mm: one line
Block
+
Use this feature to include multiple
lines or font sizes on a single label.
Maximum: ve blocks
Delete Text
and Format
or
Delete text and formatting.
Delete one character at a time:
Delete all characters:
[Text Only] /
Delete all text and formatting:
[Text & Format] /
Label
Length
Set the label length you want.
[Auto]: Automatically adjusts the label
length to the length of the text.
[Length] /
Select a value /
Symbol
Characters
Inserts symbols, units, and pictures.
Select a category
/ Select a symbol
/
Accented
Characters
Select an entered character and convert it
to an accented character.
Enter characters
Select an accent
/
Frame Add a decorative frame to your label.
[Frame] /
Select a frame category
/ Select a frame
/
Change Font
Change
Font
Change the label font, size, width, style,
and alignment.
[Font/Size/Width/Style/Align]
Select a font type /
Select a value /
Change
Font Line
By Line
Change the line font, size, width, style,
and alignment.
Move the cursor to the line you want
to change
+ [Font/Size/
Width/Style/Align]
Select a font
type
/ Select a
value
/
Auto Fit
Style
Automatically adjust the text size to t the
label length.
[Text Size]: Adjust to the length of the
label.
[Text Width]: Adjust by condensing the
character width by half.
[Settings] /
[Auto Fit Style] /
[Text Size] / [Text Width]
/
Set Margins
Set
Margins
Set the margins before and after an
entered character.
[Small Margin]: Insert a margin of
approx. 23 mm before the rst label only,
and then insert margins of 2 mm between
the subsequent labels.
[Large Margin]: Insert an initial margin of
approx. 25 mm before and after the text
of each label.
[Chain]: Print multiple labels with minimal
margins. Insert a margin of approx.
23 mm before the rst label only, and
then insert margins of 2 mm between the
subsequent labels.
[No Cut]: Print multi-part labels or use
special tape, and then cut the labels
manually using the [Feed & Cut] function.
[Special Tape]: Use this setting when
printing on special tape.
[Cut Option]
/ Select the margin
type
/
Set Auto Format Layouts
Template Use your favourite designs as templates.
[Auto Format]
/ [Templates]
/ Select a template
category
/ Select a
template
/ Enter text
/
Block
Layout
Use block layout patterns as templates.
[Auto Format]
/ [Block Layouts]
/ Select the tape
width
/
Select a block layout
/
Enter text
/
Table
Format
Set the number of rows and columns to
create a label template.
[Auto Format]
/ [Table Format]
/ Select a tape
width
/ [Rows]
Set a value [Columns]
Set a value /
Enter text
/
Repeat for each text eld
/
Print Labels
Preview Use this feature to check the nal design
before printing.
Print
Start printing.
When printing a single label:
/ /
When printing multiple labels:
Select a print quantity
/ /
Numbering
Print
+
Set this feature when printing consecutive
alphanumeric characters to add a
serialised number to each label.
Enter alphanumeric characters
+ [Number]
/ Set the start
position
/ Set the
end position
/ Select
a print quantity
/ /
Mirror
Print
+
Print reversed from left to right.
Print on clear tape and attach it to the
inside of glass to create a label that can
be read from the outside.
Enter text
+
[Mirror]
/ / /
Barcode
Printing
Create a barcode and print it.
[Barcode] /
Select a setting item
Change the setting content
/ Enter barcode data
Select a signal
/ /
Other
Feed &
Cut
+
Feed approx. 23 mm of tape to remove
any slack, and then cut it.
+
Error Messages
Contact Information
Troubleshooting (cont.)
Message Cause/Remedy
Incorrect no. of digits The number of digits entered in the barcode data does not match
the number of digits set in the barcode parameters. Enter the correct
number of digits.
Cutter malfunction If the tape is jammed in the Cutter unit, remove the tape. Turn the
Label Printer o and then on again before continuing.
Label too long The printed label length using the text entered is longer than 999 mm.
Edit the text so that the label length is less than 999 mm.
Text too long The printed label length using the text entered is longer than the length
setting. Edit the text to t within the set length or change the length
setting.
System error XX Contact Brother customer service.
Problem Solution
The Label Printer does not
print.
• Check that the automatic Bluetooth re-connection setting of
another computer or mobile device is not enabled.
• Make sure no devices that emit radio waves (for example,
a microwave oven) are located nearby.
• Check that the correct printer driver is installed when printing from
a Windows computer.
• Connect the Label Printer to your computer using the USB Cable
(included) when printing from a computer.
• If the Print Head is dirty, clean it with a cotton swab or with the
optional Print Head Cleaning Cassette (TZe-CL4).
• The tape does not feed
correctly.
• The tape gets stuck
inside the Label Printer.
• If the tape is bent, cut o the bent section with scissors.
• If the tape is jammed, remove the Tape Cassette, remove the
jammed tape, and then cut o any damaged tape with scissors.
• Check that the end of the tape exits through the Tape Guide.
• Conrm that the tape is pointed at the Tape Exit Slot.
• Remove the Tape Cassette and insert it again.
An error occurred when
using a mobile app.
Go to your mobile application’s settings menu and select Support
page > FAQs & Troubleshooting.
The screen is locked, or
the Label Printer does not
operate normally.
See the Basic Operations section in this guide and reset the
Label Printer’s internal memory to the factory settings. If resetting
the Label Printer does not solve the problem, disconnect the AC
Adapter and remove the batteries for more than 10 minutes.
The LCD remains blank
after turning the power on.
Check that the batteries are correctly installed or that the AC
Adapter included with your Label Printer is correctly connected.
The Label Printer stops
while printing a label.
• Replace the Tape Cassette if striped tape is visible as this
indicates that you have reached the end of the tape.
• Replace all batteries or connect the AC Adapter directly to the
Label Printer.
Problem Solution
Previously saved label
les are not available.
All les saved in the internal memory are deleted if the batteries are
weak or the AC Adapter is disconnected.
• I cannot install the
Printer Driver even
if I follow the correct
procedure (Windows
only).
• I cannot see my printer
listed in P-touch Editor
even though I have
installed the Printer
Driver (Windows only).
If you cannot use your Label Printer even though you have installed
the Printer Driver:
1. Download the Printer Driver Uninstaller from your model’s page at
support.brother.com.
2. Use the Printer Driver Uninstaller to remove the printer
information.
3. Run the Printer Driver Installer again and follow the on-screen
instructions to proceed with the installation.
The ink ribbon is
separated from the ink
roller.
If the ink ribbon is broken, replace the Tape
Cassette. If it is not, leave the tape uncut and
carefully remove the Tape Cassette, and then wind
the loose ink ribbon back onto the spool.
Printed barcodes or QR
codes cannot be read.
• Change the tape. (Recommended: Black on white tape)
• Enlarge the barcodes or QR codes in the application you are
using.
I do not know the rmware
version of the Label
Printer.
Check the rmware information by pressing the following keys:
[Settings] / [Version Information]
/
The font size cannot be
increased.
The font is already the maximum size for the width of the label.
Or, the label length has been set, so there is a limit on the font size
to prevent exceeding the set length.
When multiple labels are
printed, the last label is cut
incorrectly.
When Chain Print is enabled, feed the tape to eject the last printed
label.
Spool
Visit www.brother.com for contact information on your local Brother oce.
Symbols and Frames
Set Margins
By default the printer creates a laminate margin of approx. 23 mm at the beginning of each label. To reduce this margin, print multiple
labels continuously.
You can also change the margin before and after the text for the second and subsequent labels when printing multiple labels.
Select [Chain] to print labels with the narrowest margin width. DO NOT feed the tape until the nal label is printed. When the nal
label prints, cut it manually using the [Feed & Cut] function.
Symbol Examples (
) Frame Examples ( [Frame])
...
Auto Format Layouts Examples ( [Auto Format])
Accented Character Examples (
)
For more information about symbols and frames, see the User’s Guide on the Brother support website at support.brother.com.
Large Margin
ABC ABC
2 mm 2 mm
Approx.
23 mm
Approx.
23 mm
2 mm 2 mm
Approx.
23 mm
Approx.
23 mm
ABC A
: Print area : Margin : Laminate Margin
Chain
2 mm 2 mm Cut Position
Approx.
23 mm
2 mm
ABC ABC
No Cut
ABC ABC
2 mm 2 mm
Approx.
23 mm
2 mm
Special Tape
ABC ABC
2 mm 2 mm
2 mm
2 mm
Approx.
23 mm
Small Margin
When the label length is approx. 23 mm
or more
Approx.
23 mm
2 mm
2 mm
2 mm 2 mm
ABC ABC
Small Margin
When the label length is approx. 23 mm
or less
Approx.
23 mm
A A
2 mm
2 mm Approx.
23 mm

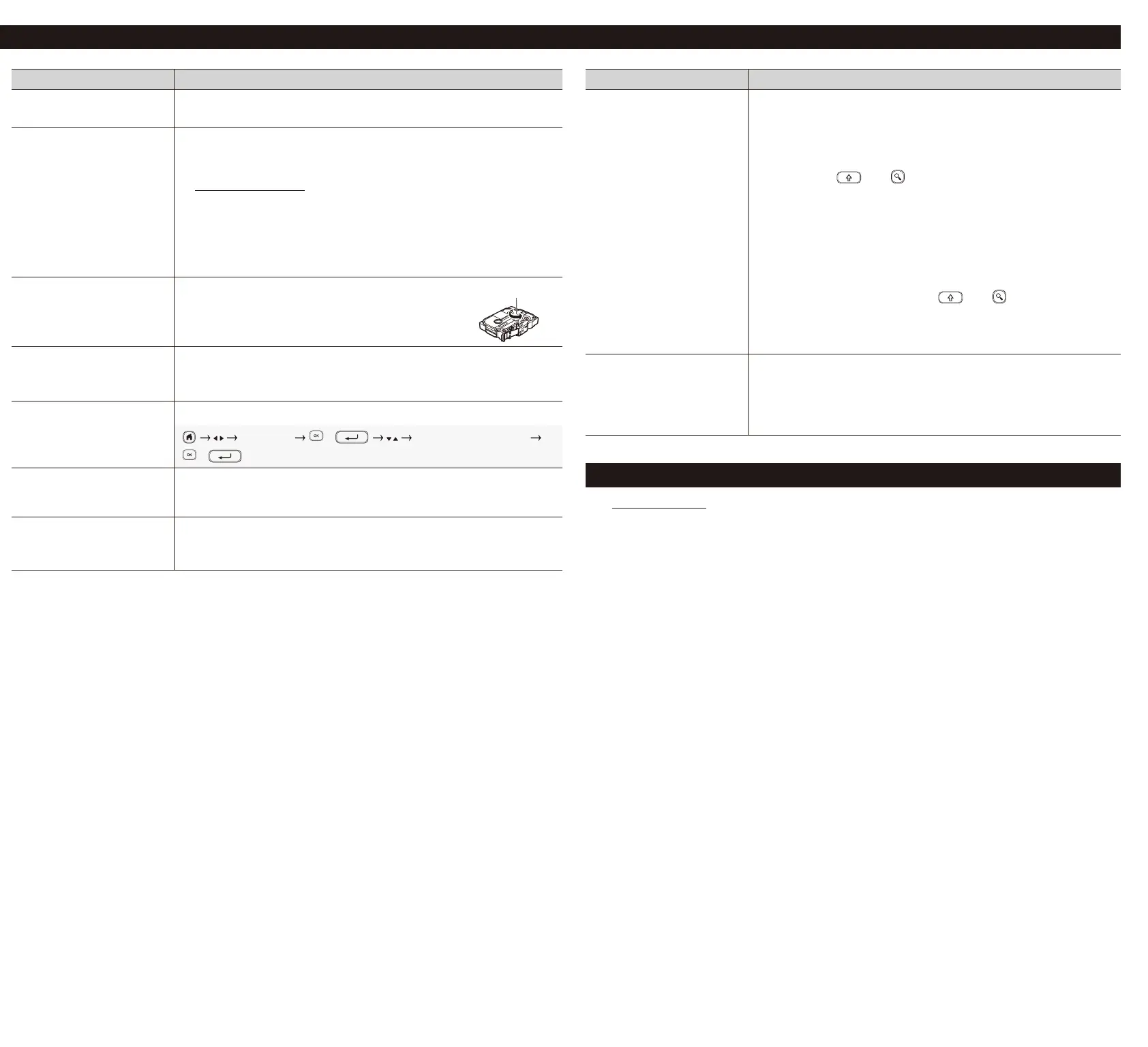

Problem Solution
When the label is printed,
there is too much margin
(space) on both sides of
the text.
• See the Set Margins section in this guide and select [Small
Margin], [Chain] or [No Cut] for smaller margins.
When you set [Small Margin], the Label Printer feeds approx.
23 mm of leader tape before every new label.
To save tape, select the [Chain] setting. After the last label
prints, press
and simultaneously to feed and cut the
tape.
• The Label Printer feeds approx. 23 mm of tape before every
new label. When printing multiple labels, you can reduce the
blank space on the second and subsequent labels.
Select the [Chain] setting in the optional print settings. Then,
print your labels and leave the last label in the Label Printer until
you are ready to print a new label.
• After the last label prints, press
and simultaneously to
feed the tape, and then eject and cut the last label. Note that
the Label Printer will feed approx. 23 mm of tape before the
next new label when you use this method.
I cannot update the
printer’s rmware using the
P-touch Update Software,
Transfer Express, or Mac
Update Tool.
Restart the printer and then try to update the rmware again.
Do not press any buttons during the rmware update.
Other (cont.)
Save Save your labels and access them later to
edit and print them, as well as overwrite
and save edited data.
Maximum number of saved labels: 99 les
Maximum character count per le:
280 characters
Create a label
[Save]
/
Select a save destination
/
Reset Reset the internal memory, for example,
to reset the Label Printer or delete any
saved label data.
[Settings] /
[Reset] /
Select a reset method
/
Conrmation message
/
Troubleshooting
If you need additional help, visit support.brother.com.
Problem Solution
The Label Printer
does not print.
• Check that the Tape Cassette is inserted correctly.
• If the Tape Cassette is empty, replace it. To order supplies and
accessories, visit www.brother.com.
• Check that the Tape Cassette Compartment Cover is securely
closed.
• Check that the Label Printer is on.
• Check that the computer’s or mobile device’s Bluetooth setting is on.
• Check that the Label Printer is connected to your computer or mobile
device via Bluetooth.
• Check that the Label Printer is selected in the Brother iPrint&Label
app.
• Check that the Label Printer is not paired with another device.
• Make sure the Label Printer and your mobile device or computer are
close enough to communicate.
For more information about using your Label Printer, see the User’s Guide on the Brother support website at
support.brother.com.
Basic Operations support.brother.com/manuals
Enter Text (cont.)
To Previous Page
Loading...
Need help?
General
