24
BOAT RIGGING
REMOTE OIL TANK INSTALLATION (V4 – V6)

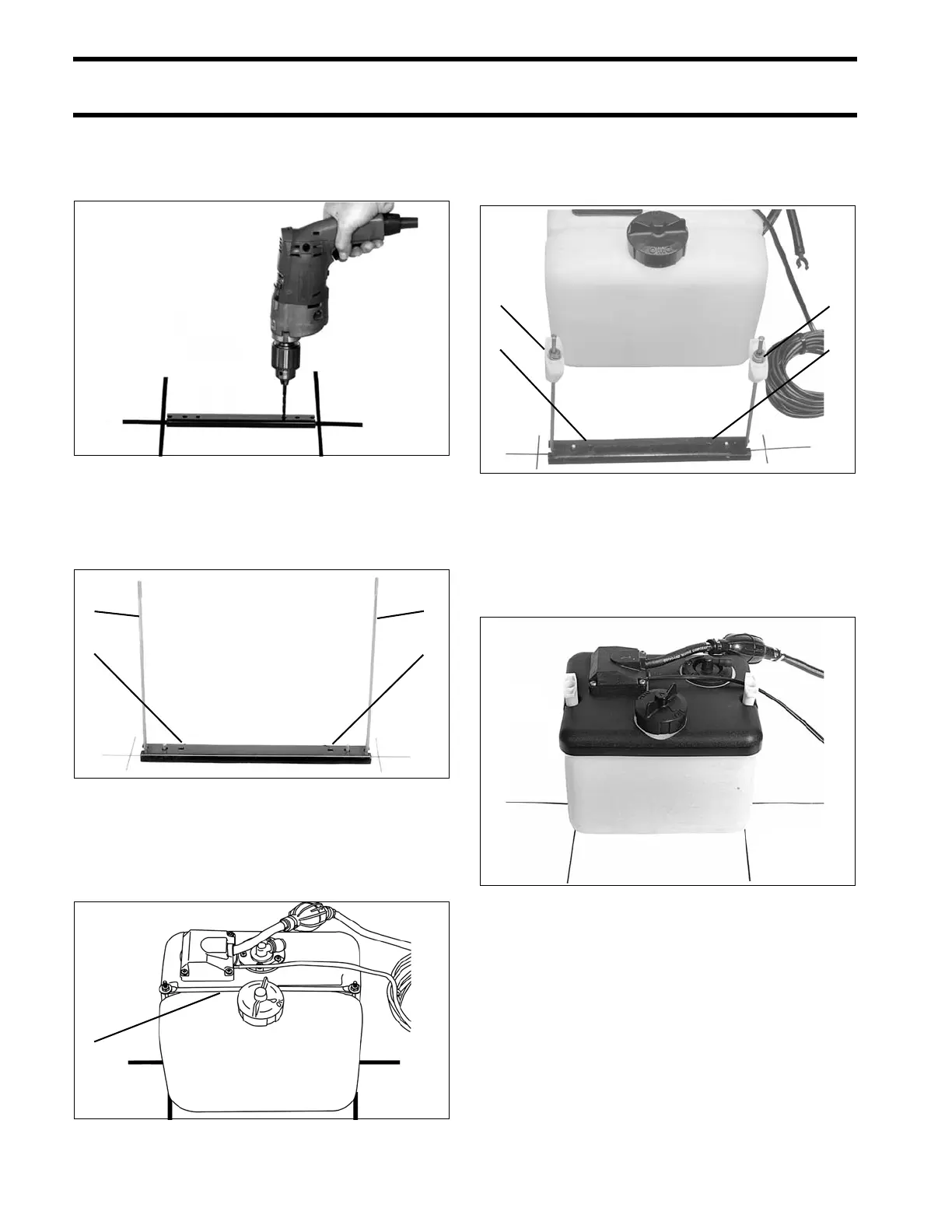

Place floor bracke t on ce nter line be tween e nd
lines. Use the inner bracket holes as guides to drill
two 5/32 in. (4 mm) pilot holes.
3 GALLON (11.4 L) TANK
Place rods into floor bracket and secure floor
bracket with lag bolts.
Place oil tank onto floor bracket. Assemble cross-
bar onto hook rod s, install flat washers and lock-
nuts. Tighten locknuts to securely hold tank.
1.8 GALLON TANK
Place rods in to floor bracket and se cure flo or
bracket with lag bolts.
Place oil t ank on to flo or bracket. If cover is n ot
pre-assembled, route oil supply hose and harness
through t he cover and position co ver on the oil
tank. Attach spring-loaded rods to cover.
COB5381
1. Rods
2. Lag bolts
22241B
1. Crossbar DRC7418
1. Rods
2. Lag bolts
22149A
48704
