150
ELECTRICAL AND IGNITION
ELECTRIC STARTER TESTS
ELECTRIC STARTER
TESTS

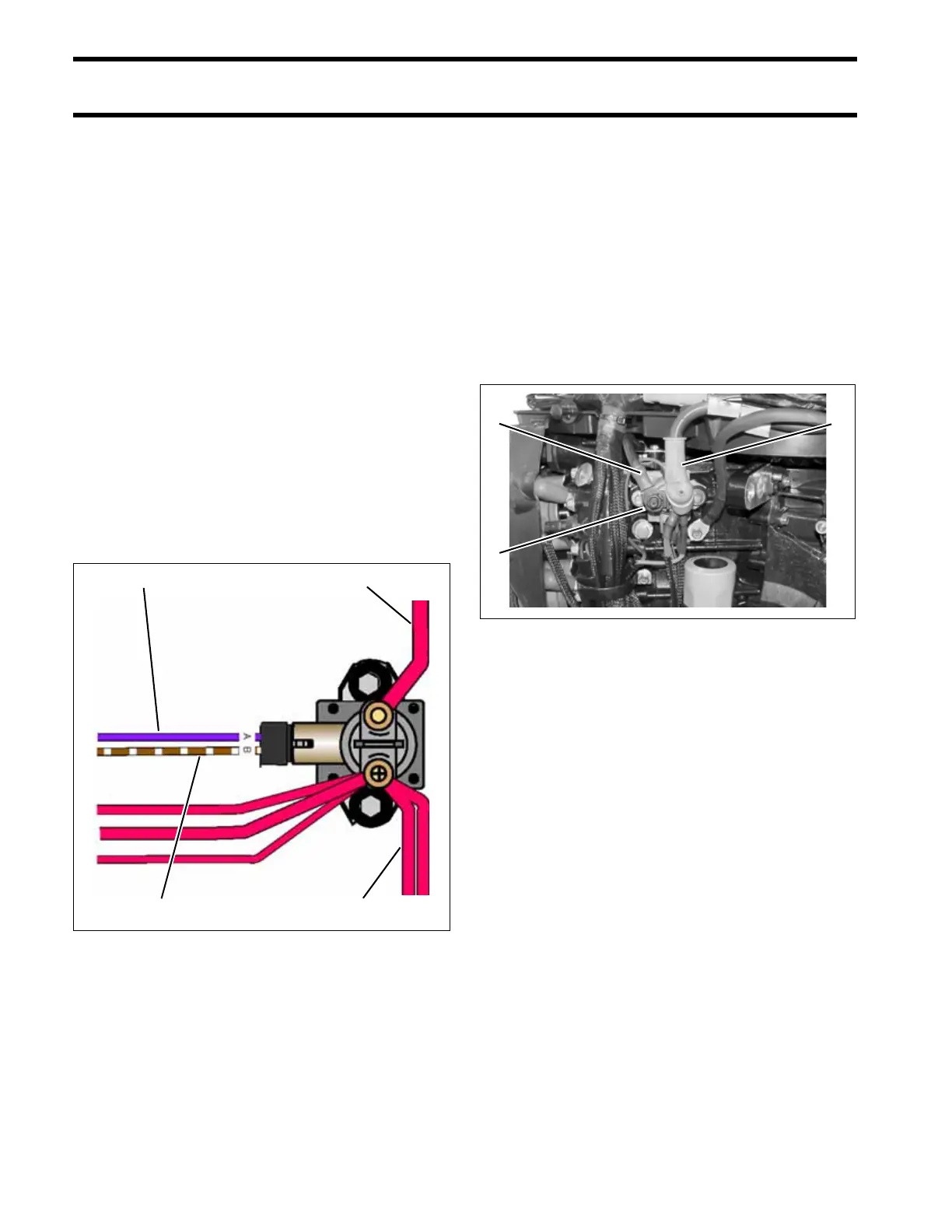

Starter Solenoid Test
Disconnect the B+ (POS) battery cable at the bat-
tery.
IMPORTANT: Disconnect all wiring from sole-
noid terminals before proceeding with this test.
Use an ohmmeter to measure resistance.
STEP 1
Put one ohmmeter lead on the starter positive (+)
cable terminal and the other ohmmeter lead on
the battery positive (+) cable terminal:
• Ohmmeter must not show continuity (high read-
ing).
• If ohmmeter shows continuity (low reading),
replace the solenoid.
STEP 2
Apply B+ to terminal “A” of solenoid and ground
(NEG) to terminal “B” of solenoid. Measure resis-
tance between the starter positive (+) cable termi-
nal and the positive battery (+) cable terminal.
• The solenoid must close with an audible click.
• Ohmmeter must show continuity (low reading).
• If ohmmeter shows no continuity (high reading),
replace the solenoid.
After re-installing the solenoid, coat all wires and
terminals with Black Neoprene Dip.
No Load Current Draw Test
Securely fasten starter in a vise or suitable fixture
before proceeding with this check.
Use a battery rated at 500 CCA (60 amp-hr) or
higher that is in good condition and fully charged.
IMPORTANT: The driven gear and pinion
assembly must be removed for this test.
1. “A” terminal, B+ (purple)
2. “B” terminal, NEG (brown/white)
3. Starter positive (+) cable terminal
4. Battery positive cable (B+) terminal
004121
14
2 3
1. Starter solenoid
2. Starter cable
3. POS battery cable
005320
32
1
