Remove the two trim rod rollers from the swivel
bracket.
Remove the tilt support and bushing from the
swivel bracket and inspect the detent roller and
spring.
Assembly
IMPORTANT: Before proceeding, make sure all
components have been thoroughly cleaned.
Replace any seals that have been removed.
Inspect all thrust washers and bushings for evi-
dence of deterioration.
Install the detent roller and spring and the tilt sup-
port with bushing in the swivel bracket. Torque
bushing to 28 to 30 ft. lbs. (37.9 to 40.7 N·m).

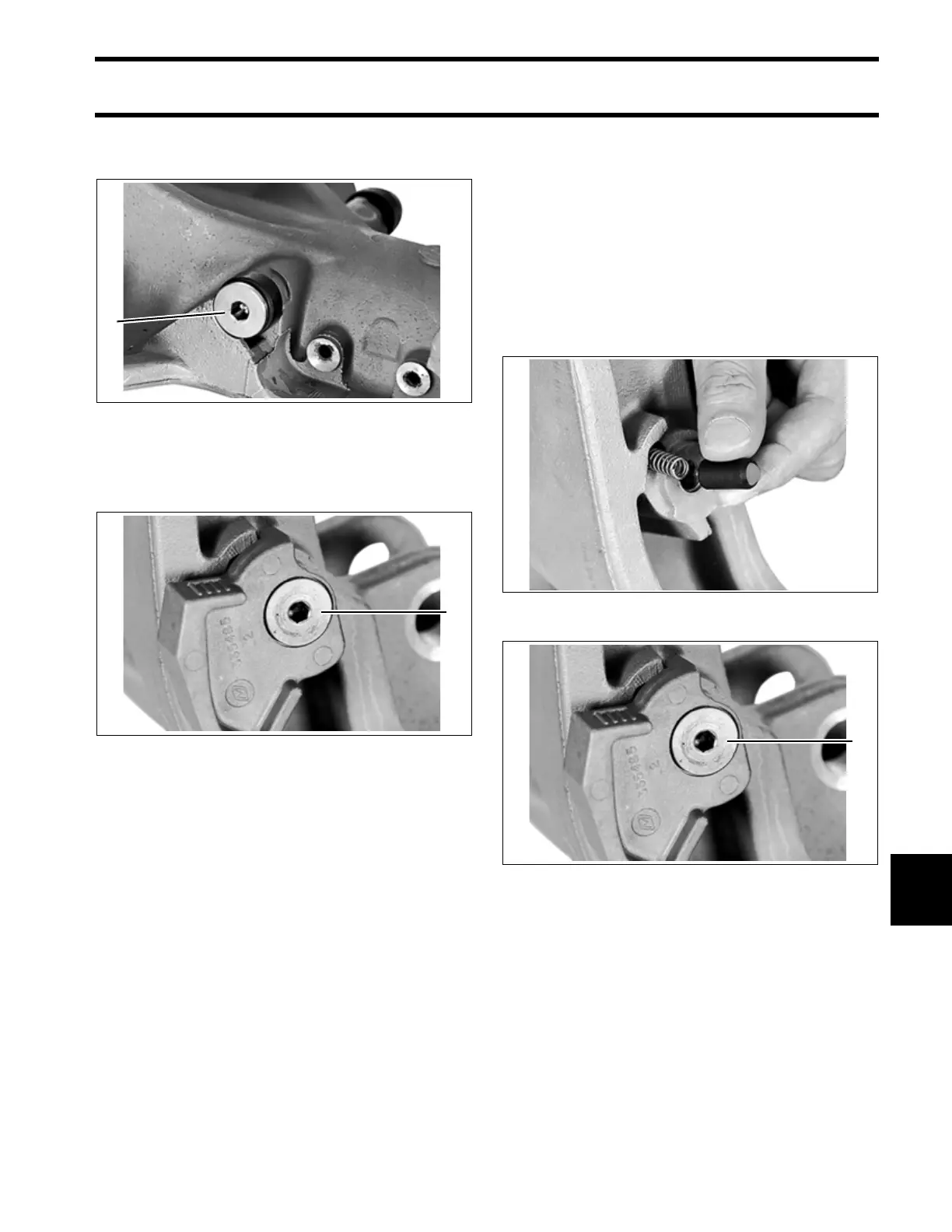

1. Trim rod roller 30754
1. Tilt support bushing 30753
1
1
30752
1. Tilt support bushing 30753
1
