OILING SYSTEM
COMPONENTS
203
8

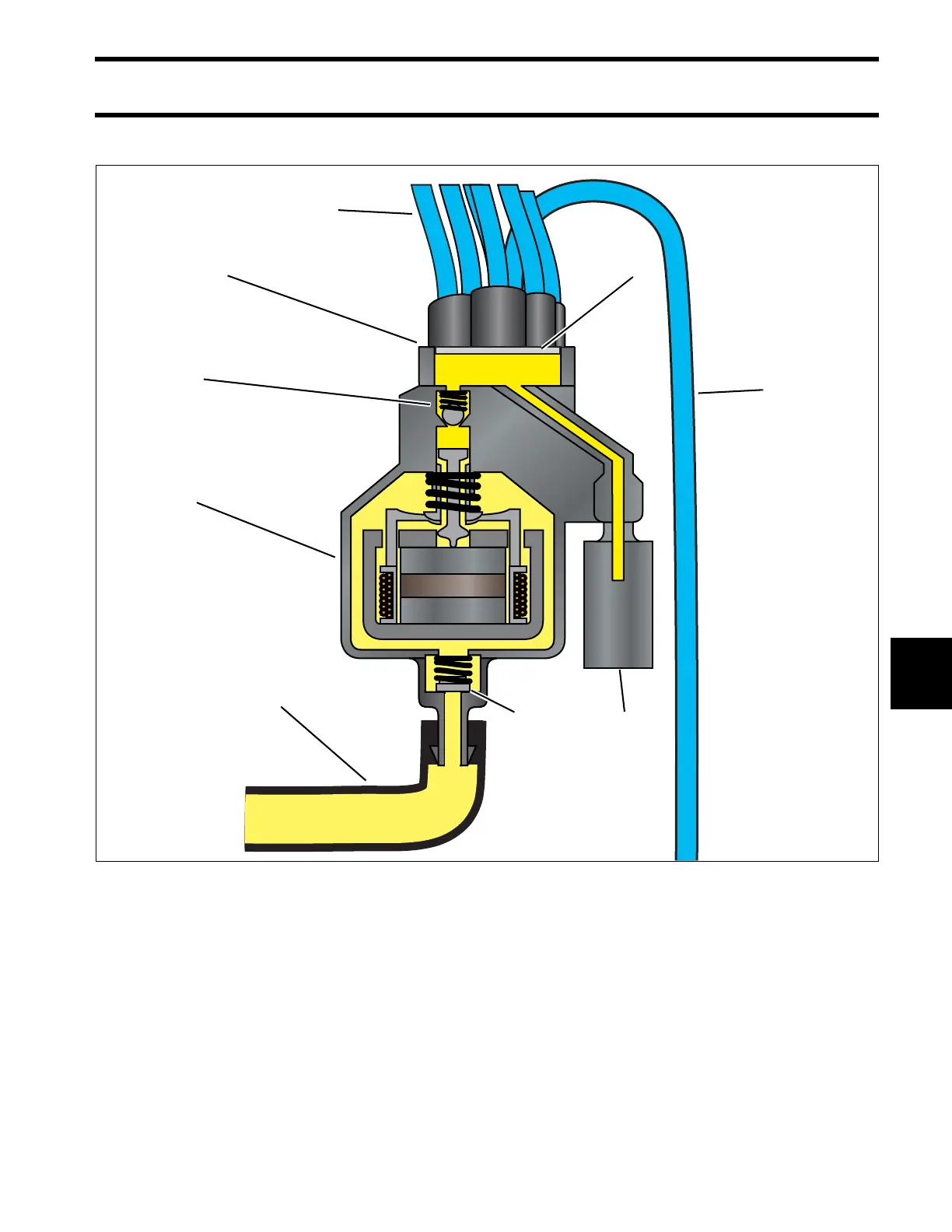

Oil Injection Pump Diagram
1. Oil supply hose
2. Inlet check valve
3. Oil injection pump
4. Injection pump check valve
5. Oil distribution manifold
6. Filter (screen type)
7. Oil pressure sensor
8. Oil distribution hoses to individual cylinders
9. Oil distribution hose to rear manifold
004296r
3
2
1
4
5
6
9
8
7
