GEARCASE
SERVICE CHART
303
12

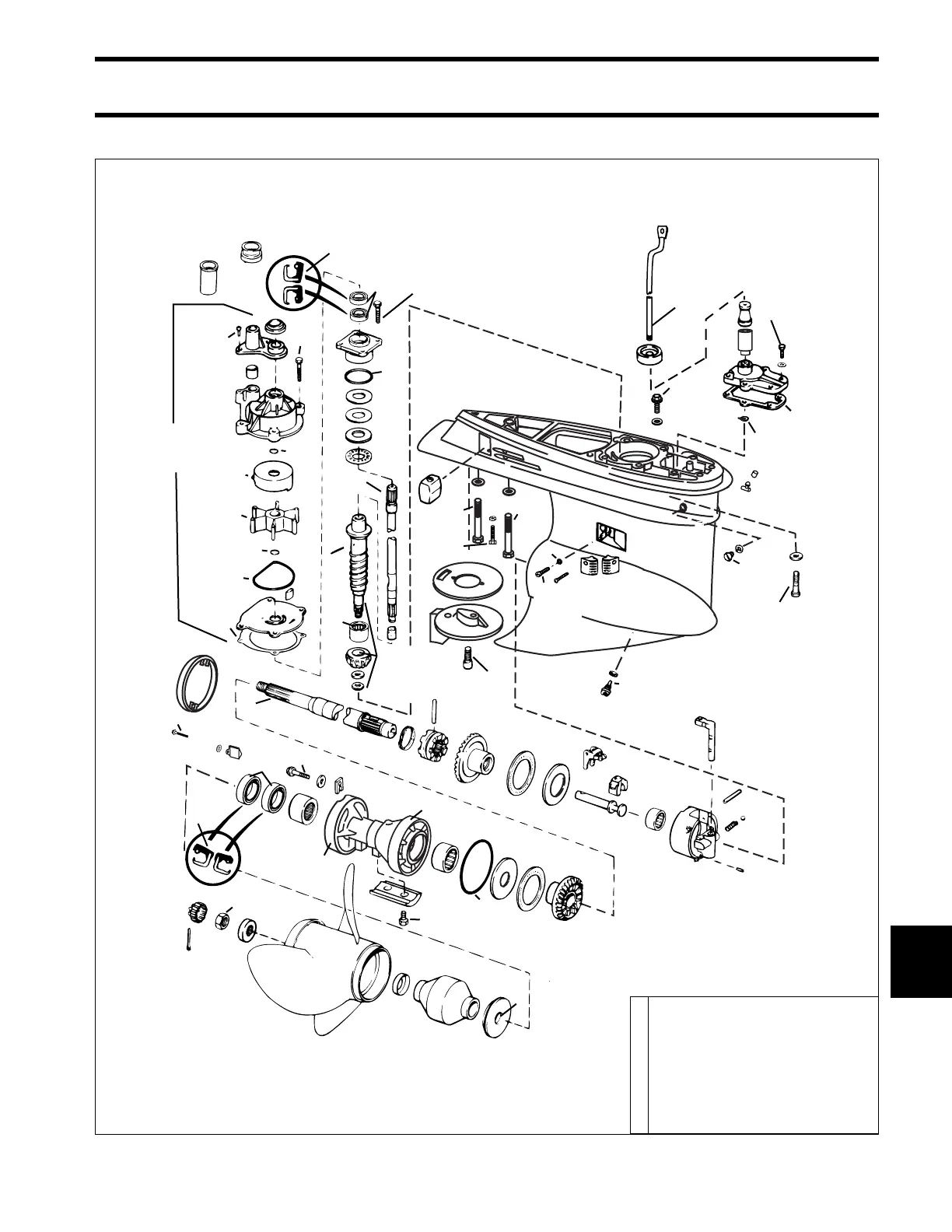

V4/V6 25 IN. MODELS, STANDARD ROTATION “M”–TYPE GEARCASE
A
A
B
E
E
B
B
B
A
B
108-132 In. lbs.
(12-15 N•m)
18-20 Ft. lbs. (24-27 N•m)
15-20 In. lbs. (1.7-2.3 N•m)
70-80 Ft. lbs.
(95-109 N•m)
100-110 Ft. lbs.
(136-149 N•m)
Use Gearcase
Lubricant on threads
only, taper must be
clean and dry.
35-40 Ft. lbs.
(47-54 N•m)
G
See Water Pump
Assembly instructions
B
C
A
D
B
C
E
60-84 In. lbs.
(6.8-9.5 N•m)
24-36 In. lbs.
(2.7-4.1 N•m)
B
D
A
B
B
10-12 Ft. lbs.
(13.6-16.3 N•m)
26-28 Ft. lbs.
(35-38 N•m)
26-28 Ft. lbs.
(35-38 N•m)
40-50 Ft. lbs.
(54-68 N•m)
B
B
A
60-84 In. lbs.
(6.8-9.5 N•m)
E
B
A
18 In. lbs.
(2.0 N•m)
Then 10-12 In. Lbs
(Then 1.1-1.4 N•m)
F
60-84 In. lbs.
(6.8-9.5 N•m)
26-28 Ft. lbs.
(35-38 N•m)
60-84 In. lbs.
(6.8-9.5 N•m)
B
B
F
60-84 In. lbs.
(6.8-9.5 N•m)
DSS131
A Triple-Guard Grease
B Gasket Sealing Compound
C Adhesive 847
D Moly Lube
E Red Ultra Lock
F Blue Nut Lock
G Needle Bearing Grease
