26
ROUTINE SERVICE
OUTBOARD RIGGING CONNECTIONS
3 CYLINDER MODELS
EMM CANbus connector cap is clipped to EMM
cooling water hose. Remove clip from cap and
install on I-Command harness connector.
Install clip and connector to hose.
ALL MODELS
Adjust harness routing as needed and secure with
tie straps.
Use an I-Command Ignition and Trim Harness to
connect the outboard to the key switch and trim/tilt
control. Seal unused SystemCheck connector
with 6-Pin Connector Seal, P/N 586076.
If connecting to an existing I-Command Classic
network, connect the purple wires between the I-
Command Ignition and Trim Harness and the I-
Command Engine Interface Cable. This connec-
tion supplies power to the network when the key
switch is on. I-Command Digital networks do not
use this connection.

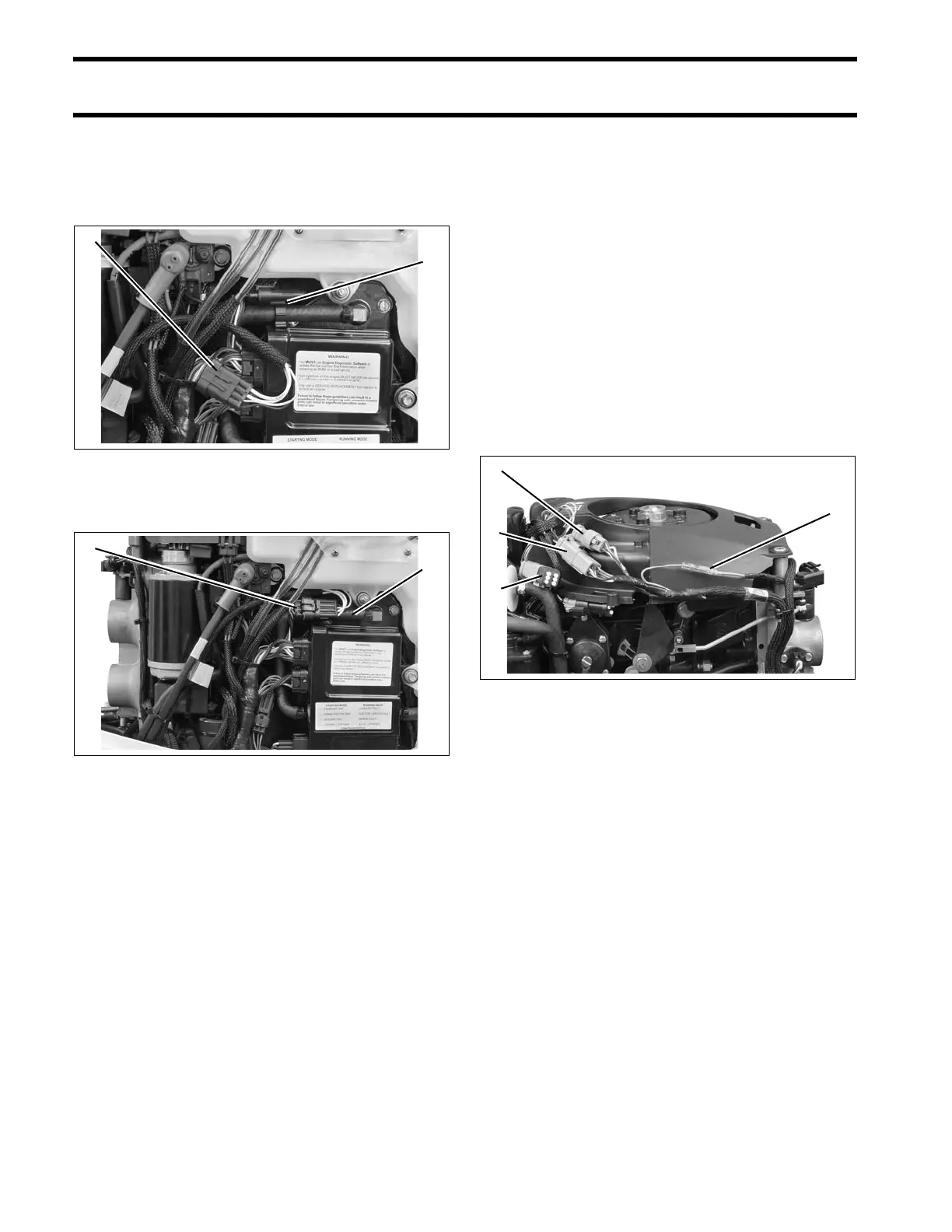

1. Canbus harness connector
2. EMM CANbus connector cap and clip
006743
1. CANbus connectors
2. EMM cooling water hose
006744
2
1
2
1
1. Trim/Tilt connector
2. CANbus Ignition connector
3. SystemCheck connector (with seal)
4. Deutsch-style harness power connector
006734
4
1
2
3
