BRUNSWICK INSTALLATION MANUAL PAGE 13
BLACK WOLF PRO
RAIL AND APRON ASSEMBLY

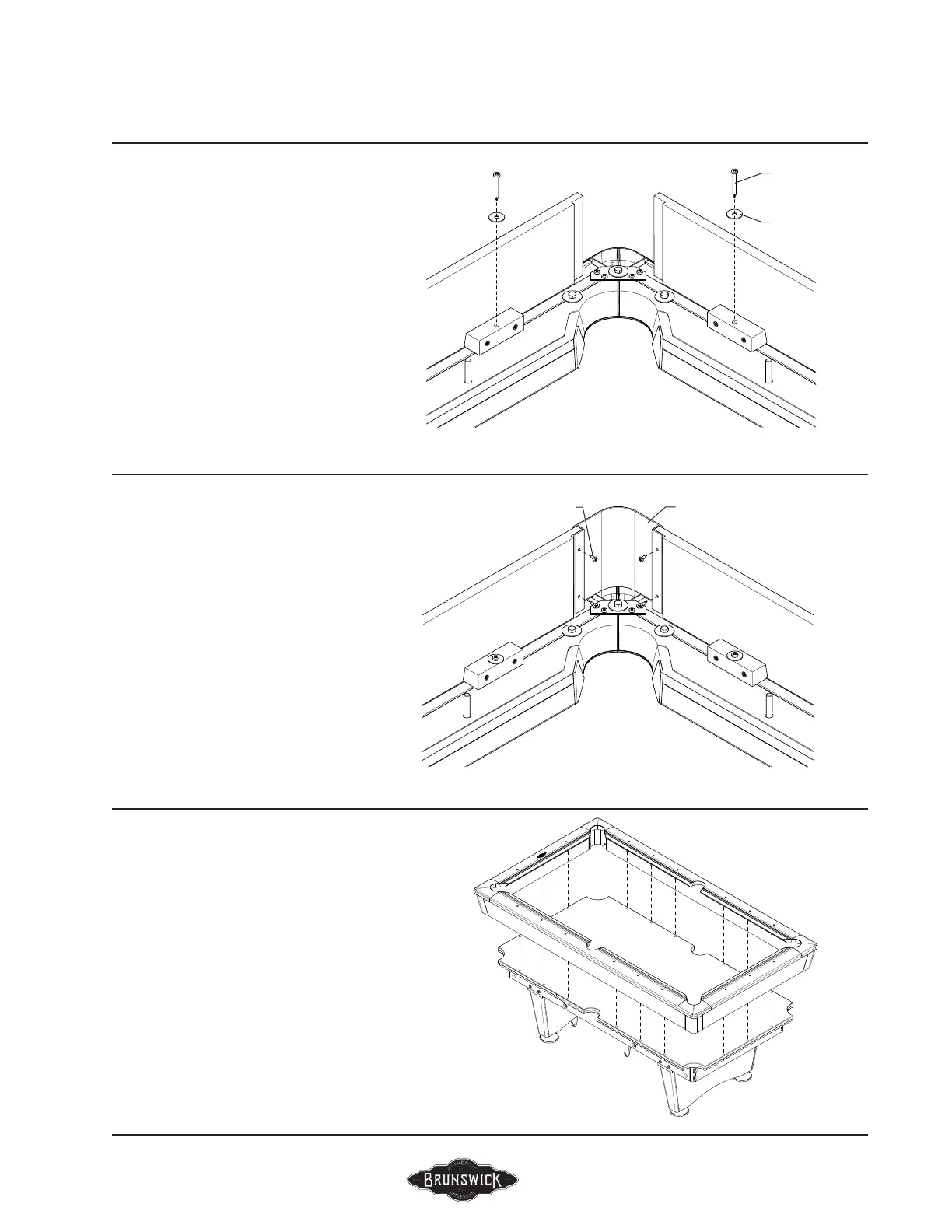

FIGURE ONE
Step #1: With the rails remaining face down, attach
aprons as shown. Aprons must overhang equally at
each end.
FIGURE ONE
FIGURE TWO
Step #2: Carefully slide an apron corner extrusion over
the ends of the aprons. Attach as shown.
FIGURE TWO
FIGURE THREE
Step #3: Position the rail and apron assembly over the
table as shown. Carefully align the rail studs through
the holes located on the slate.
NOTE: Do not attempt to do this without the aid of
another person.
FIGURE THREE
#12 x 2”
PAN HEAD SCREW
#12 FLAT WASHER
(9/16” O.D.)
APRON CORNER
EXTRUSION
#8 x 1/2” PAN
HEAD SCREW
(CONTINUED)
To Next Page
