PAGE 4 BRUNSWICK INSTALLATION MANUAL
BLACK WOLF PRO
BASE FRAME AND LEG ASSEMBLY
(CONTINUED)

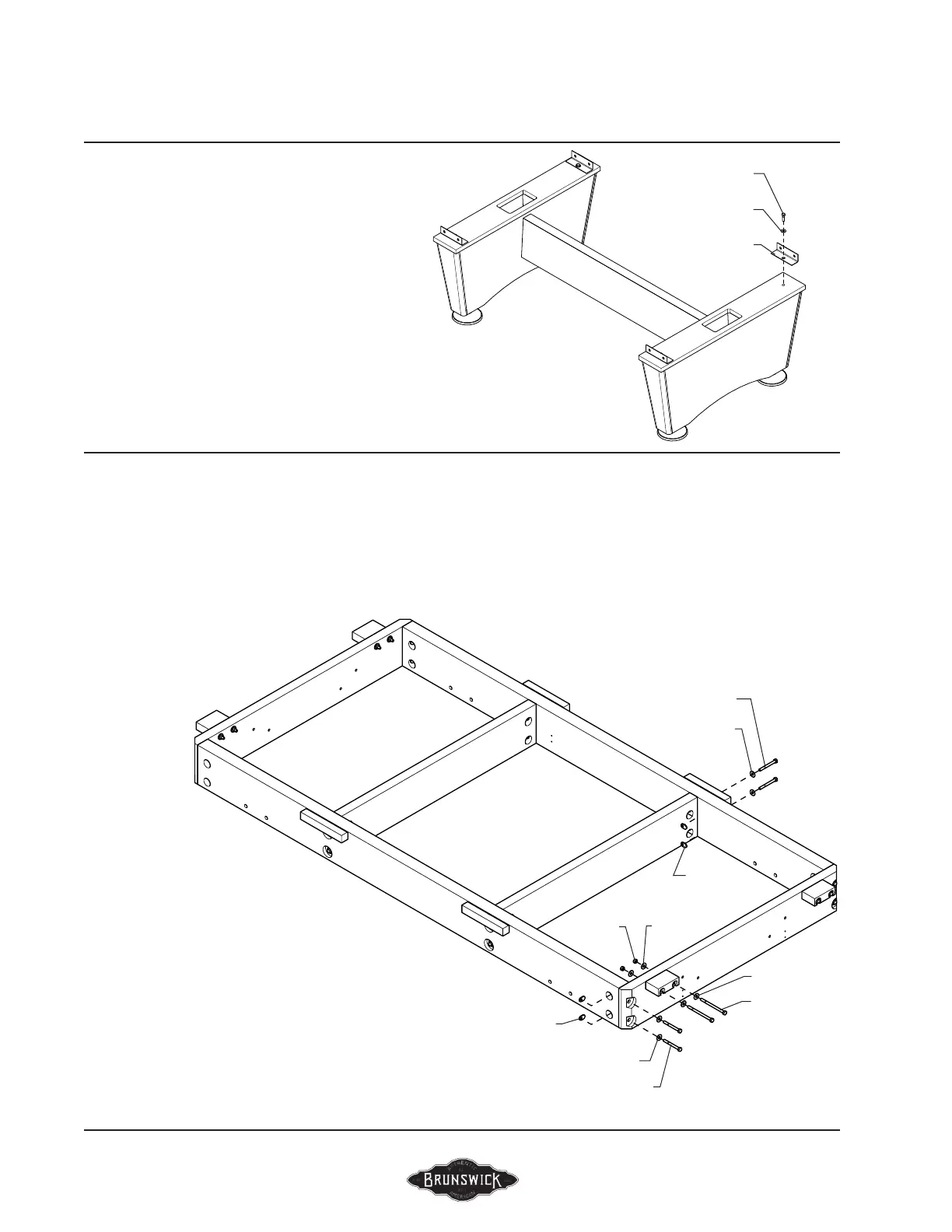

FIGURE THREE
Step #4: Loosely attach the four leg attach brackets to
the top of the legs with 3/8-16 x 1”-1/2” hex head screws
and 3/8 at washers.
FIGURE THREE
FIGURE FOUR
Step #7: Loosely attach the two side sills to the two end
sills and two cross supports with 5/16-18 x 3” hex head
screws, 5/16 at washers and 5/16-18 threaded nut
plates.
Step #8: Securely attach the two slate attach cleats to
each end sill with 5/16-18 x 4-1/2” hex head screws, 5/16
at washers and 5/16 -18 hex nuts.
FIGURE FIVE
3/8 WASHER
3/8-16 X 1-1/2”
HEX HEAD CAP
SCREW
LEG ATTACH
BRACKETS
(4 PLCS.)
5/16-18
THREADED
NUT PLATE
5/16-18
THREADED
NUT PLATE
5/16-18 x 3”
HEX HEAD SCREW
5/16 FLAT WASHER
5/16-18 x 4-1/2”
HEX HEAD SCREW
5/16 FLAT WASHER
5/16 FLAT
WASHER
5/16-18
HEX NUT
CROSS SUPPORT
SIDE SILL
END SILL
CROSS SUPPOR
T
END SILL
SIDE SILL
5/16 WASHER
5/16-18 x 3”
HEX HEAD SCREW
