BRUNSWICK INSTALLATION MANUAL PAGE 5
BLACK WOLF PRO
BASE FRAME AND LEG ASSEMBLY
(CONTINUED)

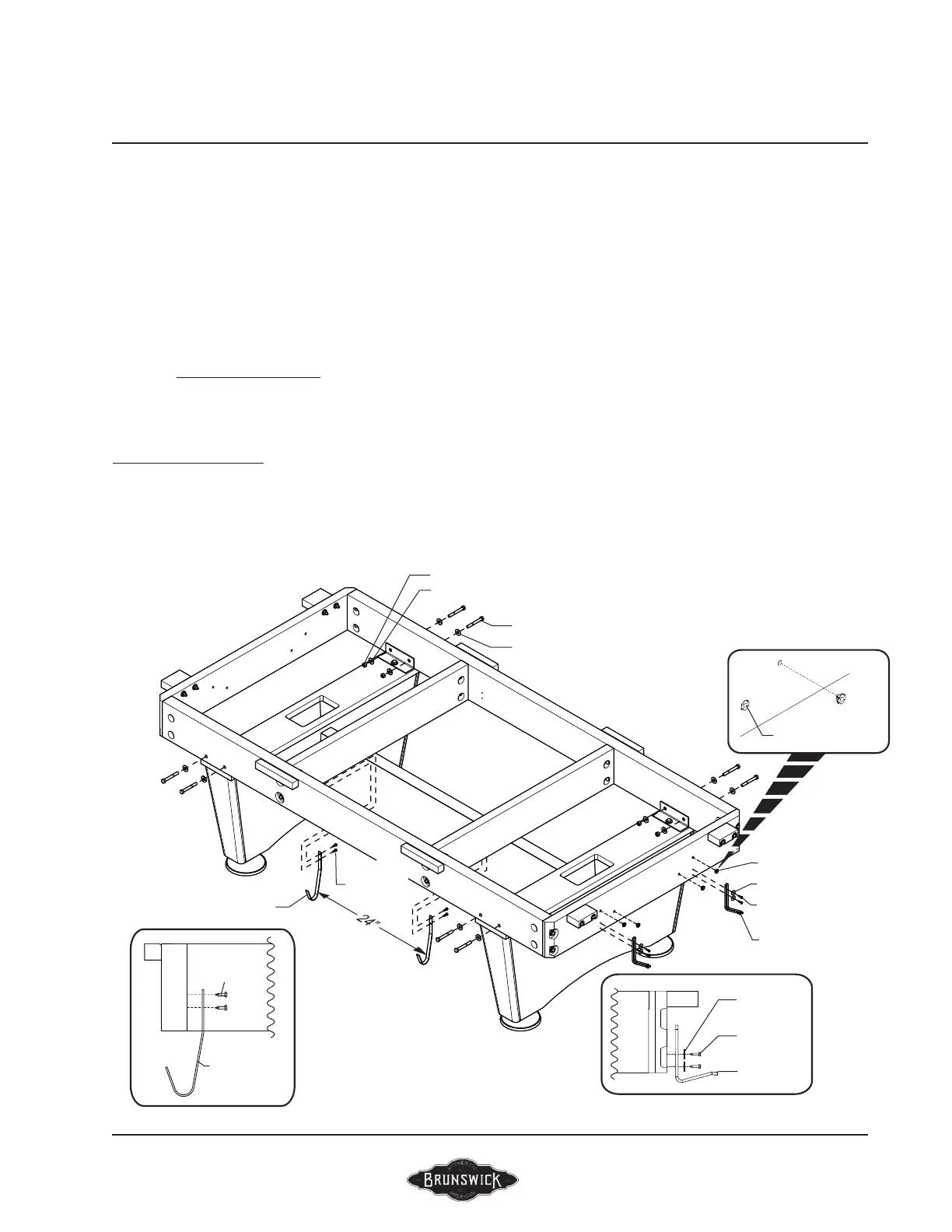

FIGURE FIVE
Step #9: Carefully lower base frame over the legs and leg
brackets.
Step #10: Align clearance holes in attach brackets with
clearance holes in the side sills and attach securely with
3/8-16 x 3” hex head cap screw, 3/8 at washers and 3/8-
16 hex nuts.
Step #11: Securely tighten all base frame hardware,
making sure that all top surfaces are ush.
Step #12: Drop Pocket Table Only: Attach the triangle
Step #13: Attach two bridge rack brackets to the base
frame side sill, with #10 x 3/4” pan head screws.
FIGURE FIVE
Pilot holes provided.
brackets to the designated foot end base frame sill using
four #10 x 3/4” pan head screws and #6 fender washers,
pilot holes are provided.
Gully Pocket Table Only: Install four 1/4-20UNC tee-nuts
into the mounting holes for the receiver box attachment.
Tee-nuts will need to be installed on the exterior face of the
designated foot end base frame sill with a hammer.
3/8-16 x 3” HEX HEAD CAP SCREW
3/8 FLAT WASHER
3/8-16 HEX NUT
3/8 FLAT WASHER
BRIDGE RACK BRACKET
#6 FENDER WASHER
#10 X 3/4”
PAN HEAD SCREW
TRIANGLE BRACKET
#10 X 3/4”
PAN HEAD
SCREW
BRIDGE RACK
BRACKET
#6 FENDER
WASHER
#10 X 3/4”
PAN HEAD
SCREW
TRIANGLE
BRACKET
#10 X 3/4”
PAN HEAD
SCREW
1/4-20UNC T-NUT
1/4-20UNC TEE-NUT
