4
FURNACE
SIZE
A
CABINET
WIDTH
IN. (mm)
B
OUTLET
WIDTH IN.
(mm)
C
TOP &
BOTTOM FLUE
COLLAR
IN. (mm)
D
BOTTOM
INLET WIDTH
IN. (mm)
VENT
CONNECTION
SIZE
IN. (mm)
SHIPPING
WT.
LB (KG)
ACCESSORY
FILTER MEDIA
CABINET SIZE
IN. (mm)
036070 14-3/16 (360) 12-9/16 (319) 9-5/16 (237) 12-11/16 (322) 4 (102) 115 (52) 16 (406)
048090 17-1/2 (445) 15-7/8 (403) 11-9/16 (294) 16-1/8 (410) 4 (102) 130 (59) 16 (406)
060110 21 (533) 19-3/8 (492) 13-5/16 (338) 19-1/2 (495) 4 (102) 155 (70) 20 (508)
066135 24-1/2 (622) 22-7/8 (581) 15-1/16 (383) 23 (584) 4 (102)† 166 (75) 24 (610)
066155 24-1/2 (622) 22-7/8 (581) 15-1/16 (383) 23 (584) 4 (102)† 175 (79) 24 (610)
*135 and 155 size furnaces require a 5 or 6-in. (127 or 152 mm) vent. Use a vent adapter between furnace and vent stack. See Installation Instructions for
complete installation requirements.

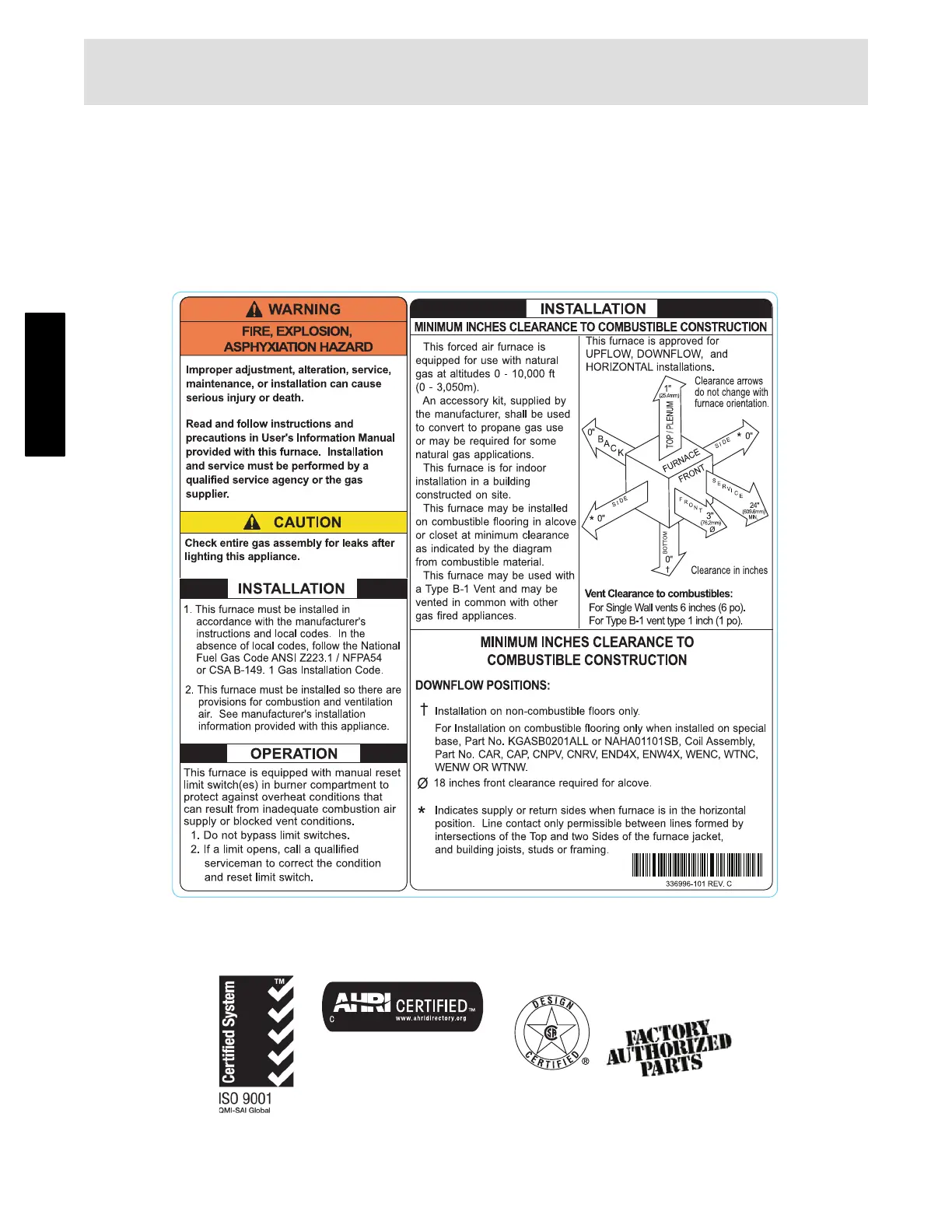

CLEARANCE TO COMBUSTIBLES
