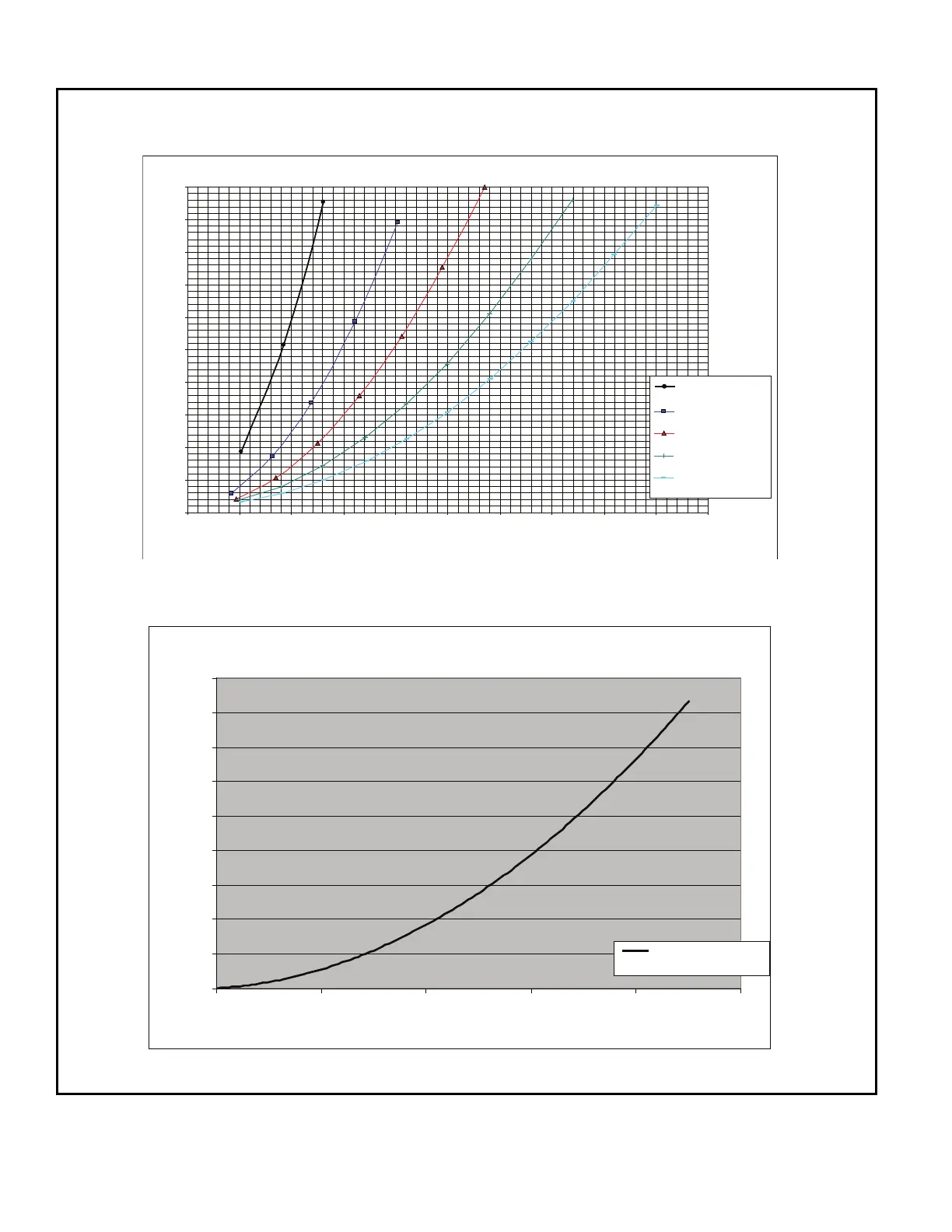

ACCESSORY PRESSURE DROPS, BAROMETRIC RELIEF AND POWER EXHAUST PERFORMANCE
BAROMETRIC RELIEF FLOW CAPACITY
MANUAL DAMPER PERFORMANCE
Manual Damper Performance
0.00
0.05
0.10
0.15
0.20
0.25
0.30
0.35
0.40
0.45
0.50
0 500 1000 1500 2000 2500 3000 3500 4000 4500 5000
AIRFLOW (CU FT/MIN)
STATIC PRESSURE (in. wg)
1 inch open
2 inches open
3 inches open
4 inches open
5 inches open
Barometric Relief Flow Capacity
0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
0 1000 2000 3000 4000 5000
Relief Flow (CFM)
Return Duct Static Pressure (in. wg)
Vertical Economizer,
15 - 25 Ton
PERFORMANCE DATA (CONT)
