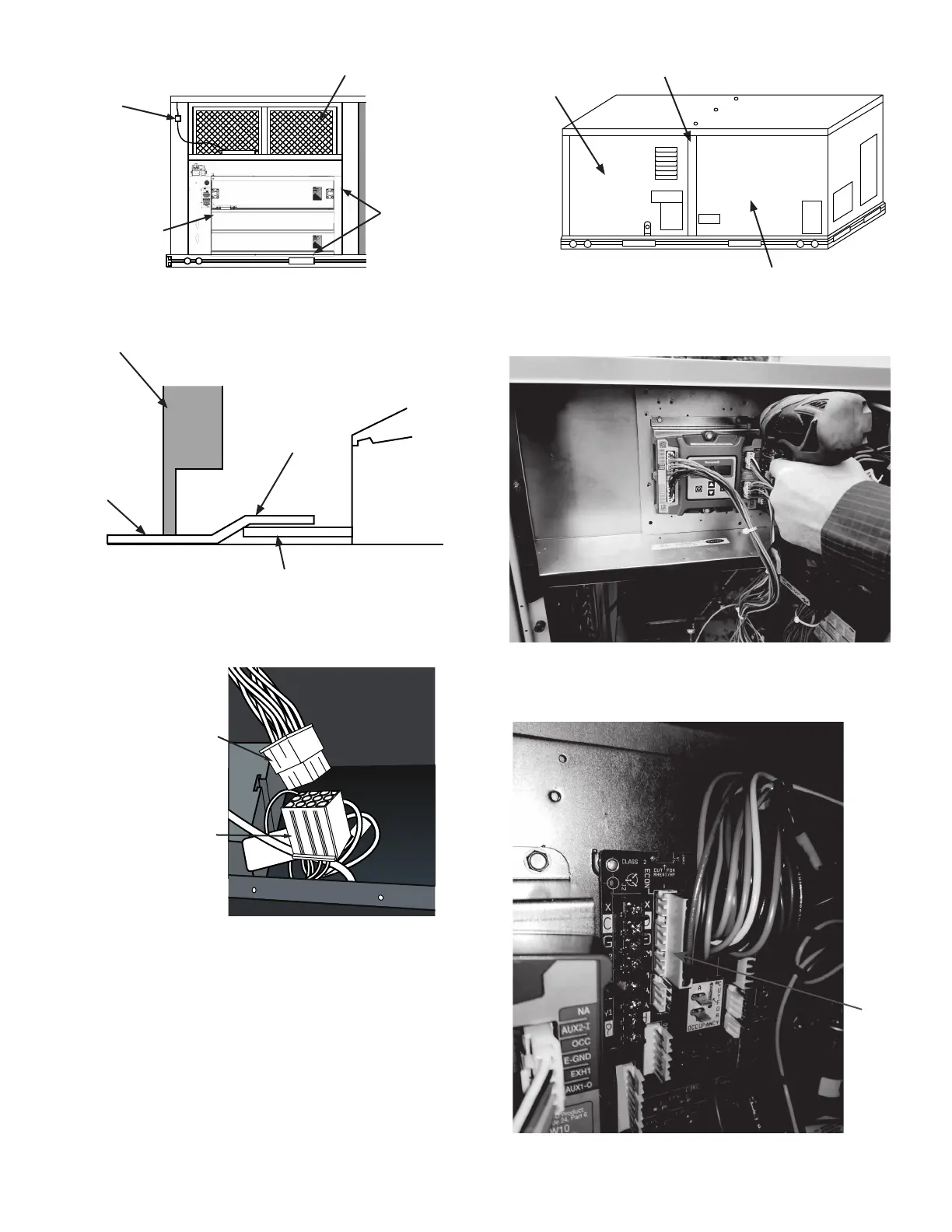

Fig. 3 — EconoMi$er
®
X Assembly Installed on HVAC
Unit (CRECOMZR067A01 Shown)
Fig. 4 — EconoMi$er X Flange Installation
(CRECOMZR067A01 and CRECOMZR069A01)
Fig. 5 — Connect EconoMi$er X Harness to Unit PL6
Economizer Harness
Fig. 6 — Typical Indoor Fan Motor Access Panel
Locations
NOTE: Some control box configurations may differ.
Fig. 7 — Mount Controller Assembly in Unit Control
Box
Fig. 8 — Unplug ECON Plug from Central Terminal
Board (CTB)
HVAC Unit Filters
Insert
Screw in
EconoMi$er X
Flanges
Wiring
Harness
EconoMi$er X
Unit Filter
Rack
Unit Base
Economi$er X
Hold Down Tab
Economi$er X Rear Flange
Economi$er X
Rooftop Unit’s
12-Pin Male Plug
EconoMi$er X
12-Pin Female Plug
Indoor Fan Motor
Access Panel
Unit Control
Box Panel(S)
Center Post
Unplug
ECON Plug
