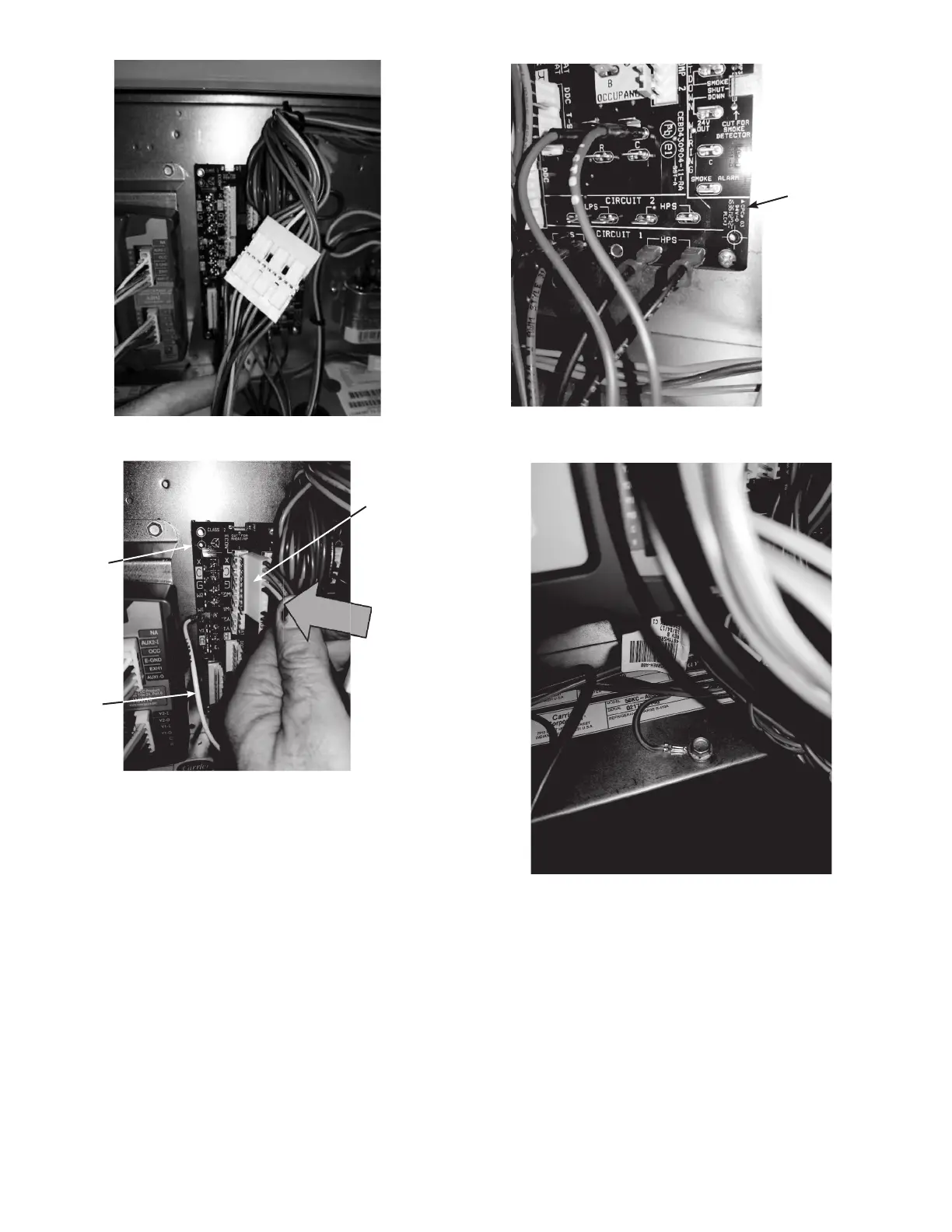

Fig. 9 — Connect 10-pin Plugs Together
Fig. 10 — Connect 10-Pin Plug to Central Terminal
Board
Fig. 11 — Connect Red and Brown Wires to Central
Terminal Board
Fig. 12 — Connect Ground Wire From Controller
Central
Terminal
Board
White
Wire
10-Pin
Female
Plug from
Controller
Central
Terminal
Board
