FIELD-INSTALLED ACCESSORY DESCRIPTION AND
USAGE (cont)
Lifting Bracket Kit — Provides attachment point for rigging
straps.
SUGGESTED USE:
• When unit needs to be lifted or moved. The kit is not required
when unit is equipped with optional base rail or downflow
application.
High- and Low-Pressure Switches — Protect the unit from
running at unsuitable pressures.
SUGGESTED USE:
• Provides additional safety features when needed.
CONTENTS
Page
Model Description .................................3
ARI Cooling Capacities .............................4
Heating Capacities and Efficiencies ...................4
Dimensional Drawings ............................5-10
Specifications ..................................11,12
Selection Procedure ..............................13
Net Cooling Capacities ..........................14-16
Air Delivery ....................................17,18
Electrical Data ...................................20
Operating Sequence ..............................21
Typical Field Wiring .............................22-24
Typical Installation ................................25
Application Data .................................25
Engineers’ Specification Guide ......................26

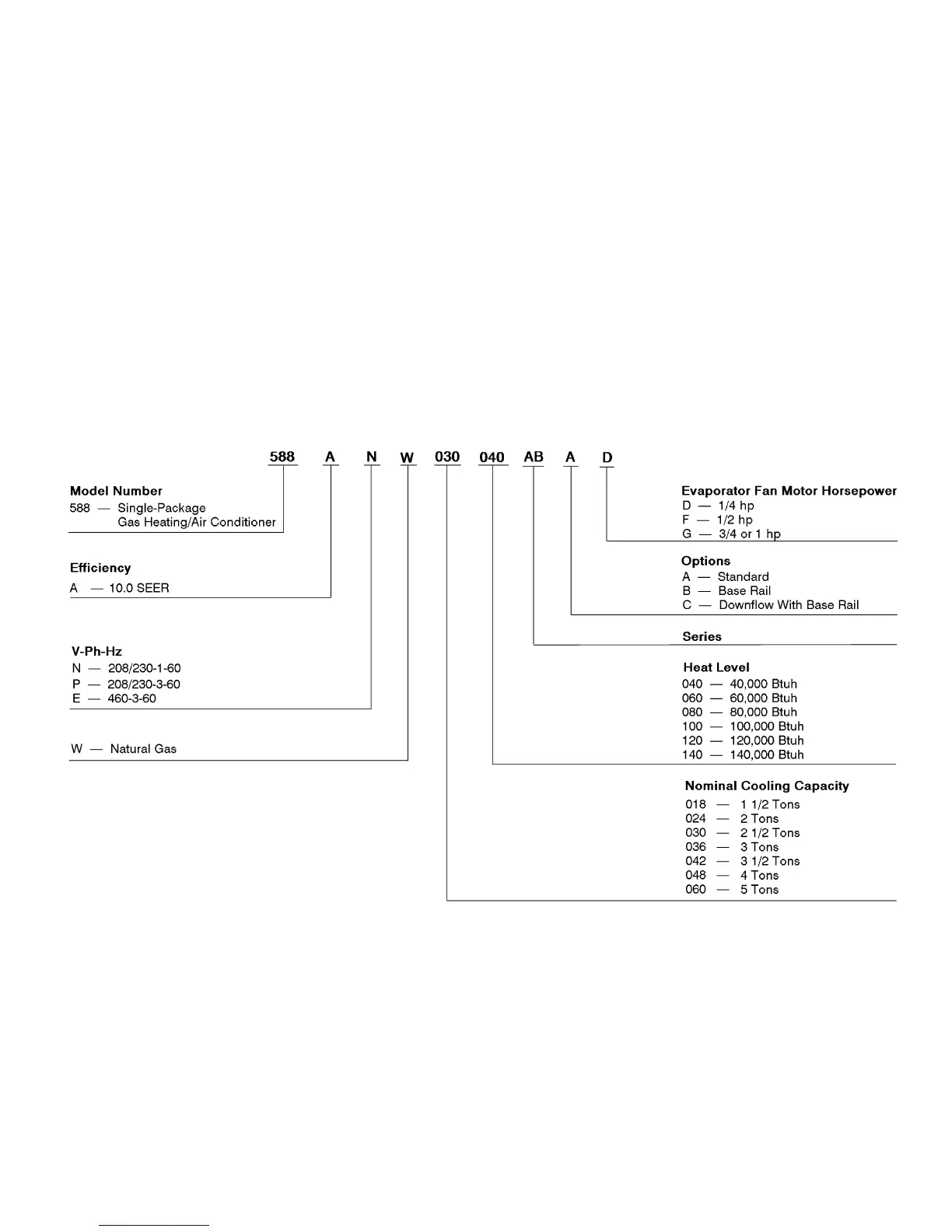

MODEL DESCRIPTION
