SG-619AHB-01: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
37
DISASSEMBLY INSTRUCTIONS
Front Panel
NOTE: This part is for reference only and the photos may differ from your actual unit.

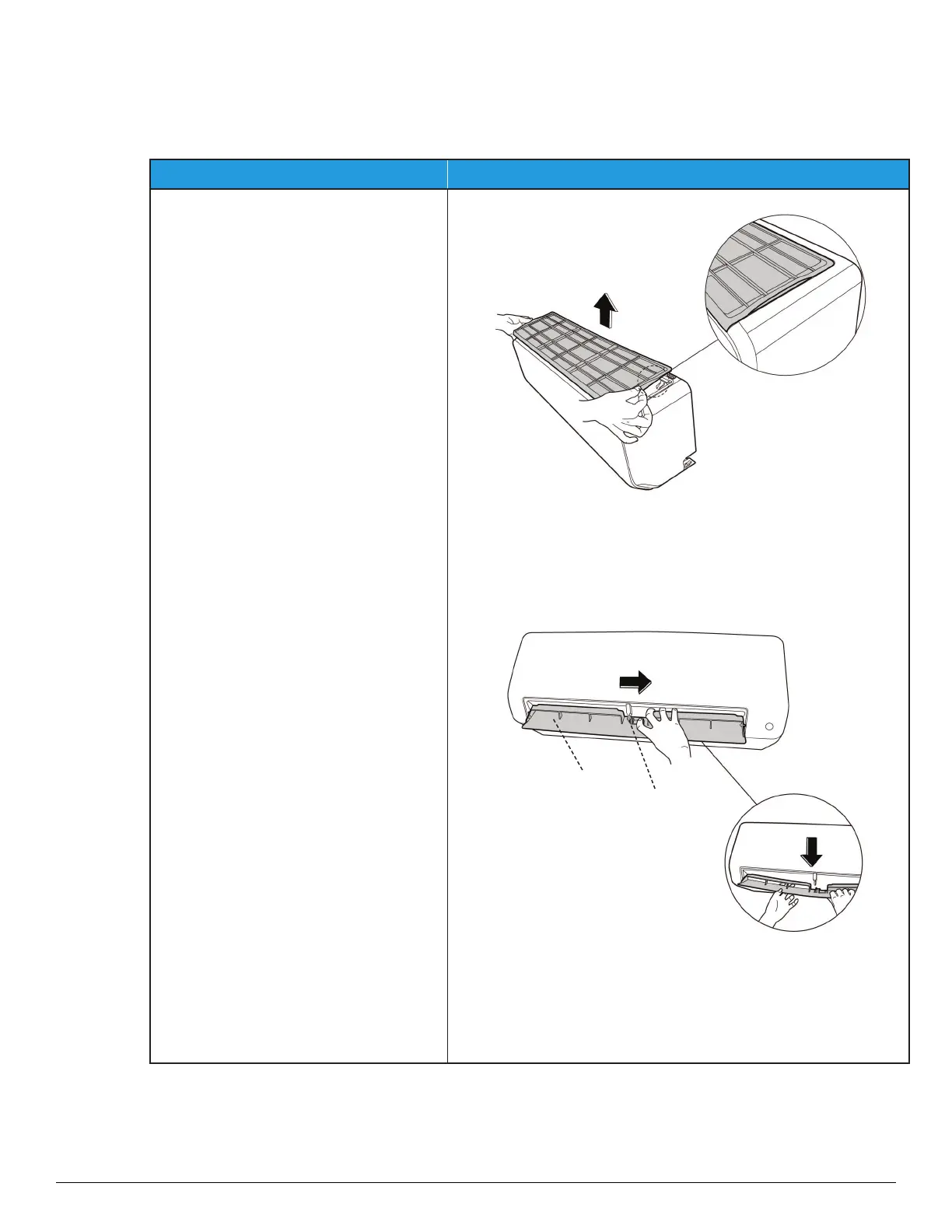

Procedure Illustration
1) Place your hands along the filter’s sides,
pull the filter gently along the vertical
direction, and then remove it.
2) Open the horizontal louver and push
the locker towards the right to open.
3) Bend the horizontal louver slightly to
loosen the hooks, then remove the
horizontal louver.
Hook
Horizontal Louver
To Next Page
