SG-619AHB-01: Service Manual
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
4

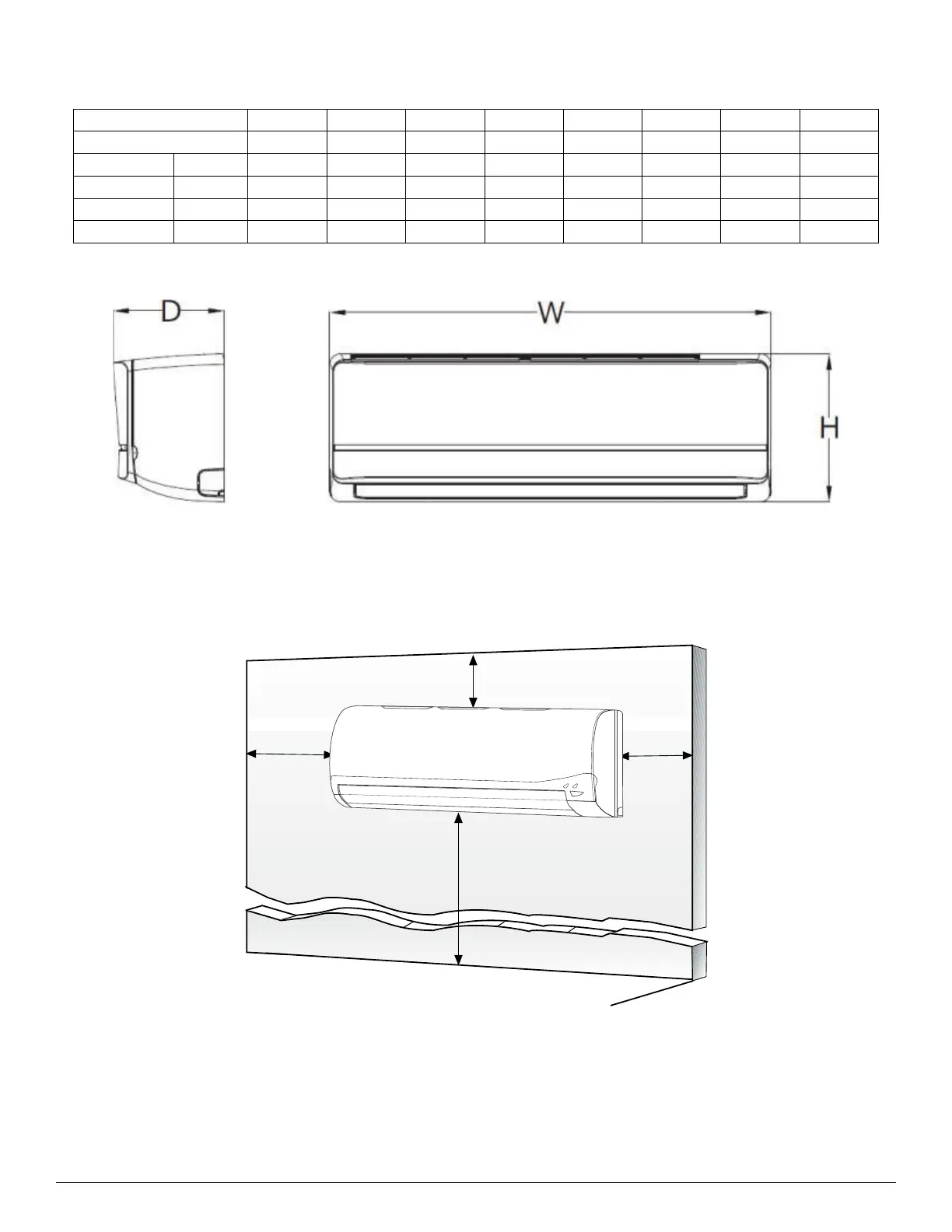

DIMENSIONS
Table 4 — Dimensions
Fig. 1 — Indoor Unit
CLEARANCES
Fig. 2 — Clearances
UNIT SIZES 12K 6K 9K 12K 18K 24K 30K 36K
Voltages 115V 208/230V 208/230V 208/230V 208/230V 208/230V 208/230V 208/230V
Height (H) in (mm) 11.61 (295) 11.61 (295) 11.61 (295) 11.61 (295) 12.56 (319) 14.57 (370) 14.57 (370) 14.57 (370)
Width (W) in (mm) 31.3 (795) 31.3 (795) 31.3 (795) 31.3 (795) 37.99 (965) 44.88 (1140) 44.88 (1140) 44.88 (1140)
Depth (D) in (mm) 8.86 (225) 8.86 (225) 8.86 (225) 8.86 (225) 9.41 (239) 10.83 (275) 10.83 (275) 10.83 (275)
Net Weight lbs (kgs) 22.93 (10.4) 22.71 (10.3) 22.71 (10.3) 22.93 (10.4) 27.12 (12.3) 43.65 (19.8) 43.65 (19.8) 43.65 (19.8)
6
"
(0.15m
)
min.
5
"
(0.13m)
min.
6'
5
"
(0.13m)
min.
(1.8m)
CEILING
FLOOR
