26 Specifications subject to change without notice. SM619PHA-03

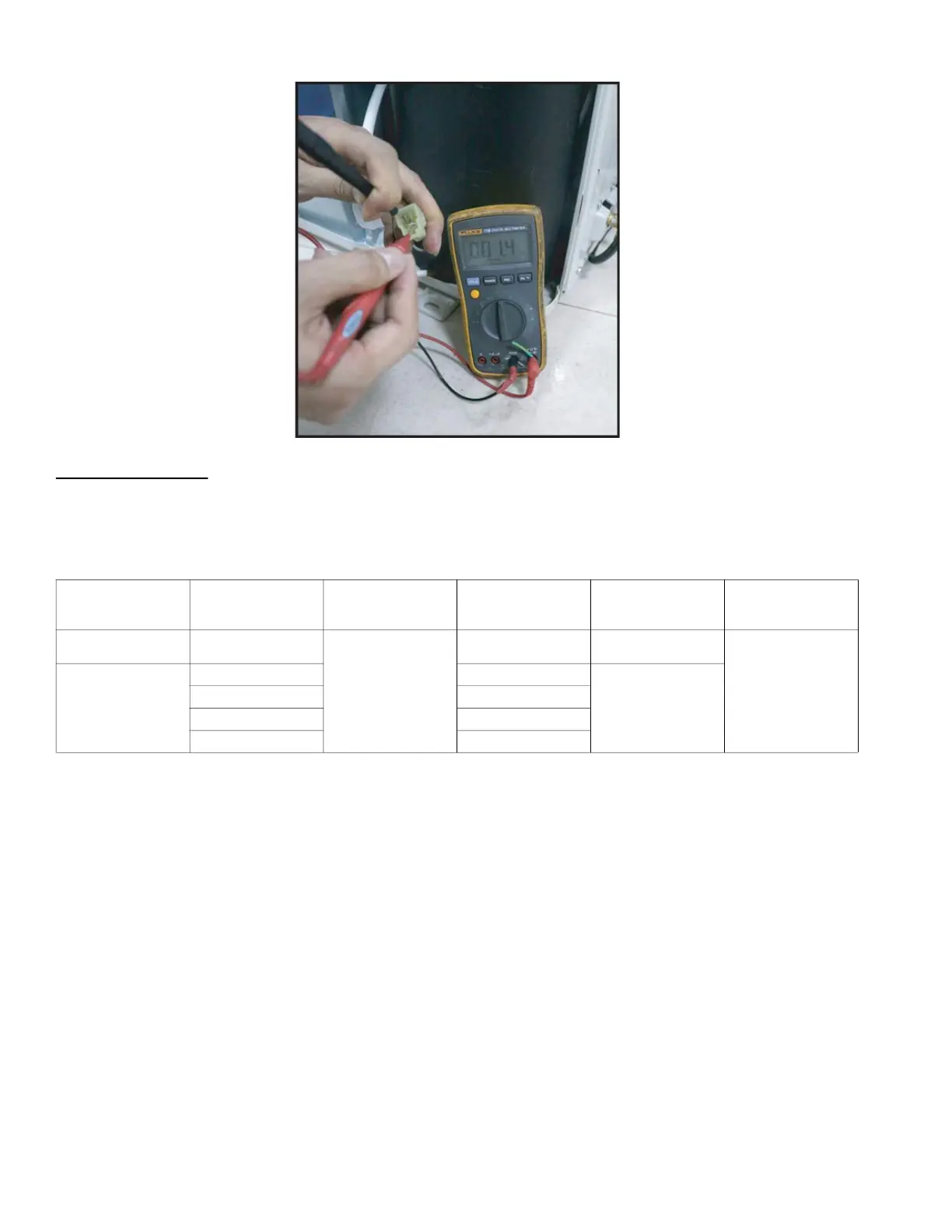

IPM Continuity Check

Turn off the power. Allow the large capacity electrolytic capacitors to discharge completely, and dismount the IPM. Use a digital tester to

measure the resistance between P and UVWN; UVW and N.

Table 18 — IPM Continuity Check

Digital Tester

Normal Resistance

Value

Digital Tester

Normal Resistance

Value

(+) Red (-) Black

∞

(Several M

(+) Red (-) Black

∞

(Several M

N U

U V

V W

W (+) Red
