SM619PHA-03 Specifications subject to change without notice. 11

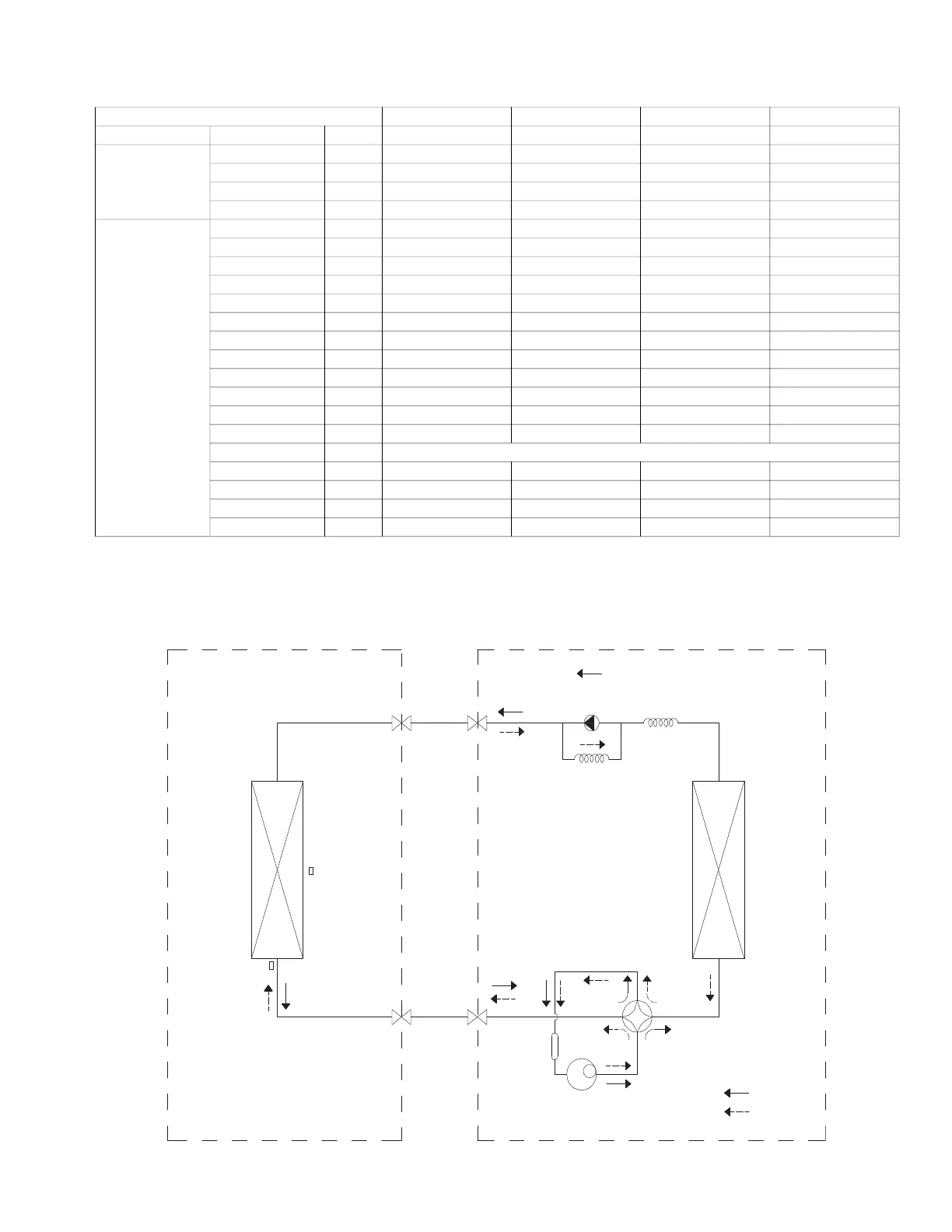

FAN AND MOTOR SPECIFICATIONS
Table 6 — Fan and Motor Specifications
REFRIGERATION CYCLE DIAGRAM
Fig. 7 — Heat Pumps
HIGH WALL UNIT SIZE 9K 12K 18K 24K
(208/230V) (208/230V) (208/230V) (208/230V)
HIGH WALL FAN
Material glass fiber+AS glass fiber+AS glass fiber+AS glass fiber+AS
Type GL-108*670-IN GL-108*670-IN GL-118*955-I GL-118*955-I
Diameter In (mm) 4.25 (108) 4.25 (108) 4.65（118） 4.65（118）
Height In (mm) 26.38 (670) 26.38 (670) 37.6（955） 37.6（955）
HIGH WALL
FAN MOTOR
Model ZKFP-20-8-6-7 ZKFP-20-8-6-7 ZKFP-58-8-1-5 ZKFP-58-8-1-5
Volts V 208/230 208/230 208/230 208/230
Phase 1 1 1 1
Hertz 60 60 60 60
FLA 0.034 0.034 0.5 0.5
Type DC DC DC DC
Insulation class E E E E
Safe class IPX0 IPX0 IP40 IP40
Input W 50 50 58 58
Output W 20 20 60 60
Range of current Amps 0.023 0.023 0.1~0.48 0.1~0.48
Rated current Amps 0.023±10% 0.023±10% 0.65 0.65
Capacitor µF No Capacitor
Rated HP HP 0.027 0.027 0.082 0.082
Speed rev/min 1000/850/650 1050/900/650 1700/1660/1350 1700/1660/1350
Rated RPM rev/min 1000 1050 1700 1700
Max. input W 70 70 125 125
LIQUID SIDE
GAS SIDE
HEAT
EXCHANGE
(EVAPORATOR)
HEAT
EXCHANGE
(CONDENSER)
COMPRESSOR
ïWAY VALVE
ïWAY VALVE
ïWAY VALVE
COOLING
HEATING
T2 Evaporator
temp. sensor
T1 Room temp.
sensor
ACCUMULATOR
ROODTUOROODNI
CHECK VALVE
(Heating Model only)
CAPILLARY TUBE
