Bryant 619PHA Series - Indoor Unit 09 K-12 K Evaporator Disassembly

46 Specifications subject to change without notice. SM619PHA-03
Indoor Unit Sizes 09K-12K (Evaporator)
noitartsullIerudecorP

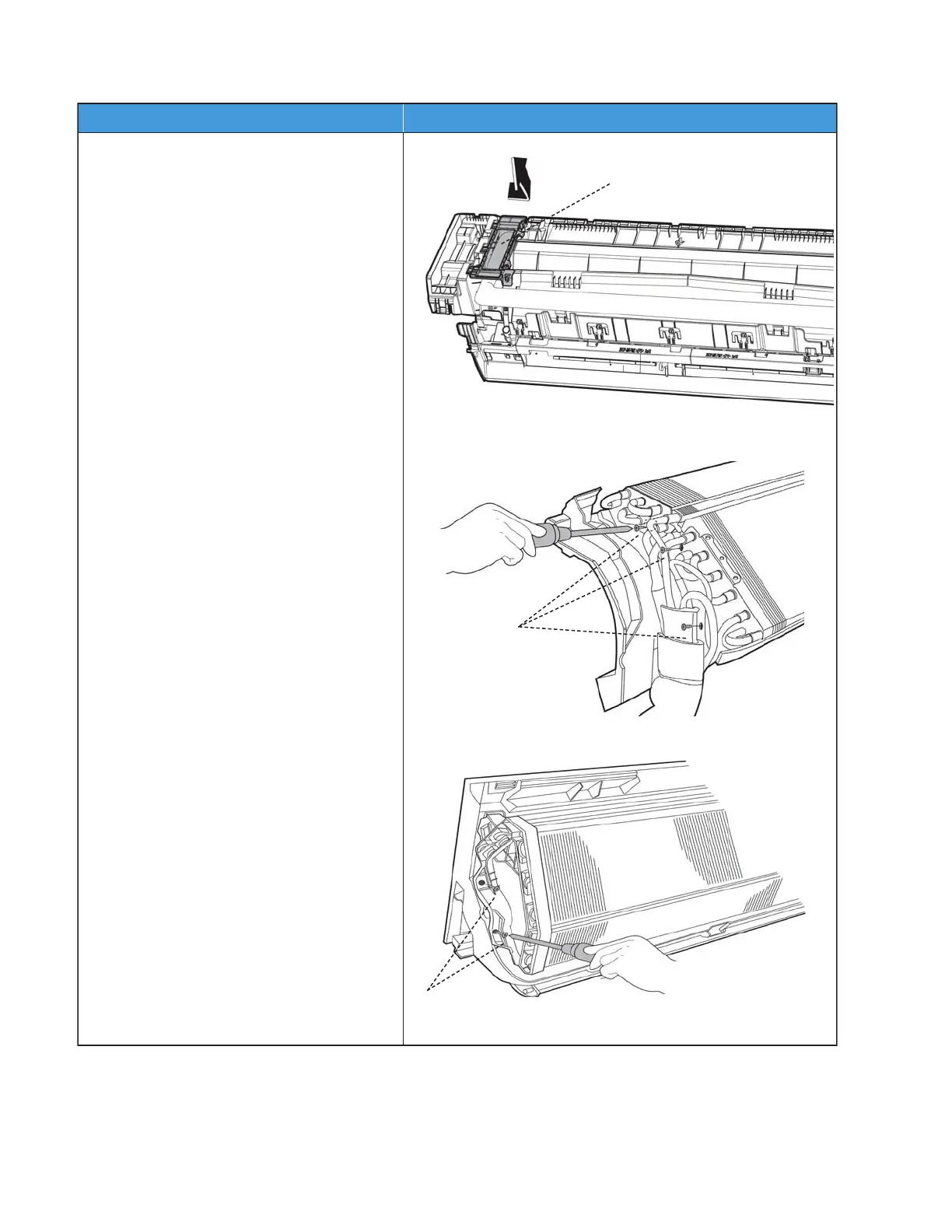

1) Disassemble the pipe holder located at the
rear of the unit.
2) Remove the screws (3) on the evaporator
located on the fixed plate.
3) Remove the screws (2) on the evaporator
located at the base of the bearing side.
Pipe Holder
Screws
Screws
