LONG LINE GUIDELINE
Refer to Residential Piping and Long Line Guideline for air conditioner
and heat pump systems using Puron refrigerant or Long Line Guideline
for R-22 Air Conditioners and Heat Pumps.
CABINET ASSEMBLY
Basic Cabinet Designs
Certain maintenance routines and repairs require removal of the cabinet
panels. There are 3 basic cabinet designs for air conditioning and heat
pumps. Each design tier has options of standard or dense grills. (See
Fig. 2).
A210698B

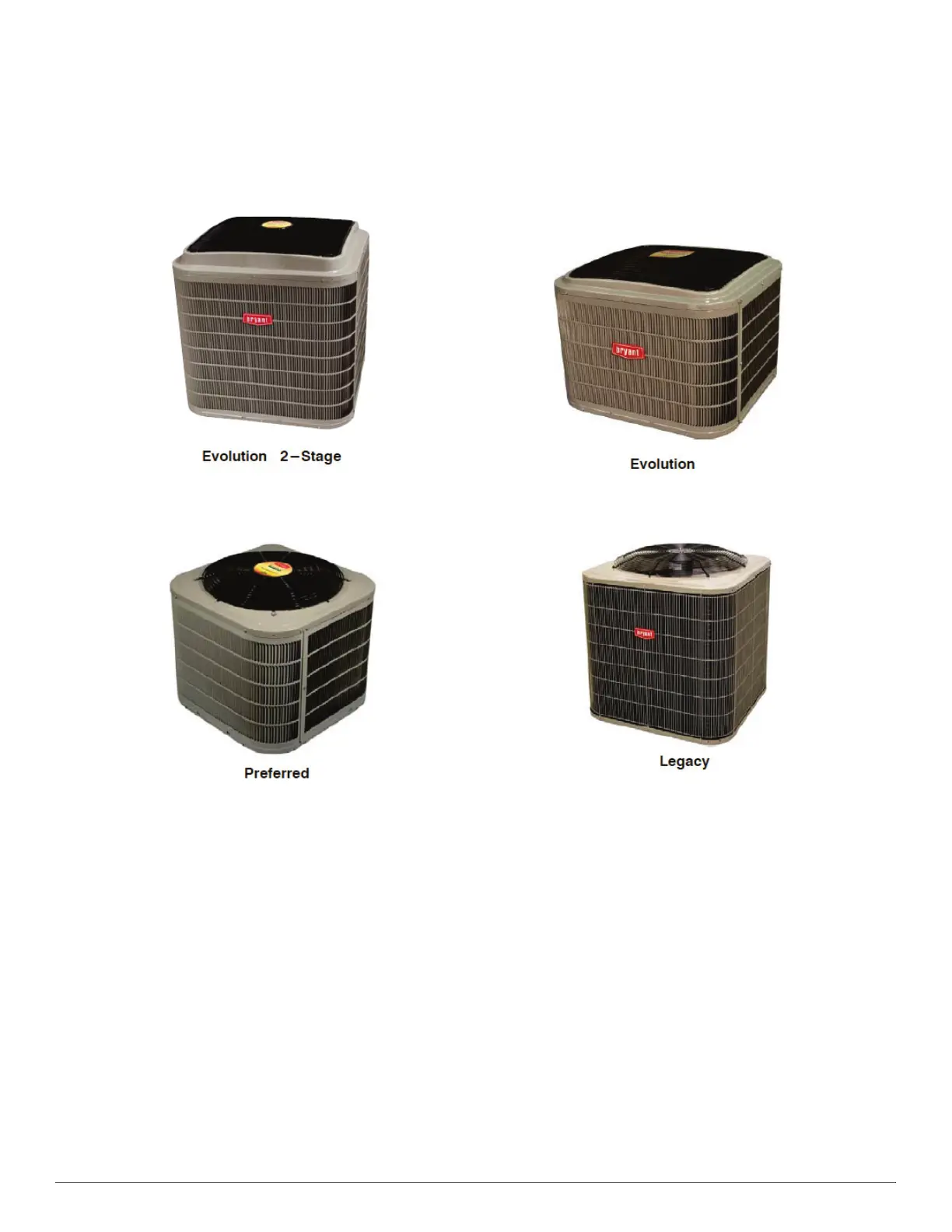

Fig. 2 – Cabinet Designs
