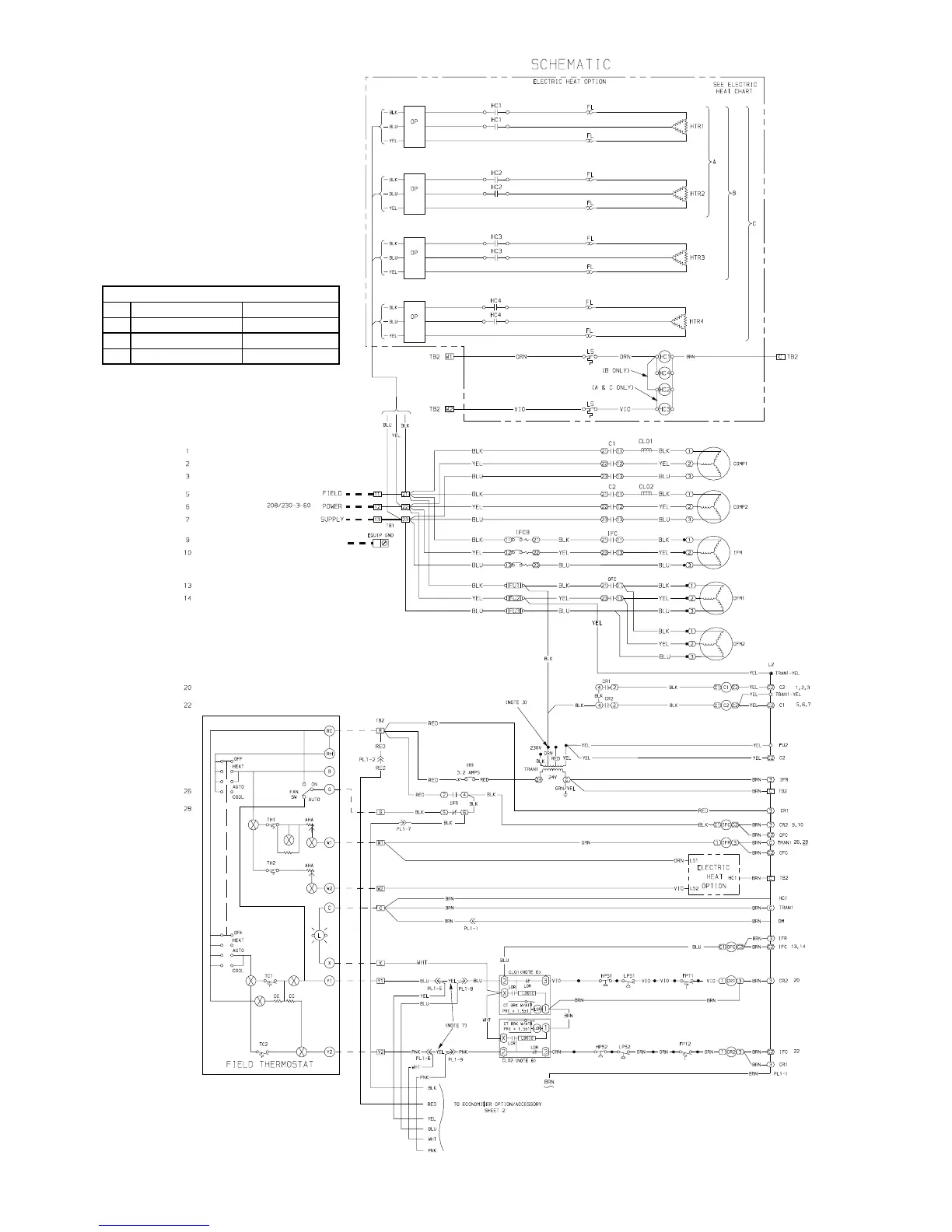

Fig. 38 — Typical Wiring Schematic (558F240, 208/230-3-60 Shown)
ELECTRIC HEAT
208/240 v Amps 200/230 v kW
A
71.3/82.3 25.7/34.2
B
117/135 42.2/56.1
C
156/180 56.2/74.8
