Bryant Evolution Extreme 191VAN - Utility Interface with Evolution Connex Control; Evolution Green Communications (COMM) Light

191VAN Evolution™ Extreme Variable Speed Air Conditioner: Installation Instructions
Manufacturer reserves the right to change, at any time, specifications and designs without notice and without obligations.
15
Utility Interface With Evolution™ Connex™ Control
The utility curtailment relay should be wired between the two UTIL
connections on the control board for this Evolution™ Communicating
System (see Fig. 25). This input allows a power utility device to
interrupt compressor operation during peak load periods. When the
utility sends a signal to shut the system down, the Evolution™
Connex™ System Control will display: “Curtailment Active”. See
Evolution™ Connex™ System Control installation instructions for setup
details.
Evolution™ Green Communications (COMM) Light
A green LED (COMM light) on the outdoor board (see Fig. 26) indicates
successful communication with the other system products. The green
LED will remain OFF until communication is established. Once a valid
command is received, the green LED will turn ON continuously. If no
communication is received within 2 minutes, the LED will be turned
OFF until the next valid communication.
A230529

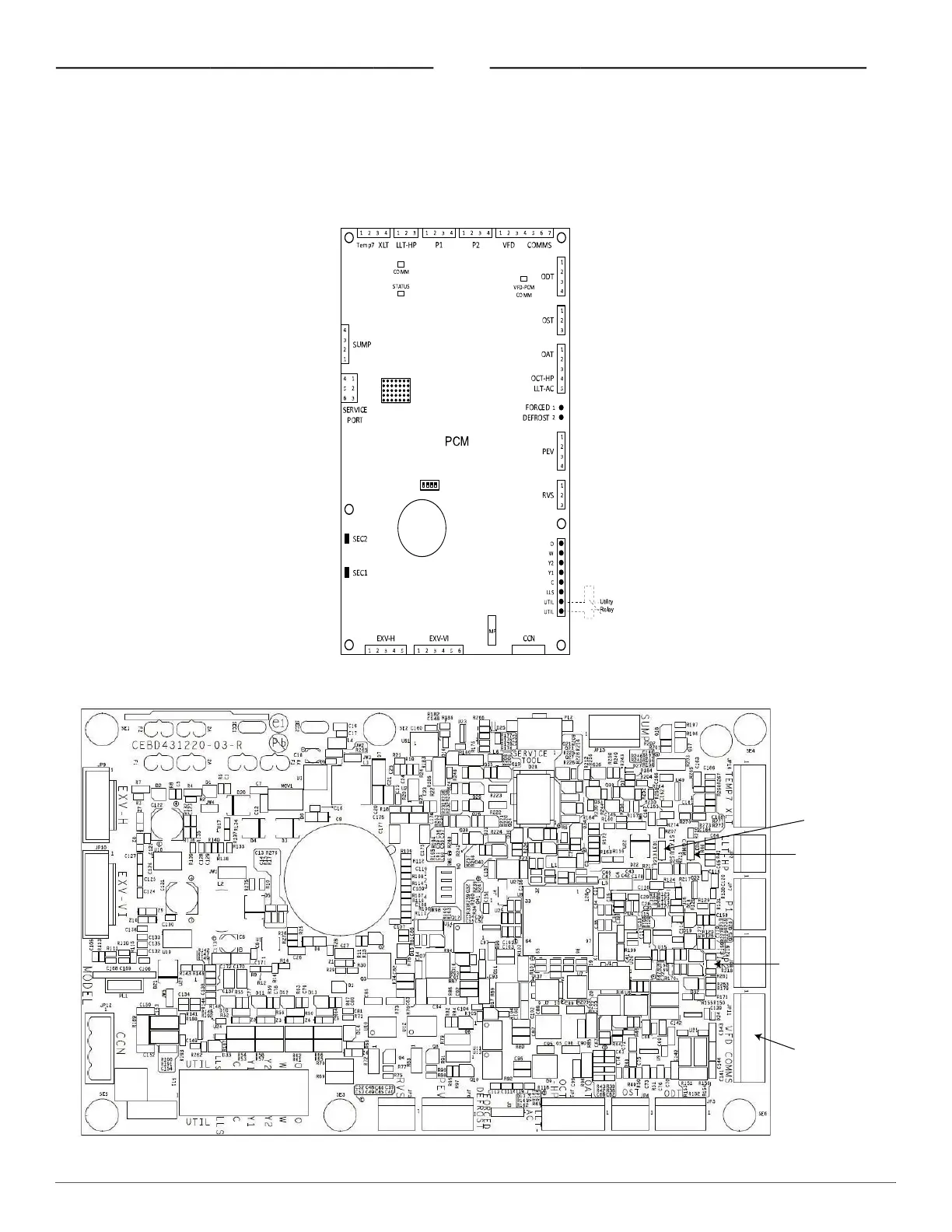

Fig. 25 – Primary Control Board with optional Utility Relay
HK38EA069
Fig. 26 – Primary Control Board
VFD-PCM
Communication Port
VFD LED (Red / Green)
CCN Communication
LED (Green)
Status LED
(Yellow)
