Bryant PLUS 95S User Manual

10

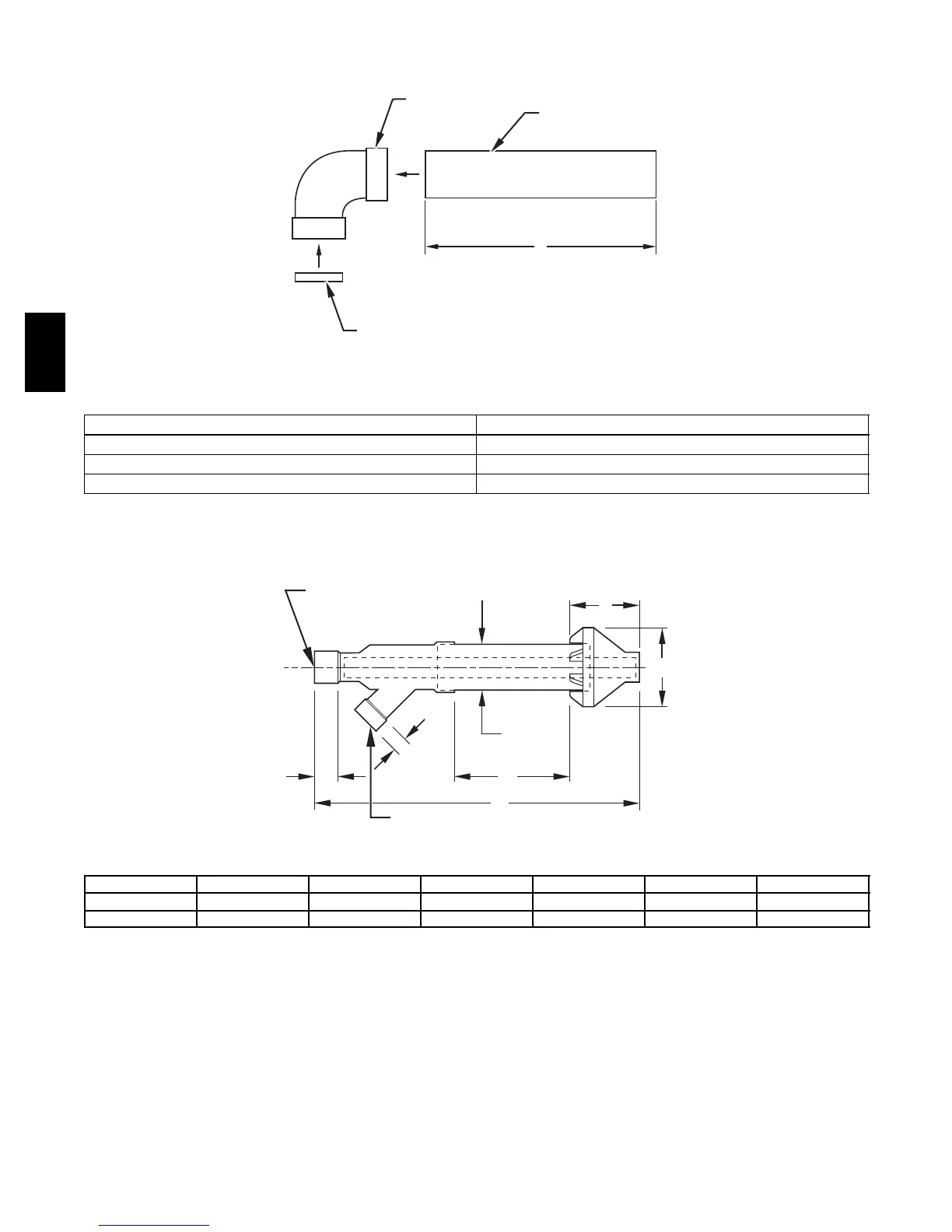

COMBUSTION--AIR PIPE FOR NON--DIRECT (1--PIPE) VENT APPLICATION (SIZES 040
THROUGH 120 ONLY)
FIELD-SUPPLIED
2-IN. (51 mm) DIA.
PVC PIPE
FIELD-SUPPLIED
2-IN. (51 mm) DIA.
PVC 90° ELBOW
COMBUSTION-AIR DISC
(FACTORY-SUPPLIED IN
LOOSE PARTS BAG)
A
A96211
Length of Straight Pipe Portion of Combustion Air I nlet Pipe Assembly --- In. (mm)
CASING WIDTH A
17 1/2 (444.5) 8 1/2+/--- 1/2 (215.9 +/--- 12.7)
21 (533.4) 10 1/2 +/--- 1/2 (266.7 +/--- 12.7)
24 1/2 (622.3) 12 +/--- 1/2 (304.8 +/--- 12.7)
CONCENTRIC VENT (DIRECT VENT / 2--PIPE ONLY) (ALL MODEL SIZES)
C IN. DIA
B IN. DIA PVC
VENT/EXHAUST
1
3
/ 16
B IN. DIA PVC
INTAKE/COMBUSTION AIR
D
E
F
A
1
1
/2
DIMENSIONS (IN / MM)
KITPARTNO. A* B C D{ E F
KGAVT0701CVT 33--- 3/8 / 847.7 2 / 50.8 3 ---1/2 / 88.9 16--- 5/8 / 422.3 6---1/4 / 158.8 5--- 3/4 / 146.1
KGAVT0801CVT 38--- 7/8 / 987.4 3 / 78.2 4---1/2 / 114.3 21--- 1/8 / 536.6 7---3/8 / 189.3 6--- 1/2 / 165.1
* Dimension A will change proportionally as dimension D is lengthened or shortened.
{ Dimension D may be l engthened to 60 in. (1524 mm) maximum. Dimension D may also be shor ten ed by cutting the pipes provided in the kit to 12 in. (304.8
mm) minimum.
A97110
355CAV

Bryant PLUS 95S Specifications

General

Blower Motor	Variable-speed
Gas Valve	Two-stage
Fuel Type	Natural Gas
Heating Capacity	40, 000 to 120, 000 BTU/h
Warranty	10-year parts limited warranty upon registration
Efficiency Rating	95% AFUE
