ELECTRICAL DATA
UNIT SIZE 042060 042080 060080 060100 060120
U N I T V O LT S --- H E R T Z --- P H A S E 1 1 5 --- 6 0 --- 1
OPERATING VOLTAGE RANGE (Min --- Max)* 104 --- 127
MAXIMUM UNIT A MPS 8.96 8.96 14.06 14.06 14.06
MINIMUM WIRE SIZE 14 14 12 12 12
MAXIMUM WIRE LENGTH (Ft)‡ 30 30 31 31 31
MAXIMUM FUSE OR CKT BKR (Amps)** 15 15 20 20 20
TRANSFORMER (24v) 40va
EXTERNAL CONTROL POWER AVAILABLE Heating 18va
Cooling 34va
*Permissible limits of the voltage range at which the unit will operate satisfactorily.
‡Length shown is as measured one way along wire path between unit and service panel for maximum 2% voltage drop.
**Time---delay type is recommended.

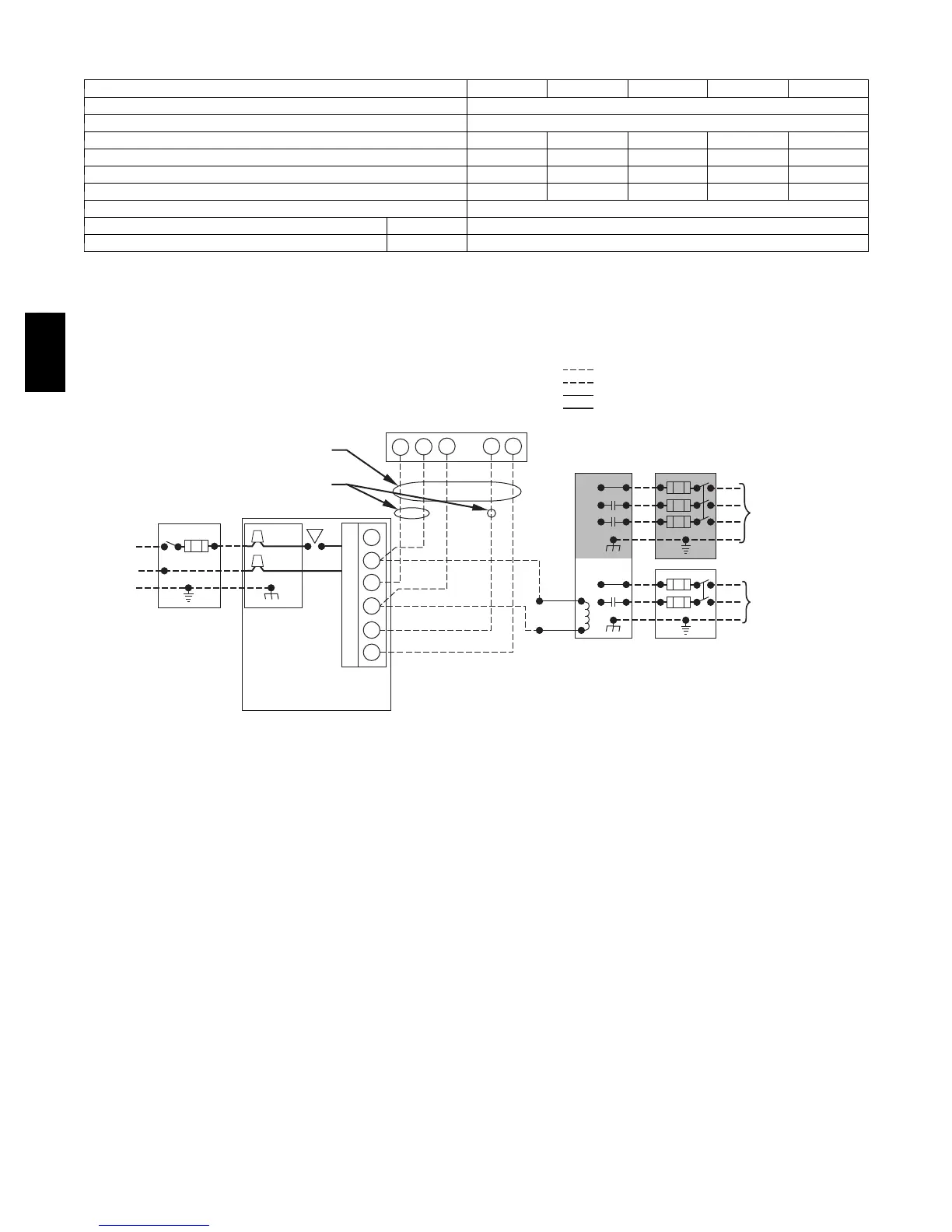

TYPICAL WIRING SCHEMATIC
115-VOLT FIELD-
SUPPLIED
FUSED
DISCONNECT
JUNCTION
BOX
CONTROL
BOX
24-VOLT
TERMINAL
BLOCK
THREE-WIRE
HEATING-
ONLY
FIVE
WIRE
NOTE 2
NOTE 1
1-STAGE
THERMOSTAT
TERMINALS
FIELD-SUPPLIED
FUSED DISCONNECT
CONDENSING
UNIT
FURNACE
COM
R
WCY RG
GND
GND
FIELD 24-VOLT WIRING
FIELD 115-, 208/230-, 460-VOLT WIRING
FACTORY 24-VOLT WIRING
FACTORY 115-VOLT WIRING
Connect Y/Y2-terminal as shown for proper operation.
Some thermostats require a "C" terminal connection as shown.
If any of the original wire, as supplied, must be replaced, use
same type or equivalent wire.
208/230- OR
460-VOLT
THREE
PHASE
208/230-
VOLT
SINGLE
PHASE
WHT
BLK
WHT
BLK
W/W1
W2
Y/Y2
G
NOTES: 1.
2.
3.
A95236
355CAV

Bryant PLUS 95S Specifications

General

Blower Motor	Variable-speed
Gas Valve	Two-stage
Fuel Type	Natural Gas
Heating Capacity	40, 000 to 120, 000 BTU/h
Warranty	10-year parts limited warranty upon registration
Efficiency Rating	95% AFUE
