Bryant Preferredt Series - Page 14

12
A07226

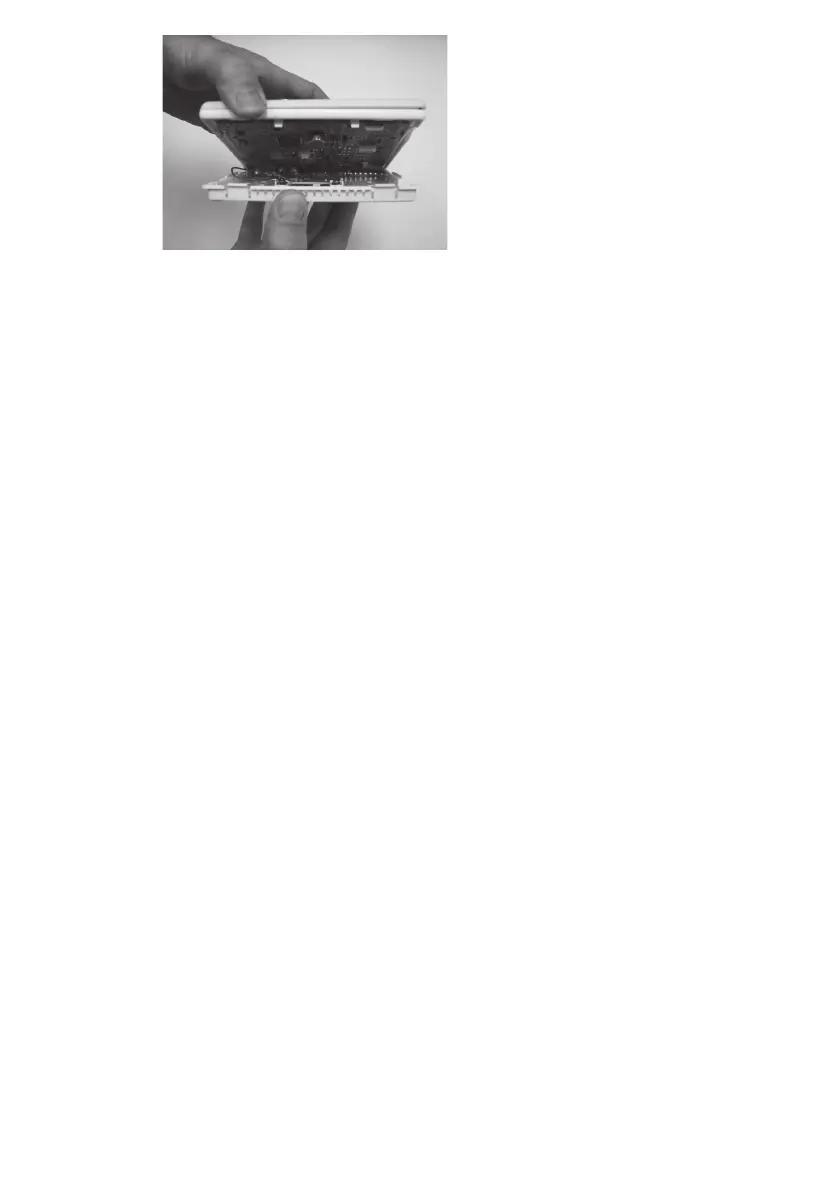

Fig. 6 - Take Apart
2. Route wires through large hole in mounting base. Level mounting base
against wall (for aesthetic value only—Display Module need not be leveled
for proper operation) and mark wall through 4 mounting holes. To avoid
unintended bending of wall plate plastic, use all 4 screws and anchors. See
Fig. 7.
