Bryant Preferredt Series - Two-Piece Installation

11
Two- Piece Installation
The following steps should be followed for the installation of the two- piece
configuration.
NOTE: The 2-wire pigtail is not intended to support the weight of the User
Interface. Do not hang the User Interface from the equipment Control Module
screw terminals.
1. Remove mounting plate from back of Display Module by pressing the two
tabs on the bottom edge and pulling away. See Fig. 5 and 6.
A07225

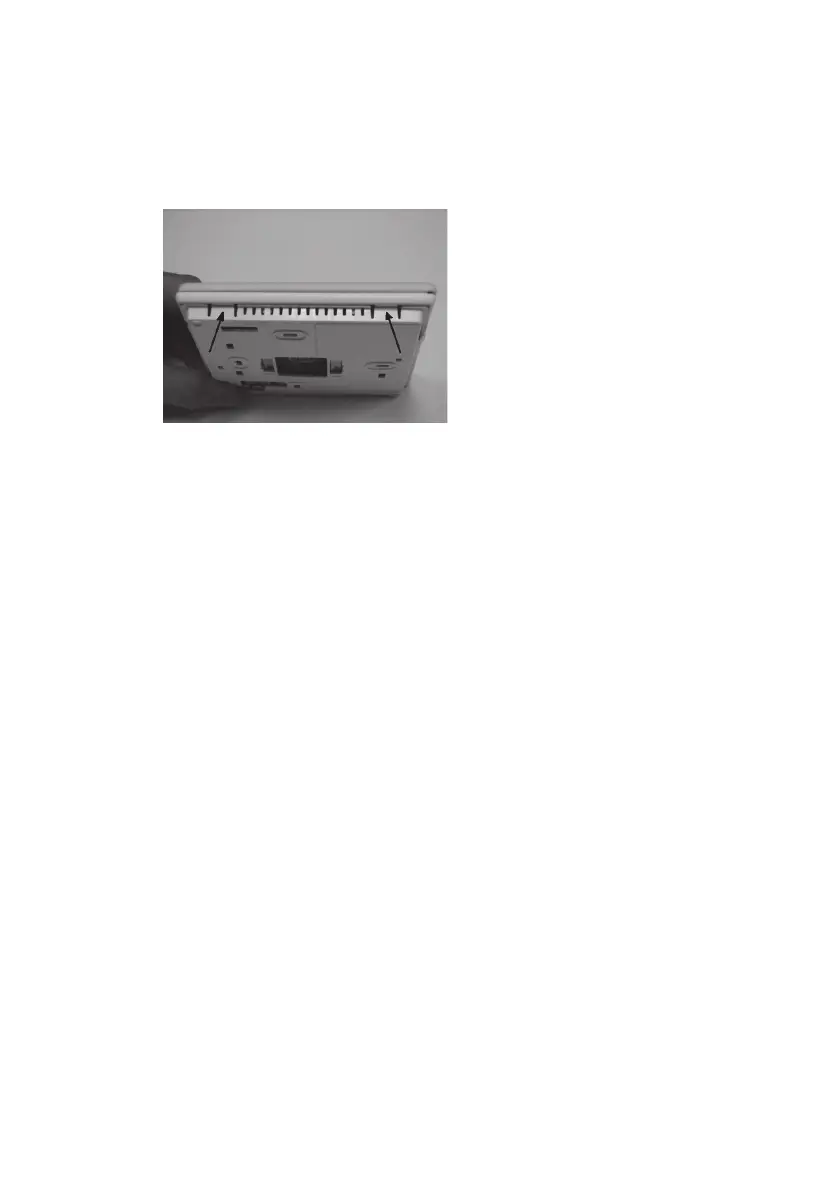

Fig. 5 - Press Tabs to Remove Backplate
