8
ACmV
+Hz
, dBm
+Hz
(TBM829 only), Hz
+ACmV
functions

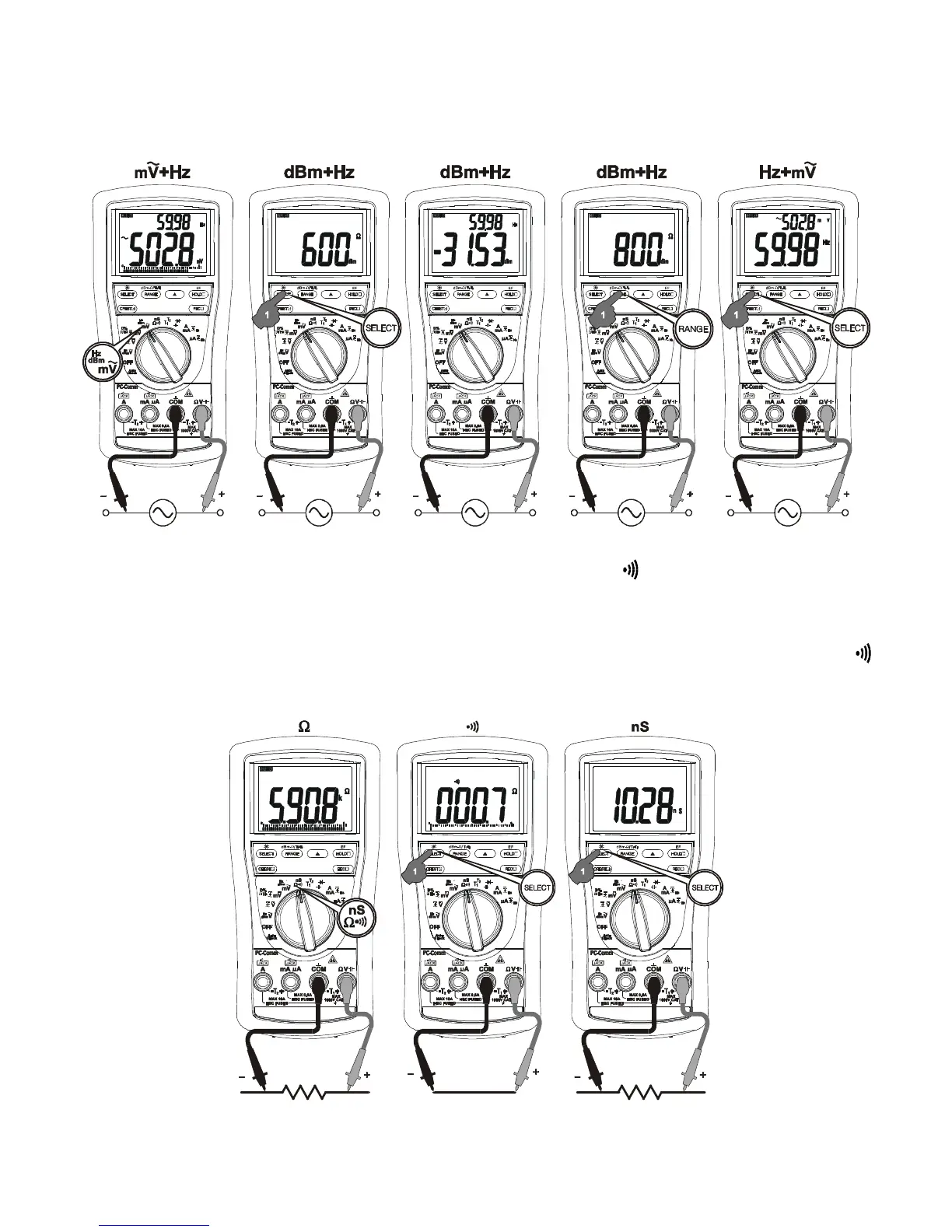

Press the SELECT button momentarily to select the subject functions in sequence. Last
selection will be saved as power up default for repeat measurement convenience.
nS Conductance (TBM525 & TBM829 only), Resistance, Continuity functions
Press the SELECT button momentarily to select the subject functions in sequence for
models 525, 521, 829 and 827. Last selection will be saved as power up default for repeat
measurement convenience. Direct rotary switch selection on Resistance and
Continuity functions for models 822 and 821.
Note:
Conductance is the inverse of Resistance, that is S=1/ or nS=1/G. It virtually extends
the Resistance measurements to the order of Giga-Ohms for leakage measurements.
